| General | ||
| Type | DDR5 | |
| Basic Information | ||
| Supported CPU | Supports Intel Core Ultra Processors (Series 2)<br> LGA 1851 | |
| Form Factor | ATX<br> 243.84mmx304.8mm | |
| Audio | Realtek ALC897 Codec<br> 7.1-Channel High Definition Audio | |
| Special Feature | 4x EZ Debug LED | |
| Expansion Slots | ||
| PCI | 4x PCI-E x16 slot<br> PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)<br> PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)<br> PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)<br> PCI_E4 Gen PCIe 4.0 supports up to x4 (From CPU)<br> | |
| M.2 Socket | 3x M.2<br> M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices<br> M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices<br> M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices<br> | |
| Memory Specifications | ||
| Slots | 4x UDIMM | |
| Supported Memory | Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency:<br> • 1DPC 1R Max speed up to 8800+ MT/s<br> • 1DPC 2R Max speed up to 7200+ MT/s<br> • 2DPC 1R Max speed up to 6400+ MT/s<br> • 2DPC 2R Max speed up to 5600+ MT/s<br> Supports Intel POR Speed and JEDEC Speed<br> Supports Memory Overclocking and Intel® XMP 3.0<br> Supports Dual-Controller Dual-Channel mode<br> Supports Non-ECC, Un-buffered memory<br> Supports CUDIMM<br> | |
| Chipset | ||
| Chipset | INTEL Z890 | |
| Graphics | ||
| Graphics | 1x HDMI<br> Support HDMI 2.1, maximum resolution of 4K 60Hz*<br> 1x DisplayPort<br> Support DisplayPort 1.4, maximum resolution of 4K 60Hz*<br> 1x Type-C DisplayPort<br> Thunderbolt 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*<br> | |
| Motherboard | ||
| Supported Storage | 3x M.2<br> M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices<br> M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices<br> M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G | |
| Connectivity | ||
| HDMI | 1x HDMI 2.1 | |
| Connector & Ports | ||
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices<br> Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices | |
| Display Port (s) | 1x DisplayPort<br> 1x Type-C DisplayPort<br> Thunderbolt 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz | |
| USB (s) | 4x USB 2.0 (Front)<br> 6x USB 5Gbps Type A (Rear)<br> 2x USB 5Gbps Type A (Front)<br> 1x USB 20Gbps Type C (Rear)<br> 1x USB 20Gbps Type C (Front)<br> | |
| LAN Port (s) | Realtek 8125D 2.5Gbps LAN | |
| Wireless Communication module | Intel Wi-Fi 7<br> The Wireless module is pre-installed in the M.2 (Key-E) slot<br> Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps<br> Supports 802.11 a/ b/ g/ n/ ac/ ax/ be<br> Supports Bluetooth 5.4**, MLO, 4KQAM | |
| Audio | 1x Front Audio (JAUD) | |
| Internal I/O Ports | 1x Thunderbolt5 card connector(JTBT5, support RTD3)<br> 1x Power Connector(ATX_PWR)<br> 2x Power Connector(CPU_PWR)<br> 1x Power Connector(PCIE_PWR 8pin)<br> 1x CPU Fan<br> 1x Combo Fan (Pump_Sys Fan)<br> 4x System Fan<br> 1x EZ Conn-header (JAF_1)<br> 2x Front Panel (JFP)<br> 1x Chassis Intrusion (JCI)<br> 1x Front Audio (JAUD)<br> 1x Tuning Controller connector(JDASH)<br> 3x Addressable V2 RGB LED connector (JARGB_V2)<br> 1x RGB LED connector(JRGB)<br> 1x TPM pin header(Support TPM 2.0)<br> 4x USB 2.0 ports<br> 2x USB 5Gbps Type A ports<br> 1x USB 20Gbps Type C ports | |
| Warranty Information | ||
| Warranty | 3 Year warranty | |

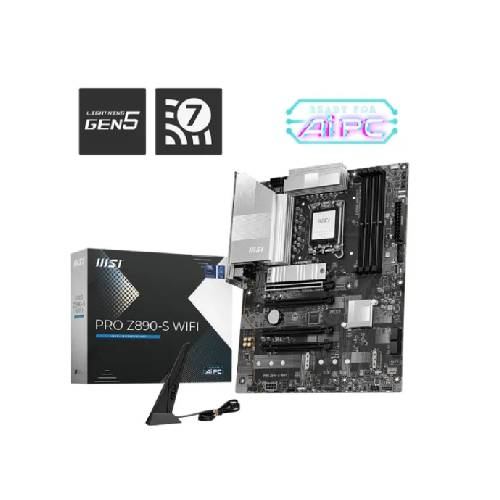

The MSI PRO Z890-S WIFI LGA 1851 ATX Motherboard is a high-performance, feature-rich motherboard designed for professionals and enthusiasts seeking top-tier computing power and connectivity. Built to support the latest Intel Core Ultra Processors (Series 2) on the LGA 1851 socket, it leverages the robust Intel Z890 chipset to deliver unmatched processing and multitasking capabilities. Its ATX form factor, measuring 243.84mm x 304.8mm, ensures ample space for advanced components while maintaining compatibility with standard PC cases. This motherboard is equipped with four DDR5 memory slots, supporting up to 256GB of RAM with overclocking frequencies reaching 8800+ MT/s. It accommodates dual-channel and dual-controller configurations, supports Intel XMP 3.0, and ensures stable memory performance for demanding applications. For storage, the PRO Z890-S WIFI provides three M.2 slots, including PCIe 5.0 support for ultra-fast NVMe SSDs, and four SATA 6Gb/s ports. RAID 0, 1, 5, and 10 configurations are supported for both SATA and NVMe storage devices. Graphics connectivity is versatile, offering HDMI 2.1, DisplayPort 1.4, and a Type-C DisplayPort with Thunderbolt 4 support, enabling resolutions up to 8K@60Hz. Expansion options include four PCIe slots, with PCIe 5.0 and PCIe 4.0 compatibility, allowing users to install multiple GPUs or high-speed expansion cards. Networking is powered by Realtek 2.5Gbps LAN and Intel Wi-Fi 7, providing ultra-fast wired and wireless connectivity. Bluetooth 5.4 is included for seamless peripheral integration. Audio is handled by the Realtek ALC897 codec with 7.1-channel high-definition sound. Additional features include multiple RGB headers, EZ Debug LEDs for easy troubleshooting, and extensive internal I/O ports for fans, pumps, and other peripherals. Backed by MSI’s 3-year warranty, the PRO Z890-S WIFI ATX motherboard combines speed, reliability, and modern connectivity, making it an ideal foundation for gaming, content creation, or high-performance professional setups.
The latest price of MSI PRO Z890-S WIFI LGA 1851 ATX Motherboard in Bangladesh is 37,300৳ You can buy the MSI PRO Z890-S WIFI LGA 1851 ATX Motherboard at best price from our Website or visit any of our showrooms.
