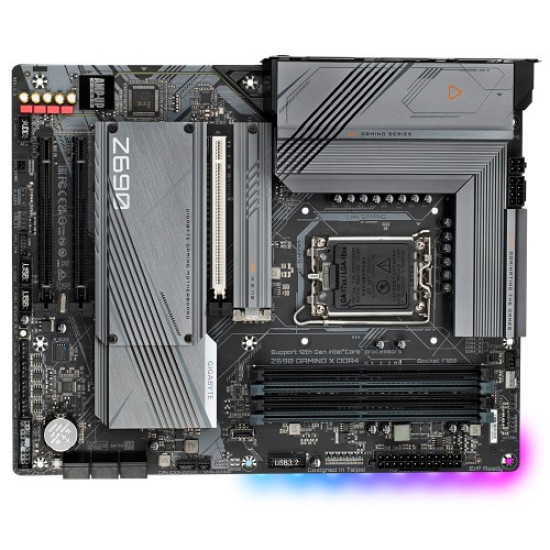

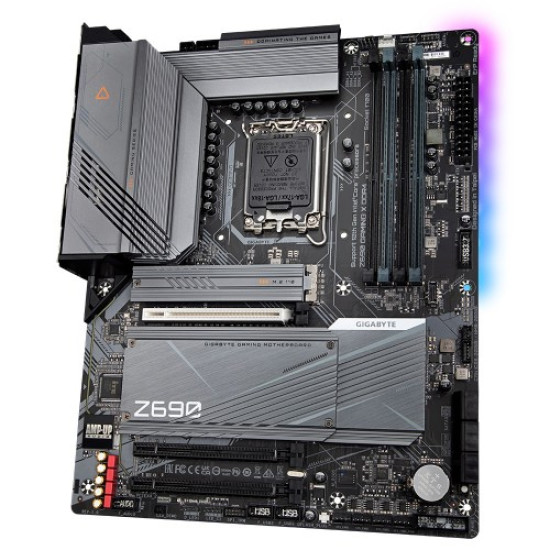

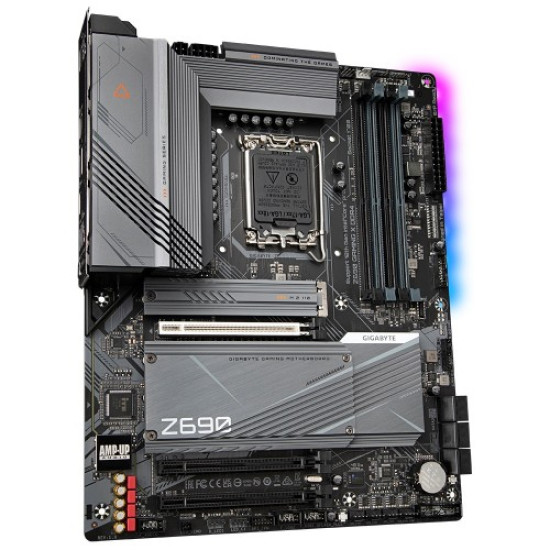

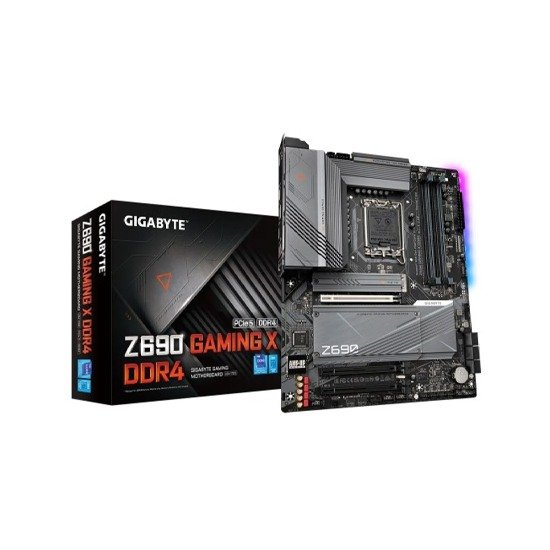

Gigabyte Z690 GAMING X DDR4 12th Gen ATX Motherboard

Name: Gigabyte Z690 GAMING X DDR4 12th Gen ATX Motherboard
Brand: Gigabyte
SKU: 88791
Price: 27000.00 BDT
Availability: OutOfStock
Rating: 5 (1 reviews)

Gigabyte Z690 GAMING X DDR4 12th Gen ATX Motherboard

Stock: In Stock
Brand: Gigabyte
Model: Z690 GAMING X DDR4
SKU: 88791

Based on 1 reviews. - Write a review

27,000৳

Ex Tax: 27,000৳

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

Key Features

- Chipset Intel Z690
- Generation 12th13th
- Memory Max 128GB
- Memory Slot 4

View more details

Basic Information
Supported CPU	LGA1700 socket: Support for 12th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors L3 cache varies with CPU
Chipset	Intel Z690 Express Chipset
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Audio	Realtek ALC1220-VB CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2-channel analog output Support for S/PDIF Out 7.1-channel digital signals
Expansion Slots
PCI	1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 5.0 standard.) 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2) (The PCIEX4 slots conform to PCI Express 3.0 standard.)
M.2 Socket	4 x Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Enlarged Thermal Guards
Memory Specifications
Type	DDR4
Slots	4 x DIMM
Supported Memory	Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Max. Memory	Up to 128 GB (32 GB single DIMM capacity)
Graphics
Graphics	Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
Connector & Ports

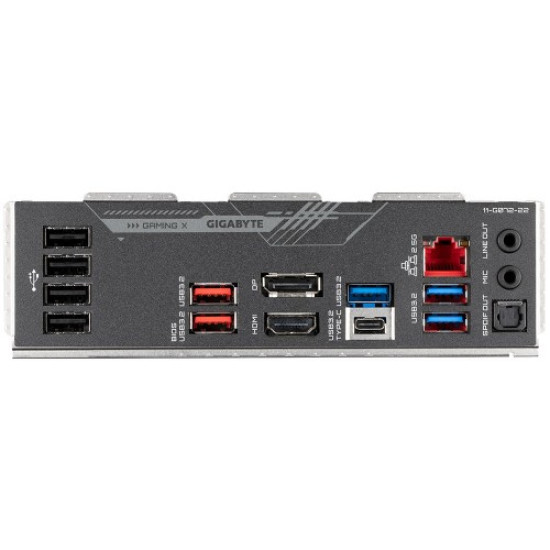

USB (s)	Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage	CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 * Refer to "2-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel Optane Memory Ready * System acceleration with Intel Optane Memory can only be enabled on the M.2 connectors supported by the Chipset.
Audio	1 x front panel audio header
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset button 1 x reset jumper 1 x Q-Flash Plus button 1 x Clear CMOS jumper
Others Information
Special Features	Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
Warranty Information
Manufacturing Warranty	3 years

Gigabyte Z690 GAMING X DDR4 12th Gen ATX Motherboard

The Gigabyte Z690 GAMING X DDR4 12th Gen ATX Motherboard is a powerful and feature-packed motherboard designed to unleash the full potential of Intel’s 12th Gen processors. Built on the ATX form factor, it offers a robust and stable platform for gamers, content creators, and PC enthusiasts. With support for DDR4 memory, this motherboard allows for high-speed performance and multitasking efficiency without breaking the bank. Equipped with advanced thermal solutions, reinforced PCIe slots, and ultra-fast connectivity options, the Z690 GAMING X ensures smooth gameplay and seamless system operation. It supports PCIe 5.0 graphics cards, multiple M.2 NVMe SSDs, and high-speed USB interfaces for lightning-fast data transfer. Its sleek design, enhanced audio features, and customizable RGB lighting make it not just a powerhouse for performance but also a visually striking component for any gaming rig. Whether you’re aiming to build a high-end gaming system or a versatile workstation, the Gigabyte Z690 GAMING X DDR4 delivers reliability, speed, and exceptional functionality.

Advanced Key Features, Special Benefits & Buying Guide of Gigabyte Z690 GAMING X DDR4 12th Gen ATX Motherboard

Choosing the right motherboard is crucial for maximizing your system’s performance. The Gigabyte Z690 GAMING X DDR4 offers cutting-edge features and benefits tailored for gamers and power users.

Supports 12th Gen Intel Core processors with LGA1700 socket for enhanced computing power.
Dual-channel DDR4 memory support up to 5333 MHz (OC) for smooth multitasking.
PCIe 5.0 slot support for next-generation graphics cards and expansion devices.
Multiple M.2 NVMe SSD slots with thermal guards for fast storage and heat protection.
Advanced thermal design with enlarged heatsinks and smart fan control for optimal cooling.
High-quality audio capacitors and dedicated audio noise guard for immersive sound.
Gigabit Ethernet and high-speed USB 3.2 Gen 2x2 ports for ultra-fast connectivity.
Reinforced PCIe slots to prevent GPU sag and ensure long-term durability.

This motherboard not only delivers superior performance but also ensures stable operation and longevity. When buying, make sure your system supports DDR4 memory and the ATX form factor to fully utilize its features. Upgrade your gaming rig or workstation with confidence.
