| SPECIFICATIONS |
| Brand | Corsair |
| Series | iCUE 5000X |
| Model | CC-9011213-WW |
| Physical Details |
| Colour | White |
| Materials | Steel |
| Plastic |
| Side Panel | Tempered Glass |
| I/O Ports | 2x USB 3.0 Type-A |
| 1x USB 3.1 Type-C |
| Audio I/O |
| Power Button |
| Reset Button |
| Motherboard Support | E-ATX (305 x 277 mm), ATX, Micro-ATX, Mini ITX |
| Expansion Slots | 7 2 Vertical |
| Drive Bays | 4x 2.5" Drive Brackets |
| 2x 3.5" Drive Bays |
| PSU Support | ATX |
| Dimensions | 520 x 245 x 520 mm |
| Weight | 13.84 kg (net) |
| Pre-Installed Fans |
| Front | 3x 120 mm Corsair SP RGB Elite |
| Fan Support |
| Front | 3x 120 mm | 2x 140 mm |
| Top | 3x 120 mm | 2x 140 mm |
| Rear | 1x 120 mm |
| Motherboard Tray | 3x 120 mm |
| Radiator Support |
| Front | 1x 280 mm | 1x 360 mm* |
| Rear | 1x 120 mm |
| Top | 1x 280 mm | 1x 360 mm* |
| Motherboard Tray | 1x 240 mm | 1x 360 mm* |
| *Motherboard tray and front 360 mm locations cannot be used at the same time when installing radiators |
| Clearance |
| PSU | 225 mm |
| CPU Cooler Height Limitation | 170 mm |
| GPU Length Limitation | 420 mm |
| Cable Management | 25 mm (Behind the Motherboard) |
| General |
| Dust Filters | Front, Top, PSU, Motherboard Tray |
| Features | Solid steel front panel |
| Corsair RapidRoute cable management system |
| Includes three 120 mm Corsair SP RGB Elite fans, each equipped with eight individually addressable RGB LEDs. |
| Fully control and synchronize the RGB lighting for up to six fans out-of-the-box |
| iCUE Lighting Node Core and Corsair iCUE software. |
| Concentrated Airflow |
| Motherboard tray with customizable fan mounts |
| Package Contents | 5000X Case |
| Quick Start Guide |
| Accessory Box |
| Warranty Information |
| Warranty | 3 Year Warranty
|
A CLEAN START TO A GREAT BUILD

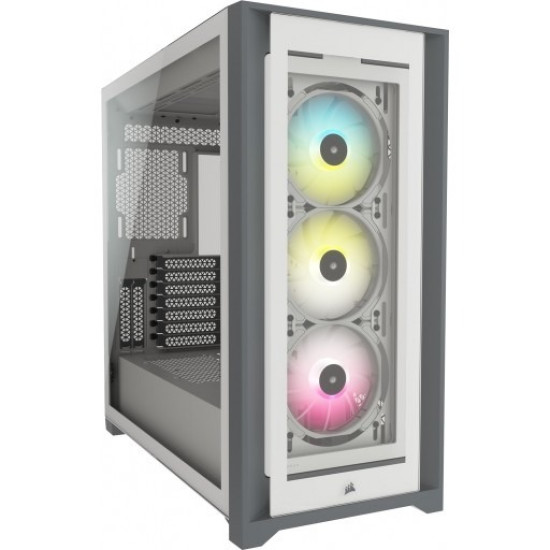

The CORSAIR iCUE 5000X RGB is a mid-tower ATX case that shows off your PC, and not its cables, behind four stunning tempered glass panels. Easily route major cables through a single channel for clean builds with CORSAIR RapidRoute design and 25mm of routing depth. A wealth of flexible cooling options let you build your PC your way, including room to mount up to 10x 120mm fans or multiple 360mm radiators, and a motherboard tray with customizable side fan mounts. Three included 120mm SP RGB ELITE fans deliver enhanced cooling and vibrant lighting. Complete with room for four storage drives and a modern front I/O panel including a USB-C port, the 5000X RGB makes for a clean build that keeps its cool.
FOUR TEMPERED GLASS PANELS
The 5000X RGB makes a stunning, showpiece-worthy PC easy to build and easier to keep cool with the space and flexibility to mount multiple 360mm radiators, all surrounded by beautiful tempered glass on four sides. The 5000X RGB makes a stunning, showpiece-worthy PC easy to build and easier to keep cool with the space and flexibility to mount multiple 360mm radiators, all surrounded by beautiful tempered glass on four sides. CORSAIR SP RGB ELITE fans utilize AirGuide anti-vortex vanes to concentrate airflow and enhance cooling. Each fan is equipped with eight individually addressable RGB LEDs for brilliant lighting. House your system behind tool-free tempered glass, highlighting your components and RGB lighting.
CORSAIR RAPIDROUTE CABLE MANAGEMENT SYSTEM
The RapidRoute cable managing system makes it simple and fast to route your major cables through a single hidden channel, with a roomy 25mm of space behind the motherboard for all of your cables. The CORSAIR Black iCUE 5000X RGB case can fit up to 3 x 2.5" SSDs and 2x 3.5" HDDs, with the included SSD trays.
MODERN FRONT PANEL I/O
The up to date fron panel puts your connections within easy reach, including a USB 3.1 Type-C Port, 2x USB 3.0 port, and a combination audio/microphone jack.
MOTHERBOARD TRAY WITH CUSTOMIZABLE FAN MOUNTS
Side-mount up to 3x 120mm fans or up to a 360mm radiator, enabling new flexible cooling options. A spacious interior fits up to 10x 120mm or 4x 140mm cooling fans, along with multiple radiators including up to a 360mm in front and a 360mm push/pull in the roof. Fully control and synchronize the RGB lighting for up to six fans with the included iCUE Lighting Node CORE and CORSAIR iCUE software
