| Door Lock Specification | ||
| Software | Support for Windows 11 64-bit | |
| Basic Information | ||
| Storage | 4x M.2<br> M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices<br> M.2_2 Source (From CPU) supports up to PCIe 4.0 x4, supports 22110/2280/2260 devices<br> M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices<br> M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices<br> 4x SATA 6G | |
| Supported CPU | Supports Intel Core Ultra Processors (Series 2) LGA 1851 | |
| Form Factor | ATX<br> 243.84mmx304.8mm | |
| Type | DDR5 | |
| Others | RAID<br> Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices<br> Supports RAID 0, RAID 1, RAID 5, and RAID 10 for M.2 NVMe storage devices<br> | |
| Memory Specifications | ||
| Slots | 4 | |
| Chipset | ||
| Chipset | INTEL Z890 | |
| Graphics | ||
| Graphics | 1x HDMI<br> Support HDMI 2.1, maximum resolution of 4K 60Hz*<br> 1x DisplayPort<br> Support DisplayPort 1.4, maximum resolution of 4K 60Hz*<br> 1x Type-C DisplayPort<br> Thunderbolt 4 port, supporting DisplayPort 2.1 with UHBR20 over<br> USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* | |
| Input Devices | ||
| Expansion Slot | 3x PCI-E x16 slot<br> 1x PCI-E x1 slot<br> PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)<br> PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)<br> PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)<br> PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)<br> | |
| Motherboard | ||
| Memory | Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s<br> Max. overclocking frequency:<br> • 1DPC 1R Max speed up to 9200+ MT/s<br> • 1DPC 2R Max speed up to 7200+ MT/s<br> • 2DPC 1R Max speed up to 6400+ MT/s<br> • 2DPC 2R Max speed up to 5600+ MT/s | |
| Connector & Ports | ||
| USB (s) | 4x USB 2.0 (Rear)<br> 4x USB 2.0 (Front)<br> 2x USB 5Gbps Type A (Rear)<br> 4x USB 5Gbps Type A (Front)<br> 2x USB 10Gbps Type A (Rear)<br> 1x USB 10Gbps Type C (Front)<br> | |
| LAN Port (s) | Realtek 8126 5Gbps LAN | |
| Audio | Realtek ALC897 Codec 7.1-Channel High-Definition Audio | |
| Internal I/O Ports | Internal I/O Ports<br> 1x Power Connector(ATX_PWR)<br> 2x Power Connector(CPU_PWR)<br> 1x Power Connector(PCIE_PWR 8pin)<br> 1x CPU Fan<br> 1x Combo Fan (Pump_Sys Fan)<br> 5x System Fan<br> 1x EZ Conn-header (JAF_1)<br> 2x Front Panel (JFP)<br> 1x Chassis Intrusion (JCI)<br> 1x Front Audio (JAUD)<br> 1x Tuning Controller connector(JDASH)<br> 3x Addressable V2 RGB LED connector (JARGB_V2)<br> 1x RGB LED connector(JRGB)<br> 1x TPM pin header(Support TPM 2.0)<br> 4x USB 2.0 ports<br> 4x USB 5Gbps Type A ports<br> 1x USB 20Gbps Type C ports<br> Rear Panel I/O Ports<br> 1x Thunderbolt4 ports (Rear)<br> Supports up to 40Gbps transfer rate with Thunderbolt devices<br> Supports up to 20Gbps transfer rate with USB4 devices<br><br> Supports up to 10Gbps transfer rate with USB 3.2 devices<br> Supports up to 5V/3A,15W power charging<br> Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices<br> Supports up to 8K display<br> | |
| Ports & Slots | ||
| Features | Unique Feature: 4x EZ Debug LED | |
| Warranty Information | ||
| Warranty | 3-Years | |

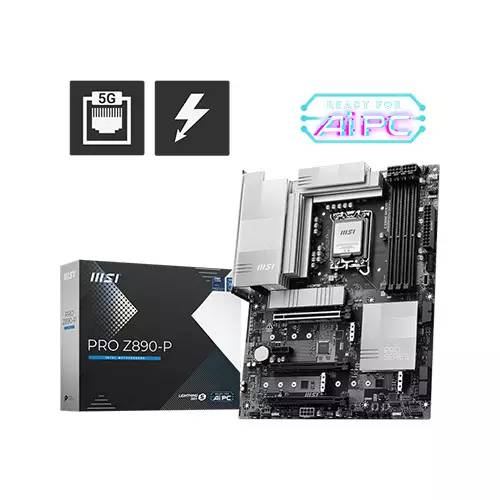

The MSI PRO Z890-P motherboard is designed for users who demand high performance, cutting-edge connectivity, and robust reliability for Intel’s latest Core Ultra Processors. Built on the Intel Z890 chipset with support for LGA 1851 CPUs, this ATX motherboard offers a perfect platform for professional and enthusiast builds alike. Equipped with DDR5 memory support, the PRO Z890-P can handle speeds from 4800 MT/s up to an impressive 9200+ MT/s (OC), accommodating high-speed, multitasking, and memory-intensive applications with ease. It features four DDR5 slots and supports various memory configurations for maximum flexibility. Storage options are abundant with four M.2 slots and four SATA 6Gb/s ports, enabling high-speed NVMe drives and legacy storage integration. The M.2_1 slot even supports PCIe 5.0 x4, ensuring future-proof storage performance. Graphics capabilities are robust with HDMI 2.1, DisplayPort 1.4, and Thunderbolt 4 with DisplayPort 2.1 support, allowing up to 8K display resolution for gaming, content creation, or professional workloads. Networking and connectivity are advanced, featuring a Realtek 5Gbps LAN port and extensive USB support, including USB 2.0, 5Gbps, 10Gbps, and Type-C ports with Thunderbolt 4 functionality for ultra-fast data transfers. Audio performance is enhanced with the Realtek ALC897 7.1-channel high-definition codec, providing immersive sound. The motherboard also offers advanced expandability with three PCIe x16 slots and one PCIe x1 slot, support for RAID 0/1/5/10 configurations, and a variety of internal headers for fans, RGB lighting, and TPM 2.0 security. With MSI’s 4x EZ Debug LED feature, troubleshooting and system monitoring are straightforward. Backed by a 3-year warranty, the MSI PRO Z890-P ensures stability, performance, and reliability for demanding computing tasks, making it an excellent choice for professionals, gamers, and creators seeking a high-performance motherboard with future-ready features.
The latest price of MSI PRO Z890-P LGA 1851 DDR5 ATX Motherboard in Bangladesh is 35,700৳ You can buy the MSI PRO Z890-P LGA 1851 DDR5 ATX Motherboard at best price from our Website or visit any of our showrooms.
