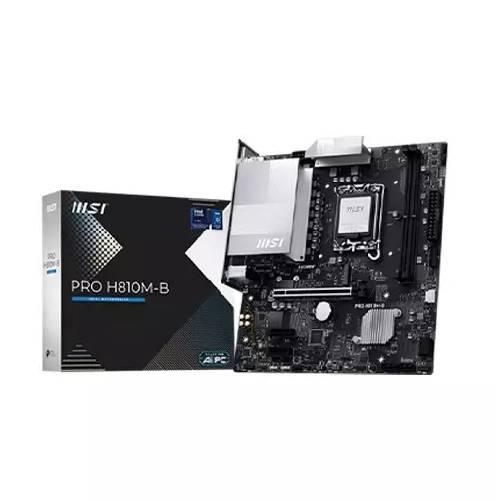

MSI PRO H810M-B DDR5 LGA1851 mATX Motherboard

MSI PRO H810M-B DDR5 LGA1851 mATX Motherboard

The MSI PRO H810M-B DDR5 LGA1851 mATX Motherboard is designed for professionals and PC enthusiasts seeking a robust, high-performance platform for Intel’s latest Core Ultra Series 2 processors. Engineered with the INTEL H810 chipset, this motherboard delivers reliability, speed, and advanced connectivity in a compact micro-ATX form factor. With support for Intel’s LGA 1851 socket, the PRO H810M-B ensures seamless compatibility with the latest CPUs, allowing users to build future-proof systems without compromise.Memory performance is exceptional, with support for up to 128GB of DDR5 RAM across two UDIMM slots. It offers speeds ranging from 4800 MT/s to an impressive 6400 MT/s, including Intel XMP 3.0 and dual-channel support. This makes it ideal for memory-intensive applications such as content creation, multitasking, and gaming. The board also accommodates Intel POR Speed, JEDEC Speed, and CUDIMM, providing flexibility for diverse memory configurations. For storage, the MSI PRO H810M-B provides a high-speed M.2 slot supporting PCIe 4.0 x4 devices and four SATA 6G ports, enabling fast data access and ample storage expansion. Graphics support includes HDMI 2.1 and DisplayPort 1.4, both capable of delivering stunning 4K visuals at 60Hz, perfect for high-resolution monitors and multimedia setups. Connectivity is top-notch with Realtek 8125 2.5Gbps LAN, multiple USB ports including USB 10Gbps Type-C, and comprehensive internal I/O options. Expansion options include one PCIe 5.0 x16 slot and two PCIe 4.0 x1 slots for graphics cards, add-on cards, or other peripherals. The motherboard also includes RGB and addressable RGB headers for customizable lighting effects, a TPM header supporting TPM 2.0 for security, and multiple fan connectors for efficient cooling. Backed by MSI’s 3-year warranty, the PRO H810M-B combines reliability, speed, and versatility, making it an excellent choice for high-performance computing, office workstations, or gaming systems.

Features of MSI PRO H810M-B DDR5 LGA1851 mATX Motherboard

• Chipset: Intel H810 chipset provides a stable and reliable platform for modern Intel CPUs. Optimized for performance, connectivity, and memory efficiency.
• Memory: 2x DDR5 UDIMM slots supporting up to 128GB of RAM. Speeds range from DDR5 4800 MT/s up to 6400 MT/s with overclocking. Supports Intel XMP 3.0 for simple and efficient memory tuning. Dual-Controller Dual-Channel mode ensures faster multitasking and enhanced system responsiveness.
• Storage: 1x M.2 PCIe 4.0 x4 slot supporting 2280/2260 SSDs for ultra-fast boot and load times. 4x SATA 6Gb/s ports allow connection of additional SSDs or HDDs for expanded storage.
• Graphics Output: 1x HDMI 2.1 and 1x DisplayPort 1.4 supporting up to 4K resolution at 60Hz. Perfect for high-definition displays, multimedia work, and gaming.
• Expansion Slots: 1x PCIe 5.0 x16 slot for next-generation graphics cards and high-performance add-ons. 2x PCIe 4.0 x1 slots for additional expansion cards, providing flexibility for upgrades.
• Networking: Realtek 8125 2.5Gbps LAN delivers high-speed, low-latency wired networking for gaming, streaming, and professional workloads.
• Front: 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C
• Form Factor: micro-ATX form factor provides a compact design without sacrificing connectivity or expandability.
• Warranty: 3-year manufacturer warranty ensures reliability and peace of mind.
