| Processor |
| Supported CPU |
LGA1700 Socket: Support For The 14th, 13th, And 12th Generation Intel Core,
Pentium Gold And Celeron Processors* L3 Cache Varies With CPU |
| Mainboard |
| Chipset |
Intel® B760 Express Chipset |
| Memory |
| Memory |
Support For DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) /7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.)
/ 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/S Memory Modules
4 X DDR5 DIMM Sockets Supporting Up To 192 GB (48 GB Single DIMM Capacity) Of System Memory
Dual Channel Memory Architecture
Support For ECC Un-Buffered DIMM 1Rx8/2Rx8 Memory Modules (Operate In
Non-ECC Mode)
Support For Non-ECC Un-Buffered DIMM 1Rx8/2Rx8/1Rx16 Memory Modules
Support For Extreme Memory Profile (XMP) Memory Modules
(The CPU And Memory Configuration May Affect The Supported Memory Types, Data Rate (Speed), And Number Of
DRAM Modules, Please Refer To "Memory Support List" For More Information.) |
| Storage |
| Storage |
CPU:
- 1 X M.2 Connector (Socket 3, M Key, Type 2280 PCIe 4.0 X4/X2 SSD Support) (M2A_CPU)
Chipset:
- 1 X M.2 Connector (Socket 3,M Key, Type 22110/2280 PCIe 4.0 X4/X2 SSD Support) (M2P_SB)
- 4 X SATA 6Gb/S Connectors
RAID 0, RAID 1, RAID 5, And RAID 10 Support For SATA Storage Devices |
| Graphics |
| Graphics Chipset |
Integrated Graphics Processor-Intel® HD Graphics Support:
- 1 X HDMI Port, Supporting A Maximum Resolution Of 4096x2160@60 Hz
* Support For HDMI 2.1 Version And HDCP 2.3.
** Support For Native HDMI 2.1 TMDS Compatible Ports.
- 1 X Front HDMI Port, Supporting A Maximum Resolution Of 1920x1080@30 Hz
* Support For HDMI 1.4.
- 1 X DisplayPort, Supporting A Maximum Resolution Of 4096x2304@60 Hz
* Support For DisplayPort 1.2 Version And HDCP 2.3
(Graphics Specifications May Vary Depending On CPU Support.) |
| Audio & Microphone |
| Audio |
Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-Channel
* You Can Change The Functionality Of An Audio Jack Using The Audio Software. To Configure 7.1-Channel Audio,
Access The Audio Software For Audio Settings.
Support For S/PDIF Out |
| Networking & Connectivity |
| Wireless Connectivity |
Realtek Wi-Fi 6E RTL8852CE (PCB Rev. 1.0/1.2)
- WIFI A, B, G, N, Ac, Ax, Supporting 2.4/5/6 GHz Carrier Frequency Bands
- BLUETOOTH 5.3
- Support For 11ax 160MHz Wireless Standard
Intel® Wi-Fi 6E AX211 (For PCB Rev. 1.1/1.3)
- WIFI A, B, G, N, Ac, Ax, Supporting 2.4/5/6 GHz Carrier Frequency Bands
- BLUETOOTH 5.3
- Support For 11ax 160MHz Wireless Standard
(Actual Data Rate May Vary Depending On Environment And Equipment.) |
| LAN |
Intel 2.5GbE LAN Chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Ports |
| I/O Port |
ITE I/O Controller Chip |
| Connector |
2 X SMA Antenna Connectors (2T2R)
1 X USB Type-C Port, With USB 3.2 Gen 2x2 Support
1 X USB 3.2 Gen 2 Type-A Port (Red)
3 X USB 3.2 Gen 1 Ports
4 X USB 2.0/1.1 Ports
1 X HDMI Port
1 X DisplayPort
1 X RJ-45 Port
1 X Optical S/PDIF Out Connector
2 X Audio Jacks |
| Internal I/O Ports |
1 X 24-Pin ATX Main Power Connector
1 X 8-Pin ATX 12V Power Connector
1 X 4-Pin ATX 12V Power Connector
1 X CPU Fan Header
3 X System Fan Headers
3 X Addressable RGB Gen2 LED Strip Headers
1 X RGB LED Strip Header
2 X M.2 Socket 3 Connectors
4 X SATA 6Gb/S Connectors
1 X Front Panel Header
1 X Front Panel Audio Header
1 X USB Type-C Header, With USB 3.2 Gen 2 Support
1 X USB 3.2 Gen 1 Header
2 X USB 2.0/1.1 Headers
2 X Thunderbolt Add-In Card Connectors
1 X Trusted Platform Module Header (For The GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 Module Only)
1 X HDMI Port
1 X Q-Flash Plus Button
1 X Reset Button
1 X Reset Jumper
1 X Clear CMOS Jumper |
| USB |
Chipset:
- 1 X USB Type-C Port On The Back Panel, With USB 3.2 Gen 2x2 Support
- 1 X USB Type-C Port With USB 3.2 Gen 2 Support, Available Through The
Internal USB Header
- 1 X USB 3.2 Gen 2 Type-A Port (Red) On The Back Panel
- 1 X USB 3.2 Gen 1 Ports On The Back Panel
- 4 X USB 2.0/1.1 Ports Available Through The Internal USB Headers
Chipset+USB 3.2 Gen 1 Hub:
- 4 X USB 3.2 Gen 1 Ports (2 Ports On The Back Panel, 2 Ports Available Through The Internal USB Header)
Chipset+USB 2.0 Hub:
- 4 X USB 2.0/1.1 Ports On The Back Panel |
| Technical Info |
| Supported OS |
Support For Windows 11 64-Bit
Support For Windows 10 64-Bit |
| BIOS |
1 X 256 Mbit Flash
Use Of Licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Special Features |
| Software |
Norton Internet Security (OEM Version)
LAN Bandwidth Management Software |
| Physical Specification |
| Expansion Slots |
CPU:
- 1 X PCI Express X16 Slot, Supporting PCIe 5.0 And Running At X16 (PCIEX16)
* The PCIEX16 Slot Can Only Support A Graphics Card Or An NVMe SSD. If Only One Graphics Card Is To Be Installed,
Be Sure To Install It In The PCIEX16 Slot.
Chipset:
- 1 X PCI Express X16 Slot, Supporting PCIe 4.0 And Running At X4 (PCIEX4) |
| Form Factor |
24.4cm X 24.4cm |
| Dimension |
24.4cm X 24.4cm |
| Warranty Information |
| Warranty |
3 Years |

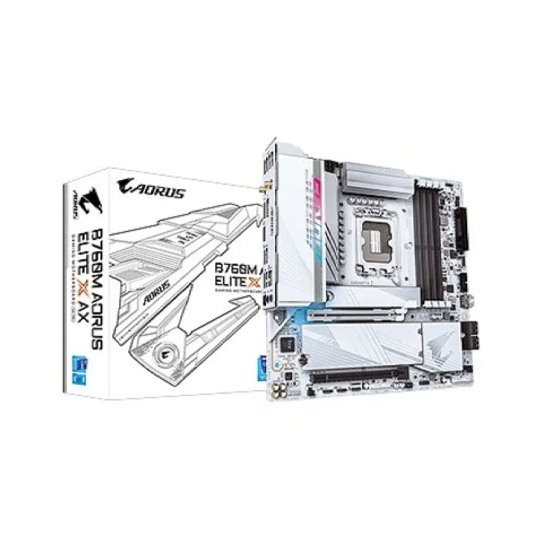

GIGABYTE B760M AORUS ELITE X AX 14th, 13th & 12th Gen ATX Motherboard
The GIGABYTE B760M AORUS ELITE X AX ATX Motherboard is designed for enthusiasts who want next-level performance, stability, and aesthetics without overspending. Supporting Intel 14th, 13th, and 12th Gen Core processors, this motherboard blends cutting-edge technology with AORUS reliability—making it perfect for gamers, content creators, and power users in Bangladesh. Powered by the Intel B760 chipset, this board features DDR5 memory support, PCIe 4.0 expansion, Wi-Fi 6E, and 2.5GbE LAN, giving you lightning-fast connectivity for both online gaming and professional workloads. It’s also built with GIGABYTE’s Ultra Durable™ components, ensuring long-lasting performance even under heavy use. Visually, it carries the signature AORUS gaming armor design, combined with RGB Fusion 2.0 lighting that gives your setup a premium look. Whether you’re assembling a new system or upgrading your current one, the B760M AORUS ELITE X AX provides the perfect balance of features, performance, and design. This motherboard delivers everything you expect from GIGABYTE’s AORUS series—speed, reliability, and innovation.
Special Benefits of GIGABYTE B760M AORUS ELITE X AX ATX Motherboard
1. Supports Intel 14th–12th Gen CPUs
Compatible with Intel Core i3 to i9 processors using the LGA 1700 socket, it ensures smooth, stable operation across multiple generations. Whether gaming or working, it handles heavy multitasking with ease.
2. DDR5 Memory Support
Enjoy ultra-fast speeds up to 7600 MHz (OC) with next-gen DDR5 RAM. It improves data transfer rates, reduces latency, and ensures smoother gameplay and video rendering performance.
3. PCIe 4.0 Ready
Equipped with one PCIe 4.0 x16 slot and two M.2 PCIe 4.0 slots, it supports the latest GPUs and NVMe SSDs for faster boot times, quick file transfers, and reduced loading screens.
4. Wi-Fi 6E and 2.5GbE LAN
Dual-band wireless and high-speed wired connectivity ensure stable, low-latency internet—ideal for online gaming, streaming, and competitive esports.
5. Smart Fan 6 Cooling
Smart Fan 6 provides real-time temperature control with multiple sensors and hybrid fan headers. It automatically adjusts fan speeds to keep your system cool and quiet.
6. Robust Power Design
An 8+1+1 power phase VRM design ensures stable voltage delivery and allows moderate CPU overclocking for added performance.
How to Choose the Right GIGABYTE B760M AORUS ELITE X AX ATX Motherboard
When selecting a motherboard for your next Intel build, consider these key points before buying the GIGABYTE B760M AORUS ELITE X AX:
-
Processor Compatibility:
Make sure you’re using Intel’s 14th, 13th, or 12th Gen Core CPU (i3–i9). The LGA1700 socket ensures full compatibility with all three generations.
-
Memory Type:
This board supports DDR5 RAM—ideal for future-proofing your PC. If you’re upgrading from DDR4, ensure you get compatible memory modules.
-
Form Factor:
The ATX design fits most mid and full-tower cases while providing extra expansion options for GPUs and storage.
-
Connectivity Needs:
If you rely on wireless gaming or video streaming, built-in Wi-Fi 6E and 2.5GbE LAN give you the flexibility to stay connected seamlessly.
-
Cooling and Power:
For consistent performance, Smart Fan 6 and a strong VRM ensure optimal thermal control and stable overclocking support.
-
Future Upgrade Path:
With PCIe 4.0 and DDR5 support, your system is ready for the next wave of GPUs and high-speed SSDs—ensuring longevity and upgrade potential.
If your goal is to build a reliable gaming, editing, or multitasking PC, the B760M AORUS ELITE X AX gives you high-end performance with long-term value.
Shop Now this Exclusive Performance GIGABYTE B760M AORUS ELITE X AX ATX Motherboard from Speed Technology
Upgrade your PC with the GIGABYTE B760M AORUS ELITE X AX Motherboard, built for performance, stability, and next-gen connectivity. It’s ideal for Intel 14th, 13th, and 12th Gen processors and delivers blazing speed with DDR5, PCIe 4.0, and Wi-Fi 6E support.
Buy 100% genuine GIGABYTE products with official warranty from Speed Technology, Bangladesh’s trusted tech retailer. Shop now and build your ultimate gaming or professional setup with power you can rely on.
