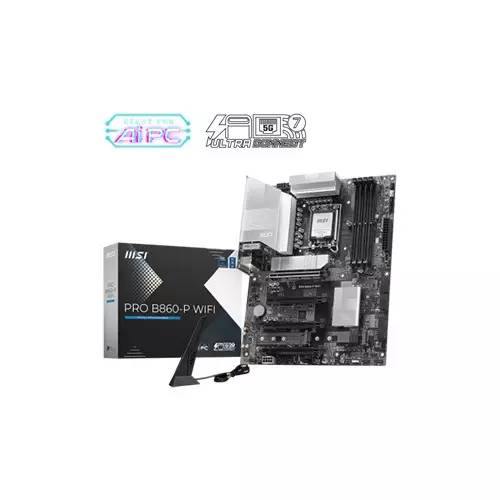

MSI PRO B860-P WIFI DDR5 ATX Intel Motherboard

MSI PRO B860-P WIFI DDR5 ATX Intel Motherboard

The MSI PRO B860-P WIFI DDR5 ATX Intel Motherboard is engineered to deliver exceptional performance, expandability, and connectivity for modern PC builds. Designed for Intel® Core™ Ultra Processors (Series 2) with the advanced LGA 1851 socket, this motherboard brings professional-grade reliability to high-performance computing, content creation, and gaming applications. Equipped with the Intel B860 chipset, it provides robust support for the latest DDR5 memory modules, allowing up to 256GB of high-speed RAM. With memory overclocking capabilities reaching up to 8800+ MT/s and support for Intel® XMP 3.0, users can maximize system performance with ease. Storage options are extensive, featuring three M.2 slots and four SATA 6Gb/s ports, supporting RAID 0, 1, 5, and 10 configurations. The primary M.2 slot offers PCIe 5.0 x4 speeds, while the additional M.2 slots provide PCIe 4.0 x4/x2 performance, ensuring rapid data access and minimal load times. For graphics, the motherboard includes HDMI 2.1, DisplayPort 1.4, and a Thunderbolt™ 4 Type-C port capable of 4K@120Hz and 8K@60Hz outputs, supporting both high-resolution displays and creative workflows.Networking is future-ready with Intel Wi-Fi 7 and Realtek 5Gbps LAN, providing ultra-fast and stable internet connectivity. Bluetooth 5.4 ensures seamless wireless peripheral integration. Audio is powered by the Realtek® ALC897 codec, delivering crisp 7.1-channel high-definition sound. The MSI PRO B860-P WIFI also includes comprehensive expansion options, including four PCI-E slots for graphics cards and other peripherals. Multiple internal and external USB ports, RGB headers, and fan connectors provide versatility for custom builds. Compatible with Windows 11 64-bit, this motherboard combines cutting-edge technology with ease of use, making it a relia

Features of MSI PRO B860-P WIFI DDR5 ATX Intel Motherboard

• CPU Support: Compatible with Intel® Core™ Ultra Processors (Series 2) via the LGA 1851 socket, enabling high-performance computing for gaming, content creation, and professional applications.
• Chipset: Powered by Intel B860 chipset for stability, reliability, and optimal performance.
• Memory Support: 4 DDR5 slots supporting up to 256GB, with speeds ranging from 4800 MT/s (JEDEC) to 8800+ MT/s (OC). Supports Intel® XMP 3.0 for easy memory overclocking and dual-channel dual-controller architecture for maximum efficiency.
• Storage Options: 3x M.2 slots (1x PCIe 5.0 x4, 2x PCIe 4.0 x4/x2) and 4x SATA 6Gb/s ports. Supports RAID 0, 1, 5, and 10 for advanced storage configurations.
• Graphics Outputs: HDMI 2.1, DisplayPort 1.4, and Thunderbolt™ 4 Type-C port supporting DisplayPort 2.1, 4K@120Hz, and 8K@60Hz resolutions. Ideal for high-resolution monitors and multi-display setups.
• Networking & Wireless: Realtek® 8126 5Gbps LAN, Intel Wi-Fi 7, and Bluetooth 5.4 with MLO & 4KQAM. Offers fast, stable, and reliable wired and wireless connectivity, supporting MU-MIMO TX/RX and up to 5.8Gbps wireless speeds.
• Audio: Realtek® ALC897 codec delivering immersive 7.1-channel high-definition audio for gaming, streaming, and multimedia.
• Expansion Slots: 4x PCI-E slots, including PCIe 5.0 x16 from CPU and PCIe 4.0 x1/x4 slots from the chipset, supporting multiple GPUs, storage cards, and other peripherals.
• USB & Connectivity: Multiple USB ports including USB 2.0, USB 5Gbps Type-A, and USB 10Gbps Type-A/C ports. Supports Thunderbolt 5 card connection for additional expansion.
• Internal Connectors: Fan headers, RGB and addressable RGB connectors, TPM 2.0 header, and front panel connectors for full system customization and monitoring.
• Form Factor: ATX (243.84mm x 304.8mm) for compatibility with most mid-to-full tower cases.
