| General | ||
| Type | DDR5 | |
| Basic Information | ||
| Supported CPU | Supports Intel Core Ultra Processors (Series 2) | |
| Chipset | INTEL B860 | |
| Form Factor | ATX (243.84mmx304.8mm) | |
| Audio | Realtek® ALC897 Codec<br> 7.1-Channel High Definition Audio | |
| Expansion Slots | ||
| PCI | 4x PCI-E x16 slot<br> PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)<br> PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)<br> PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)<br> PCI_E4 Gen PCIe 4.0 supports up to x1 (From Chipset) | |
| M.2 Socket | 3x M.2 | |
| Memory Specifications | ||
| Slots | 4 | |
| Supported Memory | 4x DDR5 UDIMM,<br> Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s<br> Max. overclocking frequency:<br> • 1DPC 1R Max speed up to 8800+ MT/s<br> • 1DPC 2R Max speed up to 7200+ MT/s<br> • 2DPC 1R Max speed up to 6400+ MT/s<br> • 2DPC 2R Max speed up to 5600+ MT/s | |
| Graphics | ||
| Graphics | 1x HDMI<br> Support HDMI 2.1, maximum resolution of 4K 60Hz*<br> 1x DisplayPort<br> Support DisplayPort 1.4, maximum resolution of 4K 60Hz*<br> 1x Type-C DisplayPort<br> Thunderbolt 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* | |
| Motherboard | ||
| Supported Storage | 3x M.2<br> M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices<br> M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices<br> M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices<br> 4x SATA 6G | |
| Connector & Ports | ||
| HDMI | 1x HDMI 2.1 | |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices<br> Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices | |
| Display Port (s) | 1x DisplayPort<br> 1x Type-C DisplayPort<br> Thunderbolt 4 port, supporting DisplayPort 1.4 over USB Type-C, with a maximum resolution of 4K 120Hz / 8K 60Hz*<br> | |
| USB (s) | 4x USB 2.0 (Rear)<br> 4x USB 2.0 (Front)<br> 2x USB 5Gbps Type A (Rear)<br> 4x USB 5Gbps Type A (Front)<br> 2x USB 10Gbps Type A (Rear)<br> 1x USB 10Gbps Type C (Front) | |
| LAN Port (s) | Realtek 8126 5Gbps LAN | |
| Audio | 1x Front Audio (JAUD) | |
| Internal I/O Ports | x Thunderbolt5 card connector(JTBT5, support RTD3)<br> 1x Power Connector(ATX_PWR)<br> 2x Power Connector(CPU_PWR)<br> 1x Power Connector(PCIE_PWR 8pin)<br> 1x CPU Fan<br> 1x Combo Fan (Pump_Sys Fan)<br> 4x System Fan<br> 2x Front Panel (JFP)<br> 1x Chassis Intrusion (JCI)<br> 1x Front Audio (JAUD)<br> 1x Com Port (JCOM)<br> 1x Tuning Controller connector(JDASH)<br> 2x Addressable V2 RGB LED connector (JARGB_V2)<br> 1x RGB LED connector(JRGB)<br> 4x USB 2.0 ports<br> 4x USB 5Gbps Type A ports<br> 1x USB 10Gbps Type C ports<br> | |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Warranty Information | ||
| Warranty | 3 Year warranty | |

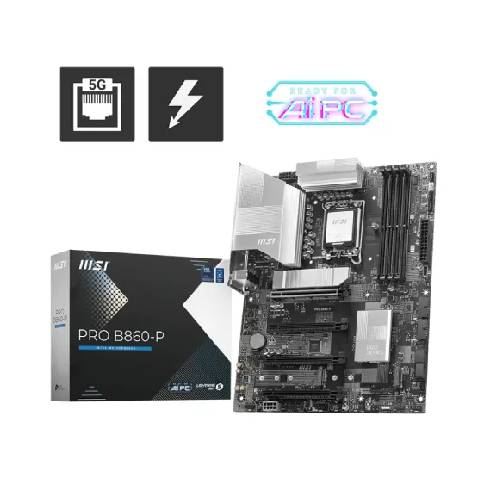

The MSI PRO B860-P LGA 1851 ATX Motherboard is engineered to deliver exceptional stability, performance, and expandability for next-generation PC builds powered by Intel’s latest processors. Designed for professionals, creators, and power users, this motherboard supports Intel Core Ultra Series 2 processors, ensuring future-ready computing capabilities and enhanced efficiency for demanding workloads. Built on the Intel B860 chipset, the PRO B860-P offers a balanced blend of features, including robust connectivity options, high-speed storage interfaces, and advanced audio solutions. Its ATX form factor provides ample space for components and superior airflow, making it an ideal foundation for productivity-focused desktops or performance-driven workstations. With four DDR5 DIMM slots, the motherboard supports up to 256GB of ultra-fast memory, reaching speeds as high as 8800+ MT/s under optimal configurations. This ensures seamless multitasking, faster load times, and superior system responsiveness. For graphics and expansion, the MSI PRO B860-P offers four PCIe x16 slots, including a PCIe 5.0 primary slot straight from the CPU, enabling compatibility with the latest GPUs and expansion cards. Storage capabilities are equally impressive, featuring three M.2 slots, including one PCIe 5.0 x4 slot for lightning-fast NVMe SSDs, along with four SATA 6Gb/s ports. RAID support for both SATA and NVMe ensures data flexibility and improved performance. Connectivity includes Thunderbolt 4 Type-C display output, HDMI 2.1, and DisplayPort 1.4, supporting up to 8K resolution. USB options include multiple high-speed 10Gbps and 5Gbps ports for modern peripherals. The integrated Realtek 8126 5Gbps LAN ensures fast, reliable networking for professional applications. Packed with customizable RGB headers, advanced cooling connectors, and a durable build, the MSI PRO B860-P is a dependable and versatile choice for building a powerful, future-ready PC.
The latest price of MSI PRO B860-P LGA 1851 ATX Motherboard in Bangladesh is 27,000৳ You can buy the MSI PRO B860-P LGA 1851 ATX Motherboard at best price from our Website or visit any of our showrooms.
