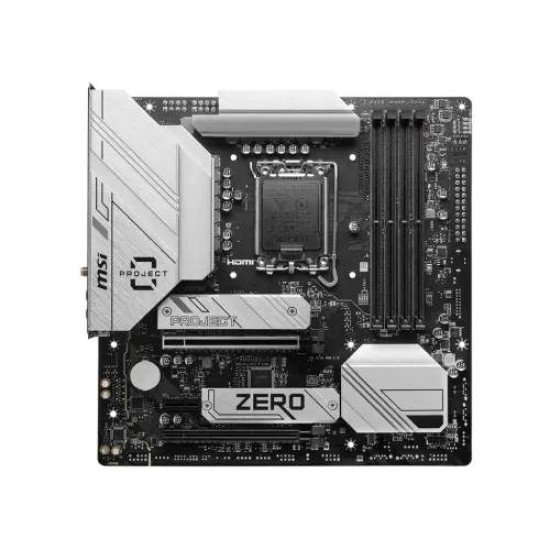

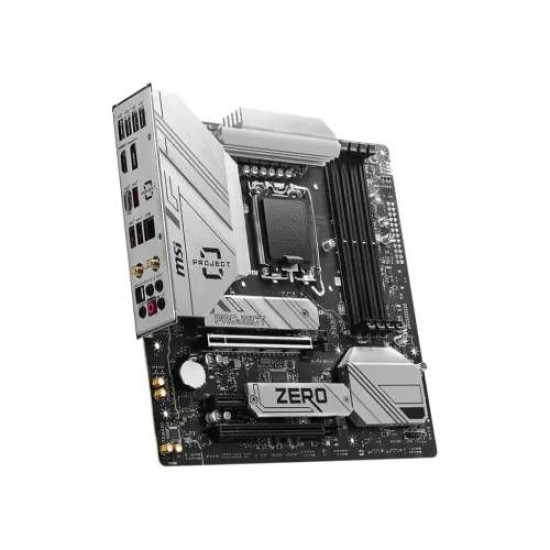

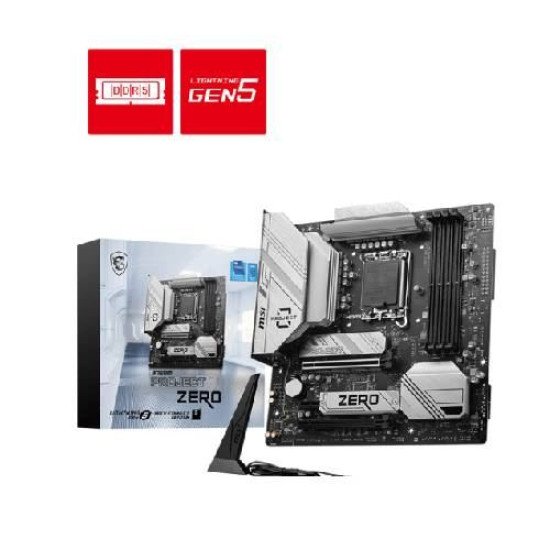

MSI B760M PROJECT ZERO DDR5 Intel® B760 Chipset 14th/ 13th/ 12th Gen mATX Motherboard

Stock: In Stock
Brand: MSI
Model: B760M PROJECT ZERO

Based on 1 reviews. - Write a review

24,990৳

Ex Tax: 24,990৳

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

Key Features

- Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
- Supported RAM: 4x DDR5, Max 192GB
- Graphics Output: 1x HDMI, 1x DisplayPort
- Features: Realtek 2.5Gbps LAN, Intel Wi-Fi 6E

View more details

Basic Information
Supported CPU	Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700
Chipset	INTEL B760
Form Factor	mATX 243.84mmx243.84mm
Audio	Realtek ALC897 Codec 7.1-Channel High Performance Audio Supports S/PDIF output
Type	DDR5
Expansion Slots
PCI	2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
M.2 Socket	1x M.2
Memory Specifications
Slots	4x DIMM
Supported Memory	Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MH z • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile
Graphics
Graphics	Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz* Support DP 1.4, maximum resolution of 4K 60Hz*
Motherboard
Supported Storage	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
Connector & Ports
HDMI	1x HDMI 1.4
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Display Port (s)	1x DisplayPort
USB (s)	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN Port (s)	Realtek 2.5Gbps LAN
Wireless Communication module	Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA

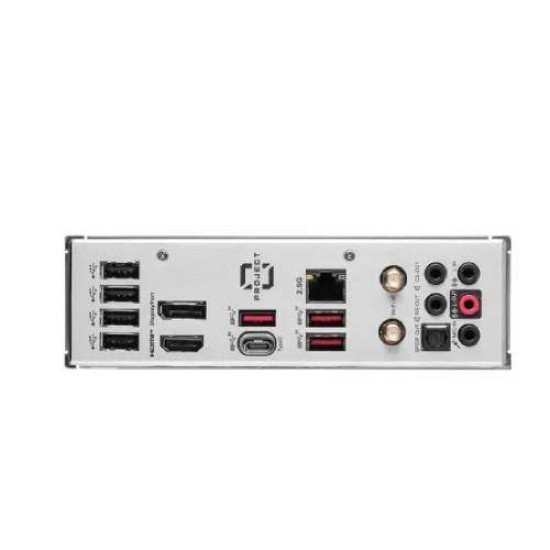

Internal I/O Ports	Internal I/O Ports: 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU FanV 1x Pump Fa 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3)< br> 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports BACK PANEL PORTS: USB 2.0 DisplayPort 1.4 USB 3.2 Gen 2 10Gbps Type-A 2.5G LAN Port Wi-Fi / Bluetooth Antenna HD Audio Connectors HDMI™ 2.1 Port USB 3.2 Gen 2x2 20Gbps Type-C Optical S/PDIF OUT
TPM (Trusted Platform Module )	1x TPM pin header(Support TPM 2.0)
Others Information
Special Features	4x EZ Debug LED
Warranty Information
Warranty	3 years

MSI B760M PROJECT ZERO DDR5 Intel® B760 Chipset 14th/ 13th/ 12th Gen mATX Motherboard

The MSI B760M PROJECT ZERO DDR5 motherboard is designed for high-performance computing, offering robust support for Intel’s 14th, 13th, and 12th Gen Core processors, as well as Intel Pentium Gold and Celeron CPUs. Built with the Intel B760 chipset and an mATX form factor, this motherboard measures 243.84mm x 243.84mm, making it a perfect fit for compact yet powerful builds without compromising on performance. Equipped with support for DDR5 memory across 4 DIMM slots, the B760M PROJECT ZERO ensures lightning-fast speeds up to 7800+ MHz (OC), enabling superior multitasking, gaming, and content creation experiences. It supports dual-channel memory, Intel Extreme Memory Profile (XMP), and up to 192GB of total RAM, catering to both casual users and power-hungry enthusiasts. For graphics, this motherboard supports HDMI 2.1 and DisplayPort 1.4, offering 4K resolution at 60Hz for immersive visuals. Expansion options include 2x PCIe x16 slots and a PCIe x1 slot, along with dual M.2 slots and 4x SATA 6Gb/s ports for versatile storage configurations. RAID 0, 1, 5, and 10 are also supported. Connectivity is future-ready with Intel Wi-Fi 6E, Bluetooth 5.3, and a 2.5Gbps LAN port, ensuring fast and stable network connections. The rear I/O panel offers a full range of USB ports, including USB 3.2 Gen2x2 Type-C, HDMI, DisplayPort, optical S/PDIF, and audio connectors powered by the Realtek ALC897 codec. The motherboard also features enhanced cooling options with dedicated CPU and system fan headers, RGB lighting support, and EZ Debug LEDs for simplified troubleshooting. MSI backs this motherboard with a 3-year manufacturing warranty, providing peace of mind and reliability. MSI B760M PROJECT ZERO DDR5 is ideal for gamers, content creators, and enthusiasts seeking a compact motherboard that delivers high-speed performance, advanced connectivity, and exceptional durability.

Features of MSI B760M PROJECT ZERO DDR5 Intel® B760 Chipset 14th/ 13th/ 12th Gen mATX Motherboard

CPU Support: Compatible with Intel 14th, 13th, and 12th Gen Core, Pentium Gold, and Celeron processors, delivering powerful performance and stable processing for demanding tasks.
Chipset: Intel B760 chipset ensures efficient data handling, system stability, and optimized performance for modern computing needs.
Form Factor: mATX (243.84mm x 243.84mm) provides a compact yet versatile solution for building high-performance desktops in smaller cases.
Memory Support: Supports DDR5 memory with speeds up to 7800+ MHz (OC), dual-channel mode, and Intel XMP profiles, allowing for smooth multitasking and gaming performance.
Maximum Memory: Up to 192GB across 4 DIMM slots, suitable for intensive applications and large-scale workflows.
Graphics Support: HDMI 2.1 and DisplayPort 1.4 output support up to 4K resolution at 60Hz, delivering high-quality visuals for gaming and media.
Expansion Slots: 2x PCIe x16 and 1x PCIe x1 slots provide flexibility for GPU upgrades, sound cards, and other expansion needs.
Storage Options: 2x M.2 slots and 4x SATA 6Gb/s ports with RAID 0, 1, 5, and 10 support, enabling high-speed storage and data redundancy.
Networking: Intel Wi-Fi 6E, Bluetooth 5.3, and 2.5Gbps LAN ensure fast, reliable, and low-latency wired and wireless connections.
Audio: Realtek ALC897 7.1-channel high-definition audio with S/PDIF output delivers immersive sound quality.
