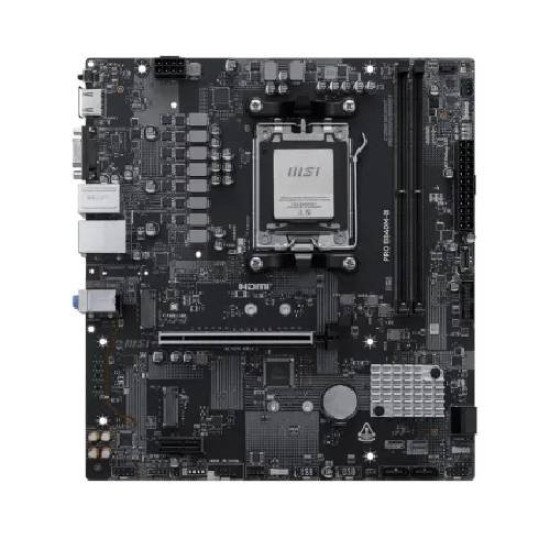

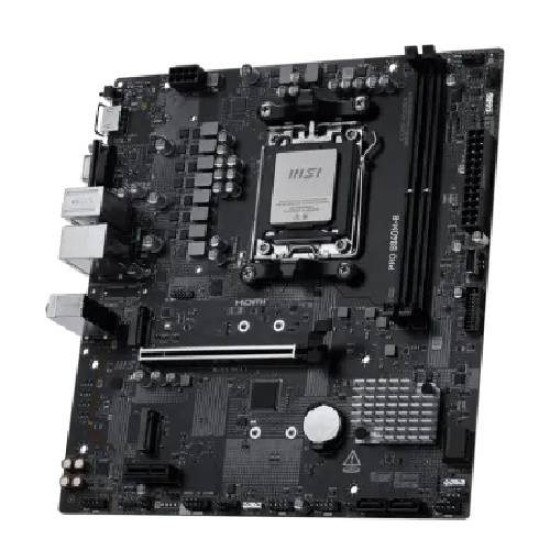

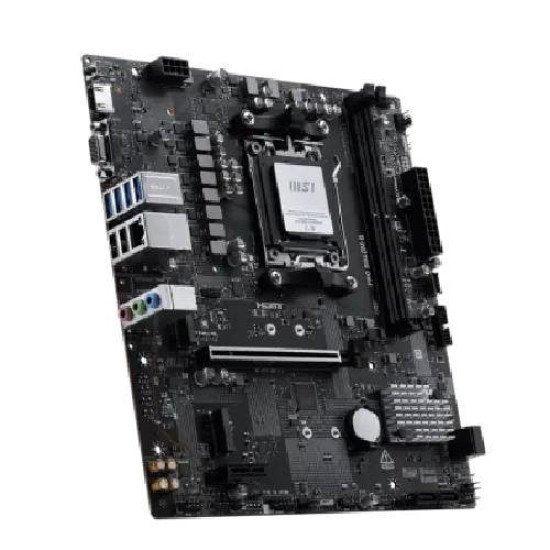

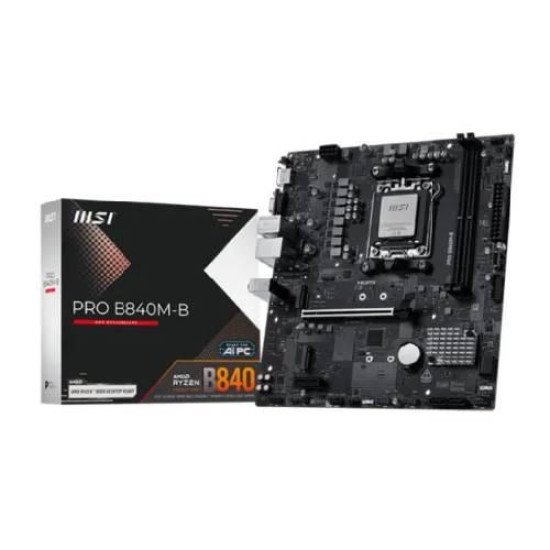

MSI PRO B840M-B AMD B840 Chipset AM5 mATX Motherboard
The MSI PRO B840M-B AMD B840 Chipset AM5 mATX Motherboard is designed to deliver dependable performance, enhanced connectivity, and solid build quality for modern desktop systems. Built around the AMD B840 chipset and the AM5 socket, it supports the latest AMD Ryzen 9000, 8000, and 7000 Series processors, making it a versatile choice for users who want long-term upgrade potential. With support for high-speed DDR5 memory up to 8000+ MT/s (OC), the motherboard offers exceptional memory bandwidth for multitasking, content creation, and gaming.This mATX board features dual PCIe slots, including a primary PCIe 4.0 x16 slot driven directly by the CPU for optimal GPU performance. Storage is well-covered with two PCIe 4.0 M.2 slots and four SATA 6Gb/s ports, giving users flexibility for fast NVMe SSDs or traditional SATA drives. RAID support for both SATA and M.2 NVMe storage adds additional reliability and configuration options. For graphics output, the board includes HDMI 2.1 supporting 4K at 60Hz and a VGA port for legacy displays. Connectivity is boosted by Realtek 2.5G LAN, ensuring fast and stable networking. The rear I/O and internal headers provide multiple USB options, including USB 5Gbps Type-A and Type-C ports. The MSI PRO B840M-B also includes helpful diagnostic tools such as EZ Debug LEDs and EZ Memory Detection, simplifying troubleshooting. With quality audio powered by the Realtek ALC897 7.1-channel codec, customizable RGB support, and robust power delivery, this motherboard is a reliable foundation for productivity-focused builds. Backed by a 3-year warranty, it offers excellent value and stability for everyday computing or professional workloads.
Features of MSI PRO B840M-B AMD B840 Chipset AM5 mATX Motherboard
- CPU Support: Supports AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors on the AM5 socket, ensuring powerful performance for gaming, productivity, and everyday use.
- Chipset: Built with the AMD B840 chipset, offering stable system performance and compatibility with the latest AM5 technologies.
- Memory Support: Supports high-speed DDR5 memory up to 8000+ MT/s (OC), with dual-channel architecture for improved multitasking and system responsiveness.
- Expansion Slots: Includes one PCIe 4.0 x16 slot for modern GPUs and one PCIe 3.0 x1 slot for additional expansion cards.
- Storage Options: Equipped with 2× PCIe 4.0 M.2 slots and 4× SATA 6Gb/s ports, providing fast boot times, high-speed storage, and flexible drive configurations.
- RAID Support: Offers RAID 0/1/10 for SATA devices and RAID 0/1 for M.2 NVMe SSDs, enhancing data protection and performance.
- Display Outputs: Features HDMI 2.1 for 4K 60Hz output and VGA for legacy monitor support, ensuring wide display compatibility.
