MSI PRO B650M-P AMD B650 Chipset AM5 mATX Motherboard

Stock: In Stock
Brand: MSI
Model: PRO B650M-P

Based on 0 reviews. - Write a review

15,900৳

Ex Tax: 15,900৳

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

Key Features

- Supported CPU: Ryzen 9000/8000/7000 Series Processors for Socket AM5
- Supported RAM: 4x DDR5, up to 7200+(OC) MHz
- Graphics Output: 1x HDMI, 1x Display Port, 1x VGA
- Features: Realtek 8125BG 2.5G LAN

View more details

Basic Information
Supported CPU	Supports AMD Ryzen 9000/8000/7000 Series Desktop Processors Socket AM5
Form Factor	mATX 243.84mmx243.84mm
Audio	Realtek ALC897 Codec 7.1-Channel High Definition
Type	DDR5
Expansion Slots
PCI	1x PCI-E x16 slotV 2x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
M.2 Socket
Memory Specifications
Slots	4 DIMMs
Supported Memory	Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7200+ MHz • 1DPC 2R Max speed up to 6000+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5400+ MHzV Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO
Maximum Memory	192GB
Graphics
Graphics	Support HDMITM 2.1, maximum resolution of 4K 60Hz* Supports DP 1.4, maximum resolution of 4K 60Hz* Support VGA, maximum resolution of 1920x1200 60Hz*

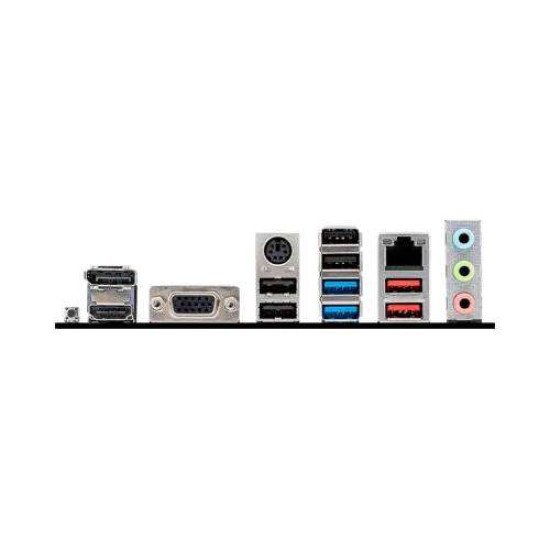

Connector & Ports
HDMI	1x HDMI
RAID	Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Display Port (s)	1x DisplayPort
USB (s)	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 2x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front)
LAN Port (s)	Realtek 8125BG 2.5G LAN
Wireless Communication module
Supported Storage	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G
Audio	1x Front Audio (JAUD) Back Audio connectors
Internal I/O Ports	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM)V 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C portsV
TPM (Trusted Platform Module )	1x TPM pin header(Support TPM 2.0)
Physical Specification
Chipset	AMD B650
Others Information
Special Features	4x EZ Debug LED
Warranty Information
Warranty	03-year Warranty

MSI PRO B650M-P AMD B650 Chipset AM5 mATX Motherboard

The MSI PRO B650M-P AMD B650 Chipset AM5 mATX Motherboard is engineered to deliver reliable performance, modern connectivity, and future-ready support for demanding users. Designed around the AMD B650 chipset and the advanced AM5 socket, this motherboard supports Ryzen 9000, 8000, and 7000 Series processors, making it a strong foundation for gaming, productivity, and creative workloads. Its compact mATX form factor ensures compatibility with a wide range of PC cases while still offering a robust set of features. With four DDR5 memory slots, the board supports up to 192GB of high-speed RAM and overclocking speeds reaching 7200+ MHz, enabling smooth multitasking and improved system responsiveness. For expansion and graphics, it includes a PCIe 4.0 x16 slot, ensuring full support for modern GPUs, alongside additional PCIe 3.0 slots for add-on cards. The motherboard offers flexible display connectivity with HDMI 2.1, DisplayPort 1.4, and VGA, supporting up to 4K 60Hz for sharp, high-resolution output. Storage options are also impressive, featuring two PCIe 4.0 M.2 slots and four SATA 6Gb/s ports, enabling fast boot times and large storage configurations. RAID support for both SATA and NVMe drives enhances data reliability and performance.n For networking, the MSI PRO B650M-P is equipped with Realtek 2.5G LAN, ensuring stable and fast wired connections for gaming and streaming. The Realtek ALC897 audio codec powers 7.1-channel HD sound, enhancing entertainment experiences.n Additional features such as EZ Debug LEDs, multiple fan connectors, RGB headers, and a TPM 2.0 header add convenience, cooling control, and security options. Overall, the MSI PRO B650M-P offers a powerful, efficient, and feature-rich platform ideal for building a modern AMD-based system.

Features of MSI PRO B650M-P AMD B650 Chipset AM5 mATX Motherboard

Advanced Processor Support: Compatible with AMD Ryzen 9000, 8000, and 7000 Series processors for cutting-edge performance.
High-Speed DDR5 Memory: Supports up to 192GB DDR5 with speeds reaching 7200+ MHz for enhanced multitasking.
PCIe 4.0 Graphics Slot: Ensures maximum GPU performance with a full-speed x16 slot.
Dual PCIe 4.0 M.2 Storage: Offers ultra-fast NVMe SSD support for rapid boot and load times.
Versatile Display Outputs: Includes HDMI, DisplayPort, and VGA for flexible monitor connectivity.
2.5G LAN Networking: Provides faster and more stable wired internet performance.
7.1-Channel HD Audio: Powered by the Realtek ALC897 codec for clear, immersive sound.
Enhanced Cooling Support: Comes with CPU, pump, and system fan headers for optimized airflow.
RGB Lighting Support: Dual ARGB and RGB headers for personalization and case lighting effects.
User-Friendly Debugging: EZ Debug LEDs help quickly identify hardware issues during setup.
