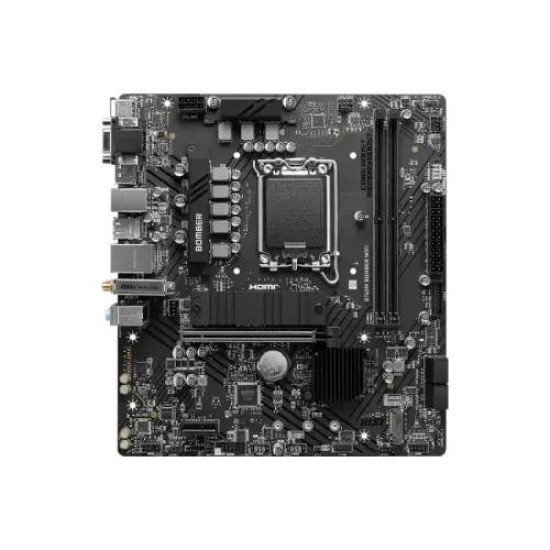

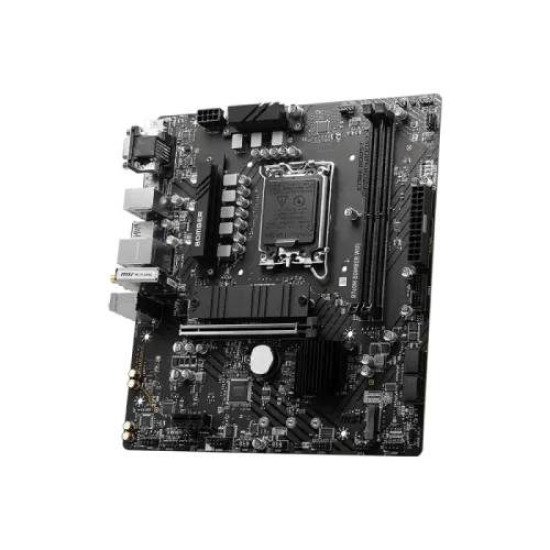

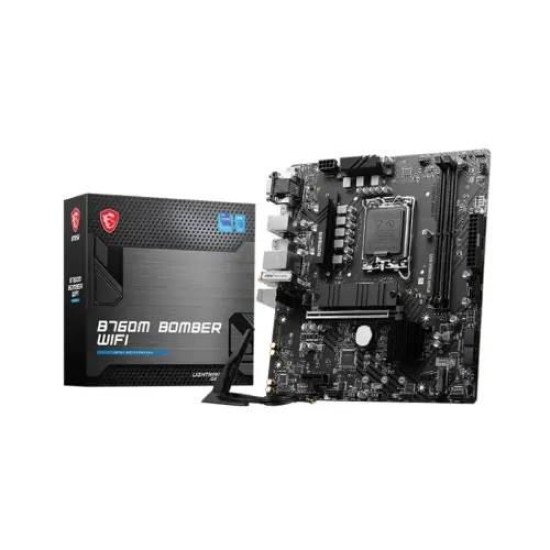

MSI B760M BOMBER WIFI DDR5 Intel® B760 Chipset 14th/ 13th/ 12th Gen mATX Motherboard

MSI B760M BOMBER WIFI DDR5 Intel® B760 Chipset 14th/ 13th/ 12th Gen mATX Motherboard

The MSI B760M BOMBER WIFI DDR5 motherboard is engineered to deliver powerful performance, cutting-edge connectivity, and exceptional reliability for modern gaming and productivity builds. Built on the robust Intel® B760 chipset, it supports 14th, 13th, and 12th Gen Intel® Core™, Pentium Gold, and Celeron processors using the LGA1700 socket, making it an excellent platform for next-gen performance and future-ready upgrades. Designed in the compact mATX form factor (220mm x 243.84mm), this motherboard offers an impressive balance of features without demanding excessive case space. With support for DDR5 memory up to 6400+ MHz (OC) and a maximum capacity of 96GB, users can enjoy improved bandwidth, faster data processing, and enhanced system responsiveness—ideal for gaming, multitasking, and content creation. The MSI B760M BOMBER comes equipped with versatile expansion options including five PCIe slots, featuring PCIe 4.0 x16 for GPUs and multiple PCIe 3.0/4.0 lanes for additional devices. Storage flexibility is provided through two PCIe 4.0 M.2 slots and four SATA 6Gb/s ports, supporting RAID configurations for enhanced speed and data protection. Connectivity is a standout feature, with Intel Wi-Fi 6E, Bluetooth 5.3, Realtek 2.5Gb LAN, and an array of USB ports including USB 3.2 Gen1 and Type-C support. For display output, it includes HDMI 2.1, DisplayPort 1.4, and D-Sub, accommodating a wide range of monitors and resolutions up to 4K @ 60Hz. Additional conveniences such as EZ Debug LEDs, multiple fan headers, addressable RGB support, and a dedicated TPM 2.0 header make the MSI B760M BOMBER a dependable and feature-rich choice for builders. With a 3-year warranty, it ensures durability and long-term performance for any modern PC setup.

Features of MSI B760M BOMBER WIFI DDR5 Intel® B760 Chipset 14th/ 13th/ 12th Gen mATX Motherboard

• CPU Support: Compatible with 14th, 13th, and 12th Gen Intel® Core™, Pentium Gold, and Celeron processors using the LGA1700 socket for powerful performance and upgrade flexibility.
• Chipset: Equipped with the Intel® B760 chipset to ensure fast data handling, stable performance, and next-gen hardware compatibility.
• Memory Support: Supports DDR5 memory up to 6400+ MHz (OC) with dual-channel technology for improved speed, bandwidth, and system responsiveness. Maximum memory capacity: 96GB.
• Expansion Slots: Includes PCIe 4.0 x16, PCIe 4.0 x4, and multiple PCIe 3.0 x1 slots for graphics cards, add-on cards, and future expansion needs.
• Storage Options: Features 2x M.2 slots (PCIe 4.0 x4) and 4x SATA 6Gb/s ports, allowing high-speed NVMe SSDs and traditional SATA drives. Supports RAID 0, 1, 5, and 10 for better speed and data redundancy.

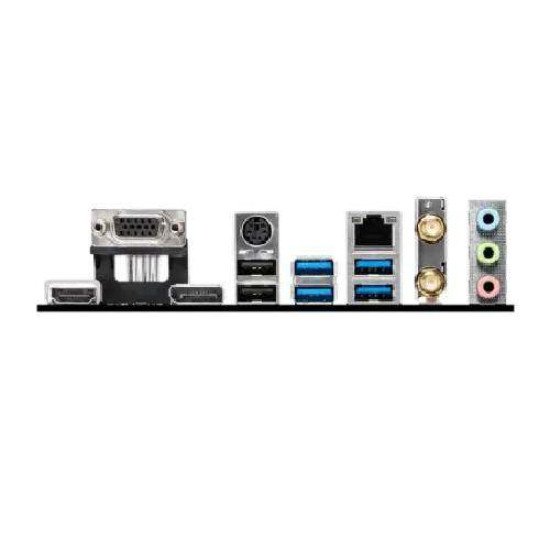

• Graphics Output: Comes with HDMI 2.1, DisplayPort 1.4, and D-Sub outputs, supporting up to 4K @ 60Hz displays for flexible multi-monitor setups.
• Networking: Includes Realtek 2.5Gbps LAN for fast wired connections and Intel Wi-Fi 6E with Bluetooth 5.3 for next-level wireless performance.
• USB Connectivity: Offers a wide range of ports including USB 3.2 Gen1 Type-A, USB 3.2 Gen1 Type-C, and USB 2.0, providing versatile connection options for peripherals.
• Cooling Support: Provides 1x CPU fan, 1x pump fan, and 5x system fan headers to ensure efficient cooling for high-performance builds.
• Audio: Built with the Realtek ALC897 Codec delivering 7.1-channel high-definition audio and S/PDIF output for immersive sound quality.
• RGB & Lighting: Includes Addressable RGB (ARGB) and RGB headers to customize lighting effects and enhance system aesthetics.
