| Processor |
| Supported CPU |
LGA1700 Socket: Support For The 13th And 12th Generation Intel Core
Pentium Gold And Celeron Processors
L3 Cache Varies With CPU |
| Mainboard |
| Chipset |
Intel Z790 Express Chipset |
| Memory |
| Memory |
Support For DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) /
6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 Memory Modules
4 X DDR5 DIMM Sockets Supporting Up To 192 GB (48 GB Single DIMM Capacity) Of System Memory
Dual Channel Memory Architecture
Support For ECC Un-Buffered DIMM 1Rx8/2Rx8 Memory Modules (Operate In Non-ECC Mode)
Support For Non-ECC Un-Buffered DIMM 1Rx8/2Rx8/1Rx16 Memory Modules
Support For Extreme Memory Profile (XMP) Memory Modules |
| Storage |
| Supported Storage |
CPU:
1 X M.2 Connector (Socket 3, M Key, Type 22110/2280 PCIe 4.0 X4/X2 SSD Support) (M2A_CPU)
Chipset:
2 X M.2 Connectors (Socket 3, M Key, Type 22110/2280 PCIe 4.0 X4/X2 SSD Support) (M2P_SB, M2Q_SB)
1 X M.2 Connector (Socket 3, M Key, Type 22110/2280 SATA And PCIe 4.0 X4 SSD Support) (M2M_SB)
6 X SATA 6Gb/S Connectors
RAID 0, RAID 1, RAID 5, And RAID 10 Support For NVMe SSD Storage Devices
RAID 0, RAID 1, RAID 5, And RAID 10 Support For SATA Storage Devices |
| Graphics |
| Graphics |
1 X HDMI Port, Supporting A Maximum Resolution Of 4096x2160@60 Hz
* Support For HDMI 2.0 Version And HDCP 2.3.
1 X DisplayPort, Supporting A Maximum Resolution Of 4096x2304@60
* Support For DisplayPort 1.2 Version And HDCP 2.3 |
| Audio & Microphone |
| Audio |
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-Channel
Support For S/PDIF Out |
| Networking & Connectivity |
| LAN |
Realtek 2.5GbE LAN Chip (2.5 Gbps/1 Gbps/100 Mbps) |
| WiFi |
Intel® Wi-Fi 6E AX211 (PCB Rev. 1.0)
WIFI A, B, G, N, Ac, Ax, Supporting 2.4/5/6 GHz Carrier Frequency Bands
Support For 11ax 160MHz Wireless Standard And Up To 2.4 Gbps Data Rate
Realtek® Wi-Fi 6E RTL8852CE (PCB Rev. 1.1)
WIFI A, B, G, N, Ac, Ax, Supporting 2.4/5/6 GHz Carrier Frequency Bands
Support For 11ax 160MHz Wireless Standard And Up To 2.4 Gbps Data Rate |
| Bluetooth |
BLUETOOTH 5.3 |
| Ports |
| Slots |
CPU:
1 X PCI Express X16 Slot, Supporting PCIe 5.0 And Running At X16 (PCIEX16)
* For Optimum Performance, If Only One PCI Express Graphics Card Is To Be Installed, Be Sure To Install It In The PCIEX16 Slot.
Chipset:
1 X PCI Express X16 Slot, Supporting PCIe 4.0 And Running At X4 (PCIEX4_1)
1 X PCI Express X16 Slot, Supporting PCIe 3.0 And Running At X4 (PCIEX4_2) |
| Internal I/O Ports |
1 X 24-Pin ATX Main Power Connector
2 X 8-Pin ATX 12V Power Connectors
1 X CPU Fan Header
1 X Water Cooling CPU Fan Header
3 X System Fan Headers
1 X System Fan/Water Cooling Pump Header
2 X Addressable LED Strip Headers
2 X RGB LED Strip Headers
4 X M.2 Socket 3 Connectors
6 X SATA 6Gb/S Connectors
1 X Front Panel Header
1 X Front Panel Audio Header
1 X USB Type-C® Header, With USB 3.2 Gen 2 Support
1 X USB 3.2 Gen 1 Header
2 X USB 2.0/1.1 Headers
2 X Thunderbolt™ Add-In Card Connectors
1 X Trusted Platform Module Header (For The GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 Module Only)
1 X Reset Button
1 X Q-Flash Plus Button
1 X Clear CMOS Button
1 X Reset Jumper
1 X Clear CMOS Jumper
ITE® I/O Controller Chip |
| External I/O Ports |
1 X USB Type-C® Port, With USB 3.2 Gen 2x2 Support
2 X USB 3.2 Gen 2 Type-A Ports (Red)
3 X USB 3.2 Gen 1 Ports
4 X USB 2.0/1.1 Ports
2 X SMA Antenna Connectors (2T2R)
1 X HDMI 2.0 Port
1 X DisplayPort
1 X RJ-45 Port
1 X Optical S/PDIF Out Connector
2 X Audio Jacks |
| USB |
Chipset:
1 X USB Type-C® Port On The Back Panel, With USB 3.2 Gen 2x2 Support
1 X USB Type-C® Port With USB 3.2 Gen 2 Support, Available Through The Internal USB Header
2 X USB 3.2 Gen 2 Type-A Ports (Red) On The Back Panel
5 X USB 3.2 Gen 1 Ports (3 Ports On The Back Panel, 2 Ports Available Through The Internal USB Header)
Chipset+2 USB 2.0 Hubs:
8 X USB 2.0/1.1 Ports (4 Ports On The Back Panel, 4 Ports Available Through The Internal USB Headers) |
| HDMI |
1 X HDMI Port |
| Technical Info |
| BIOS |
1 X 256 Mbit Flash
Use Of Licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Special Features |
| Special Features |
Support For GIGABYTE Control Center (GCC)
Support For Q-Flash
Support For Q-Flash Plus
Support For Smart Backup |
| Software Features |
Norton Internet Security (OEM Version)
LAN Bandwidth Management Software
Support For Windows 11 64-Bit
Support For Windows 10 64-Bit |
| Physical Specification |
| Form Factor |
ATX |
| Dimension |
30.5cm X 24.4cm |
| Others |
| Other Features |
H/W Monitoring:
Voltage Detection
Temperature Detection
Fan Speed Detection
Water Cooling Flow Rate Detection
Fan Fail Warning
Fan Speed Control |
| Warranty Information |
| Warranty |
03 Years Warranty |

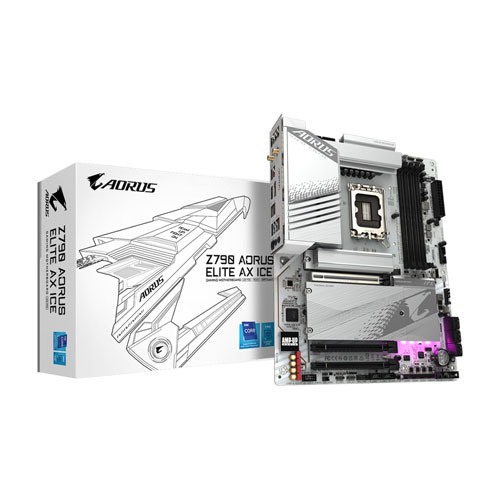

GIGABYTE Z790 AORUS ELITE AX ICE DDR5 ATX Motherboard Price in Bangladesh
The GIGABYTE Z790 AORUS ELITE AX ICE DDR5 ATX Motherboard is built for performance, style, and stability. It supports the latest Intel 13th and 14th Gen processors and delivers powerful speed with DDR5 memory and PCIe 5.0 support.
This motherboard is perfect for gamers, creators, and PC builders who want a fast, reliable, and future-ready system. Its ICE white design gives a premium and clean look, ideal for white or RGB-themed builds. The advanced cooling system keeps the board cool even during heavy gaming or multitasking.
With features like Wi-Fi 6E, 2.5Gb LAN, and Bluetooth 5.3, it ensures fast, stable, and wireless connectivity. The Smart Fan 6 and thermal design help maintain consistent performance. It also supports M.2 Gen4 SSDs and multiple USB ports, making it ready for high-speed data transfer.
The GIGABYTE Z790 AORUS ELITE AX ICE is one of the best choices in Bangladesh for anyone looking to build a premium gaming or productivity PC with modern design and top-tier technology.
Benefits of Using GIGABYTE Z790 AORUS ELITE AX ICE DDR5 ATX Motherboard
-
Supports Latest Intel CPUs: Compatible with Intel 13th and 14th Gen processors on the LGA1700 socket.
-
DDR5 Memory Ready: Offers support for next-gen DDR5 RAM up to 7600MHz (OC) for faster performance.
-
PCIe 5.0 Slot: Get maximum graphics performance with the latest GPUs and next-gen transfer speed.
-
Multiple M.2 Slots: Comes with four M.2 PCIe 4.0 slots for ultra-fast SSD storage.
-
Strong Power Design: 16+1+2 phase VRM ensures smooth power delivery and stable CPU performance.
-
Efficient Cooling: Fully covered thermal design and Smart Fan 6 keep the system cool and quiet.
-
Fast Connectivity: Includes Wi-Fi 6E, 2.5Gb LAN, and Bluetooth 5.3 for low-latency networking.
-
USB 3.2 Gen2x2 Type-C: Provides high-speed connection for external devices and accessories.
-
High-Quality Audio: Built-in ALC897 audio codec delivers clear sound for gaming and entertainment.
-
Easy BIOS Update: Q-Flash Plus allows BIOS updates without installing CPU or RAM.
-
Durable Build: GIGABYTE Ultra Durable components ensure long-term reliability.
-
Beautiful White Design: The ICE-themed finish matches modern white gaming setups perfectly.
-
RGB Fusion Lighting: Customize your lighting with GIGABYTE RGB Fusion to sync your entire system.
This motherboard provides everything you need for a smooth and high-performance PC build — fast, stable, and stylish.
How to Choose a High Quality Motherboard
When choosing a motherboard like the GIGABYTE Z790 AORUS ELITE AX ICE, focus on a few key points:
-
CPU Compatibility: Works with Intel 13th/14th Gen CPUs — make sure your processor uses the LGA1700 socket.
-
Memory Type: Go for DDR5 RAM if you want faster speed and better efficiency.
-
Expansion Slots: Ensure enough PCIe and M.2 slots for your GPU and SSDs.
-
Cooling System: Look for smart fan control and thermal guards for stable performance.
-
Connectivity: Choose a model with Wi-Fi 6E and USB-C for future-ready use.
-
Aesthetics: The ICE white design is perfect for clean, modern gaming builds.
-
Brand & Warranty: GIGABYTE is trusted worldwide for its durability and quality service.
If you want speed, design, and long-term reliability, this motherboard is a solid choice.
