| Basic Information | ||
| Supported CPU | AMD Socket AM5, support for: AMD Ryzen 7000 Series Processors | |
| Chipset | AMD X670 | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
|
| Expansion Slots | ||
| PCI | CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2) Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4) |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4 DIMMs | |
| Supported Memory | Support for DDR5 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | Up to 128 GB (32 GB single DIMM capacity) of system memory | |
| Graphics | ||
| Graphics | Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| USB (s) | CPU: 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 2 x USB 3.2 Gen 1 ports on the back panel CPU + USB 2.0 Hub: 4 x USB 2.0/1.1 ports on the back panel Chipset: 2 x USB Type-C ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header) 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) 4 x USB 2.0/1.1 ports available through the internal USB headers |
|
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Wireless Communication module | AMD Wi-Fi 6E RZ616 (MT7922A22M) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
|
| Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB, M2D_SB) 4 x SATA 6Gb/s connectors |
|
| RAID | RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
|
| Audio | 3 x audio jacks | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x CPU cooler LED strip/RGB LED strip header 2 x addressable LED strip headers 2 x RGB LED strip headers 4 x SATA 6Gb/s connectors 4 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x THB_U4 add-in card connector 1 x power button 1 x reset button 1 x Clear CMOS button 1 x reset jumper 1 x Clear CMOS jumper |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| Others | ||
| Special Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
|
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |

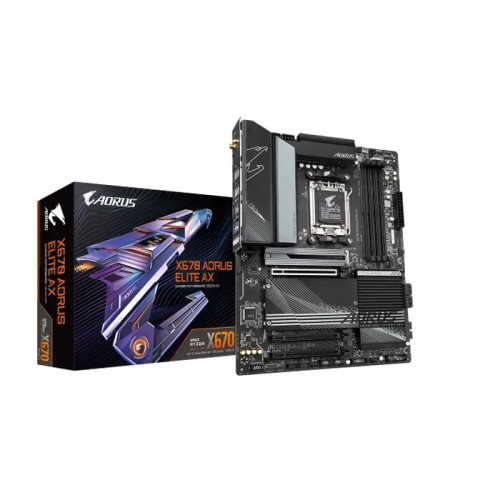

The GIGABYTE X670 AORUS ELITE AX DDR5 AMD AM5 ATX Motherboard is engineered for gamers, content creators, and PC enthusiasts seeking unmatched performance and cutting-edge features. Designed for AMD’s next-generation AM5 processors, this motherboard supports DDR5 memory, offering faster data transfer, higher bandwidth, and enhanced multitasking compared to DDR4, ensuring a smooth and responsive computing experience. Its ATX form factor provides broad compatibility with most PC cases, allowing flexibility in building or upgrading your system. Featuring PCIe 5.0 support, the X670 AORUS ELITE AX delivers ultra-fast connectivity for high-end graphics cards, NVMe SSDs, and other PCIe 5.0 peripherals, future-proofing your system for upcoming hardware advancements. The motherboard is also equipped with AX Wi-Fi 6E for high-speed wireless connectivity, along with Gigabit Ethernet for stable, low-latency wired connections, ensuring seamless online gaming and content streaming. For an immersive multimedia experience, it integrates high-quality audio components, providing clear, rich sound ideal for gaming, streaming, and professional content creation. Additionally, the motherboard offers multiple USB ports, SATA connectors, and M.2 slots, giving users extensive options for connecting storage devices and peripherals. Aesthetically, the X670 AORUS ELITE AX features GIGABYTE’s signature AORUS design with customizable RGB lighting, adding a sleek, futuristic touch to any gaming setup. Built with high-quality components and advanced thermal solutions, it ensures stable performance under heavy workloads while maintaining efficient cooling. In summary, the GIGABYTE X670 AORUS ELITE AX combines powerful performance, advanced technology, and versatile connectivity in a premium ATX motherboard. With DDR5 memory support, PCIe 5.0, robust networking options, and immersive audio, it offers a reliable and future-ready platform for gaming and professional computing needs.
The latest price of GIGABYTE X670 AORUS ELITE AX DDR5 AMD AM5 ATX Motherboard in Bangladesh is 0৳ You can buy the GIGABYTE X670 AORUS ELITE AX DDR5 AMD AM5 ATX Motherboard at best price from our Website or visit any of our showrooms.
