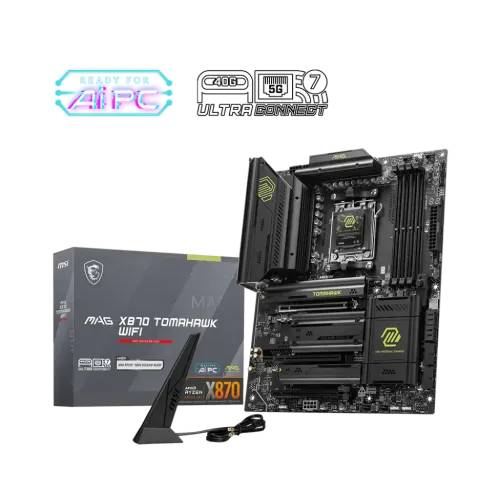

MSI MAG X870 TOMAHAWK WIFI AMD X870 Chipset AM5 ATX Motherboard

MSI MAG X870 TOMAHAWK WIFI AMD X870 Chipset AM5 ATX Motherboard

The MSI MAG X870 TOMAHAWK WIFI is a high-performance ATX motherboard built for gamers, creators, and PC enthusiasts who want maximum power from the latest AMD platforms. Designed around the advanced AMD X870 chipset and AM5 socket, it supports Ryzen 9000, 8000, and 7000 Series Desktop Processors, ensuring long-term upgrade potential and exceptional processing performance. Its durable build, efficient cooling layout, and premium components make it ideal for high-end gaming setups and demanding workloads. This motherboard features DDR5 memory support up to 8400+ MT/s (overclocked), giving users ultra-fast bandwidth for multitasking, gaming, and creative applications. With four DIMM slots and a max capacity of 256GB, it offers flexibility for future memory expansion. The MAG X870 TOMAHAWK WIFI delivers strong graphics support as well, offering one HDMI 2.1 FRL port capable of 8K at 60Hz and two USB4 Type-C DisplayPort outputs, supporting up to 4K at 60Hz for multi-monitor or productivity setups. For storage, it includes four M.2 slots, two of which run at PCIe 5.0, ideal for next-gen NVMe SSDs with blazing-fast speeds. It also supports RAID 0/1/10 for NVMe devices, giving users performance and redundancy options. Expansion flexibility continues with three PCIe x16 slots, including a full PCIe 5.0 x16 slot for top-tier GPUs. Connectivity is a major strength, with dual USB 40Gbps Type-C ports, multiple high-speed USB ports, Realtek 5G LAN, and Wi-Fi 7 for ultra-fast wireless networking. The board also includes MSI’s signature EZ Debug LED, Digit Debug, and extensive fan headers for easier troubleshooting and reliable cooling. Overall, the MAG X870 TOMAHAWK WIFI provides the power, speed, and stability needed to build a premium next-generation PC.

Features of MSI MAG X870 TOMAHAWK WIFI AMD X870 Chipset AM5 ATX Motherboard

• CPU Support: Supports AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors on the AM5 socket, delivering exceptional performance for gaming, content creation, and high-end productivity.
• Chipset: Built on the advanced AMD X870 chipset, enabling next-generation connectivity, faster data throughput, and long-term platform compatibility.
• Memory Support: Supports DDR5 memory up to 8400+ MT/s (OC) with 4× UDIMM slots and a maximum capacity of 256GB, ideal for high-speed multitasking and intensive workloads.
• Graphics Output: Equipped with HDMI 2.1 FRL supporting 8K 60Hz and dual USB4 Type-C DisplayPort outputs supporting 4K 60Hz for seamless multi-display setups.
• Expansion Slots: Features 3× PCIe x16 slots including PCIe 5.0 x16 support, ensuring full performance for the latest graphics cards and expansion devices.
• Storage Support: Offers 4× M.2 slots, including two PCIe 5.0 x4 and two PCIe 4.0 slots, enabling ultra-fast NVMe SSD storage options with RAID 0/1/10 capabilities.
• Networking: Comes with Realtek 8126-CG 5G LAN and built-in Wi-Fi 7 for high-speed, low-latency wired and wireless connectivity.
• Audio: Powered by Realtek ALC4080 codec delivering premium 7.1-channel high-resolution audio for an immersive gaming and media experience.
• USB Connectivity: Provides extensive connectivity with USB 2.0, USB 5Gbps, USB 10Gbps, USB 20Gbps, and dual USB 40Gbps Type-C ports for fast data transfer and modern device support.
• Cooling & Build: Includes multiple system fan headers, a pump header, and MSI EZ Debug/ EZ Digit LEDs for easy troubleshooting and optimized system thermals.
