| Basic Information | ||
| Supported CPU | LGA1700 socket: Support for 12th Generation Intel Core, Pentium Gold, and Celeron Processors L3 cache varies with CPU<br> | |
| Chipset | Intel B660 Express Chipset | |
| BIOS | 1 x 256 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0<br> | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Audio | Realtek Audio CODEC<br> High Definition Audio<br> 2/4/5.1/7.1-channel<br> Support for S/PDIF Out<br> | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16 (PCIEX16)<br> * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.<br> (The PCIEX16 slot conforms to PCI Express 4.0 standard.)<br> 1 x PCI Express x16 slot, running at x4 (PCIEX4)<br> (The PCI Express x4 slot conforms to PCI Express 3.0 standard.)<br> | |
| Memory Specifications | ||
| Type | DDR4 | |
| Slots | 4 x DIMM | |
| Supported Memory | Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules<br> 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory<br> Dual channel memory architecture<br> Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)<br> Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules<br> Support for Extreme Memory Profile (XMP) memory modules<br> | |
| Max. Memory | up to 128 GB (32 GB single DIMM capacity) of system memory | |
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support:<br> 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz<br> * Support for HDMI 2.1 version and HDCP 2.3.<br> ** Support native HDMI 2.1 TMDS compatible ports<br> 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz<br> * Support for DisplayPort 1.2 version and HDCP 2.3<br> (Graphics specifications may vary depending on CPU support.)<br> | |
| Connector & Ports | ||
| HDMI | 1 x HDMI 2.0 port | |
| USB (s) | Chipset:<br> 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support<br> 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB headerv 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel<br> 2 x USB 3.2 Gen 1 ports on the back panel<br> 2 x USB 2.0/1.1 ports available through the internal USB header<br> Chipset+USB 3.2 Gen 1 Hub:<br> 4 x USB 3.2 Gen 1 ports available through the internal USB headers<br> Chipset+USB 2.0 Hub:<br> 4 x USB 2.0/1.1 ports on the back panel<br> | |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)<br> Chipset:<br> 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) <br>(M2P_SB)<br> 4 x SATA 6Gb/s connectors<br> Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10<br> Intel Optane Memory Ready<br> * System acceleration with Intel Optane Memory can only be enabled on the M.2 connectors supported by the Chipset.<br> | |
| Audio | Realtek Audio CODEC <br> High Definition Audio <br> 2/4/5.1/7.1-channel <br> * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software. <br> Support for S/PDIF Out <br> | |

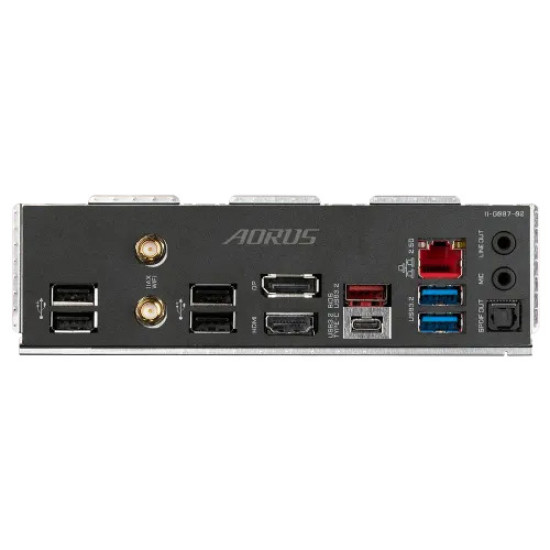

| Internal I/O Ports | 1 x 24-pin ATX main power connector<br> 1 x 8-pin ATX 12V power connector<br> 1 x 4-pin ATX 12V power connector<br> 1 x CPU fan header<br> 3 x system fan headers<br> 2 x addressable LED strip headers<br> 2 x RGB LED strip headers<br> 2 x M.2 Socket 3 connectors<br> 4 x SATA 6Gb/s connectors<br> 1 x front panel header<br> 1 x front panel audio header<br> 1 x USB Type-C® header, with USB 3.2 Gen 2 support<br> 2 x USB 3.2 Gen 1 headers<br> 1 x USB 2.0/1.1 header<br> 2 x Thunderbolt™ add-in card connectors<br> 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)<br> 1 x serial port header<br> 1 x reset button<br> 1 x Q-Flash Plus button<br> 1 x reset jumper<br> 1 x Clear CMOS jumper<br> Back Panel Connectors<br> 1 x USB Type-C® port, with USB 3.2 Gen 2 support<br> 1 x USB 3.2 Gen 2 Type-A port (red)<br> 2 x USB 3.2 Gen 1 ports<br> 4 x USB 2.0/1.1 ports<br> 2 x SMA antenna connectors (2T2R)<br> 1 x HDMI 2.0 port<br> 1 x DisplayPort<br> 1 x RJ-45 port<br> 1 x optical S/PDIF Out connector<br> 2 x audio jacks<br> I/O Controller<br> iTE® I/O Controller Chip<br> H/W Monitoring<br> Voltage detection<br> Temperature detection<br> Fan speed detection<br> Fan fail warning<br> Fan speed control<br> | |
| Others Information | ||
| Special Features | Support for APP Center<br> * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.<br> @BIOS<br> EasyTune<br> Fast Boot<br> Game Boost<br> ON/OFF Charge<br> RGB Fusion<br> Smart Backup<br> System Information Viewer<br> Support for Q-Flash Plus<br> Support for Q-Flash<br> Support for Xpress Install<br> | |
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |
Building a powerful PC in 2026 requires a motherboard that delivers performance, stability, and future-ready features—and that’s exactly where the B660M AORUS ELITE AX DDR4 stands out. If you’re struggling with outdated systems, slow performance, or limited upgrade options, this motherboard offers the perfect solution for gamers, creators, and professionals alike. Designed to support 12th Generation Intel processors with the LGA1700 socket, this motherboard ensures blazing-fast processing power and smooth multitasking. The Intel B660 chipset enhances system efficiency while maintaining stability under heavy workloads. Whether you're gaming, editing videos, or working on demanding applications, this board keeps everything running seamlessly. With support for up to 128GB DDR4 memory and ultra-fast PCIe 4.0 slots, you get improved speed and responsiveness in every task. Built-in WiFi capability, multiple USB 3.2 ports, and advanced cooling features make it a complete package for modern PC builds. If you're planning to upgrade or build a new system in Bangladesh, the Gigabyte B660M AORUS ELITE AX DDR4 is a smart investment for long-term performance and reliability.
Upgrade your PC today with the Gigabyte B660M AORUS ELITE AX DDR4 motherboard from SpeedTech. Get top-tier performance, future-ready features, and reliable warranty support, order now and build your dream setup!
The latest price of Gigabyte B660M AORUS ELITE AX DDR4 12th Gen Micro ATX Motherboard in Bangladesh is 20,500৳ You can buy the Gigabyte B660M AORUS ELITE AX DDR4 12th Gen Micro ATX Motherboard at best price from our Website or visit any of our showrooms.
