| Key Features | ||
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Model | B650M AORUS ELITE AX | |
| Cooler Features | ||
| Specialty | Support for GIGABYTE Control Center (GCC) <br> * Available applications in GCC may vary by motherboard model. <br> Supported functions of each application may also vary depending on motherboard specifications. <br> Support for Q-Flash <br> Support for Q-Flash Plus | |
| General | ||
| Type | DDR5 | |
| Display | 2 x DisplayPorts | |
| Basic Information | ||
| Supported CPU | AMD Socket AM5, support for: AMD Ryzen 7000 Series Processors | |
| BIOS | 1 x 256 Mbit flash <br> Use of licensed AMI UEFI BIOS <br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Audio | Realtek Audio CODEC <br> High Definition Audio <br> 2/4/5.1/7.1-channel <br> * You can change the functionality of an audio jack using the audio software. <br> To configure 7.1-channel audio, access the audio software for audio settings. <br> Support for S/PDIF Out | |
| Memory Specifications | ||
| Supported Memory | Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / MT/s memory modules <br> Dual channel memory architecture <br> Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules <br> Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules | |
| Chipset | ||
| Chipset | AMD B650 | |
| Motherboard | ||
| Graphics | ntegrated Graphics Processor: <br> 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz <br> * Support for DisplayPort 1.4 version and HDR. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz <br> * Support for HDMI 2.1 version and HDCP 2.3. <br> ** Support native HDMI 2.1 TMDS compatible ports. Support for up to 3 displays at the same time | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector <br> 1 x 8-pin ATX 12V power connector <br> 1 x CPU fan header <br> 3 x system fan headers <br> 1 x addressable LED strip header <br> 1 x RGB LED strip header <br> 2 x M.2 Socket 3 connectors <br> 4 x SATA 6Gb/s connectors <br> 1 x front panel header <br> 1 x front panel audio header <br> 1 x USB Type-C header, with USB 3.2 Gen 2 support <br> 1 x USB 3.2 Gen 1 header <br> 2 x USB 2.0/1.1 headers <br> 1 x serial port header <br> 1 x reset button <br> 1 x reset jumper <br> 1 x Clear CMOS jumper | |
| Slots | 4 DIMMs | |
| Supported Storage | CPU: 2 x M.2 connectors (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) Chipset: 4 x SATA 6Gb/s connectors | |
| USB Port | CPU: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support <br> 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel CPU + USB 2.0 Hub: <br> 4 x USB 2.0/1.1 ports on the back panel Chipset: <br> 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header <br> 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) <br> 4 x USB 2.0/1.1 ports available through the internal USB headers | |
| Connector & Ports | ||
| HDMI | 1x HDMI | |

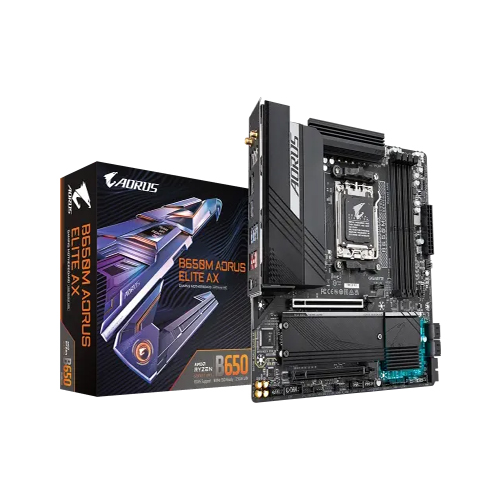

The GIGABYTE B650M AORUS ELITE AX DDR5 AMD AM5 Micro-ATX Motherboard is a high-performance and feature-rich motherboard designed to deliver exceptional computing power for modern users. Whether you're a gamer, content creator, or professional working with demanding applications, this motherboard ensures speed, stability, and long-term reliability. Built on the latest AMD AM5 socket, it supports the newest Ryzen processors, giving you access to cutting-edge performance and efficiency. With support for DDR5 memory, the motherboard delivers faster data transfer, improved bandwidth, and enhanced responsiveness, making multitasking and high-end workloads run effortlessly. The inclusion of PCIe 4.0 technology enables superior speed for graphics cards, NVMe SSDs, and other peripherals, ensuring your system is ready for the next generation of performance-intensive components. The GIGABYTE B650M AORUS ELITE AX stands out with its advanced thermal design, which includes enlarged heatsinks, high-quality thermal pads, and multiple fan headers. These features work together to keep your system cool even during extended gaming or rendering sessions, preventing thermal throttling and maintaining stable performance. For connectivity, the motherboard features Wi-Fi 6E, offering faster, more reliable wireless performance with lower latency—ideal for online gaming, streaming, or cloud-based workflows. The board also provides multiple USB ports, high-speed networking, and efficient power delivery to support all your modern devices. With its stylish black and silver design, the motherboard not only performs well but also enhances the overall look of your PC build. Its compact Micro-ATX form factor ensures compatibility with a wide range of cases, making it a versatile choice for both small and medium-sized builds. Overall, the GIGABYTE B650M AORUS ELITE AX DDR5 motherboard offers outstanding value with its blend of next-gen performance, cooling efficiency, seamless connectivity, and durable construction—making it an excellent upgrade for any desktop system.
The latest price of GIGABYTE B650M AORUS ELITE AX DDR5 AMD AM5 Micro-ATX Motherboard in Bangladesh is 29,700৳ You can buy the GIGABYTE B650M AORUS ELITE AX DDR5 AMD AM5 Micro-ATX Motherboard at best price from our Website or visit any of our showrooms.
