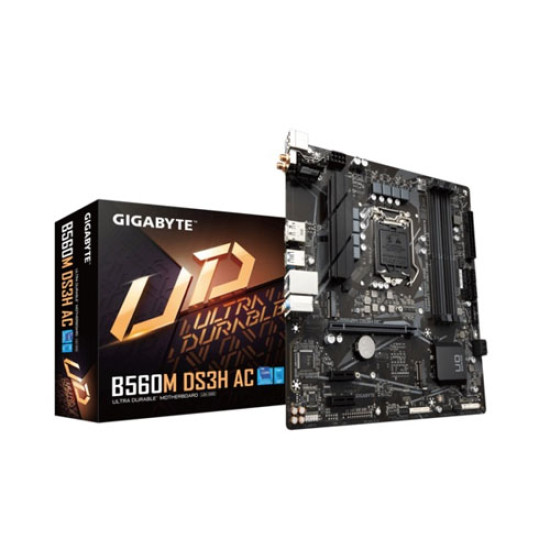

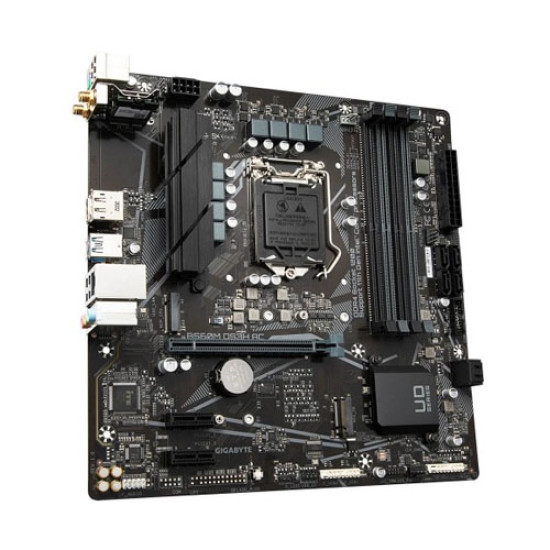

Gigabyte B560M DS3H AC Intel 10th and 11th Gen Micro ATX Motherboard

Gigabyte B560M DS3H AC Intel 10th and 11th Gen Micro ATX Motherboard

Stock: In Stock
Brand: Gigabyte
Model: B560M DS3H AC

Based on 0 reviews. - Write a review

13,500৳

Ex Tax: 13,500৳

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

Key Features

- Supports 11th and 10th Gen Intel Core Processors
- Dual Ultra Fast NVMe PCIe 4.0 3.0 x4 M.2
- Dual Channel DDR4
- Dual Band 802 11ac Wireless

View more details

Basic Information
Supported CPU	11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors
Chipset	Intel B560 Express Chipset
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Expansion Slots
PCI	1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 4.0 standard.) (Note) 2 x PCI Express x1 slots (The PCIEX1 slot conforms to PCI Express 3.0 standard.)
M.2 Socket	1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU) (Note) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/ x2 SSD support) (M2A_SB)
Memory Specifications
Type	Dual-channel memory architecture
Slots	4 x DDR4 DIMM
Supported Memory	11th Generation Intel Core i9/i7/i5 processors: Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz 10th Generation Intel Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel Core i5/i3/Pentium/Celeron processors: Support for DDR4 2666/2400/2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual-channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Max. Memory	128 GB (32 GB single DIMM capacity)
Graphics
Graphics	Integrated Graphics Processor-Intel HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 * When the D-Sub port and DisplayPort are connected at the same time, images will output from the DisplayPort only. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3.
Connector & Ports
HDMI	1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
USB (s)	Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+USB 2.0 Hub: 2 x USB 2.0/1.1 ports on the back panel
LAN Port (s)	Realtek GbE LAN chip (1000/100 Mbit)
Supported Storage	1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU) (Note) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/ x2 SSD support) (M2A_SB) 6 x SATA 6Gb/s connectors Intel Optane Memory Ready
Audio	3 x audio jacks
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 6 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Clear CMOS jumper 1 x Q-Flash Plus button
D-Sub (s)	Yes
Others Information
Special Features	Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
Warranty Information
Manufacturing Warranty	3 years

Gigabyte B560M DS3H AC ATX Motherboard

The Gigabyte B560M DS3H AC Intel 10th and 11th Gen Micro ATX Motherboard is a powerful and reliable foundation for building a modern Intel-based PC. Designed with the Intel B560 Express chipset, this motherboard supports a wide range of processors, including 10th and 11th-generation Intel Core i9, i7, i5, i3, Pentium, and Celeron CPUs, making it suitable for gaming, productivity, and everyday computing. Its Micro ATX form factor (24.4cm x 24.4cm) ensures easy compatibility with compact and standard PC cases. This motherboard features a dual-channel DDR4 memory architecture with four DIMM slots, supporting up to 128GB RAM and ultra-high overclocked speeds up to DDR4 5333 MHz (O.C.) for 11th Gen processors. With XMP support, users can easily unlock maximum memory performance. For graphics and expansion, it offers a PCIe 4.0 x16 slot for modern GPUs, along with two PCIe 3.0 x1 slots for additional expansion cards. Storage performance is equally impressive with dual M.2 slots—one supporting PCIe 4.0 SSDs for ultra-fast data transfer and another supporting SATA and PCIe 3.0 SSDs—along with six SATA 6Gb/s connectors and Intel Optane Memory support. Integrated Intel HD Graphics output is supported through HDMI and DisplayPort, delivering high-resolution visuals up to 4K. Connectivity is enhanced with USB 3.2 Gen 1 Type-C, multiple USB ports, Realtek Gigabit LAN, and high-definition Realtek audio for immersive sound quality. The board also includes RGB and addressable LED headers with RGB Fusion support for stylish customization. Advanced features like Q-Flash Plus, Smart Backup, Game Boost, and EasyTune provide greater control and convenience. Backed by a 3-year manufacturing warranty, the Gigabyte B560M DS3H AC motherboard delivers stability, performance, and long-term reliability for any Intel PC build.

Buying Guideline of Gigabyte B560M DS3H AC ATX Motherboard

Choosing the right motherboard is essential for building a stable and high-performance PC. The Gigabyte B560M DS3H AC offers an excellent balance of compatibility, speed, and modern features for Intel users, making it a smart choice for gaming, office, and professional setups.

Buying Guidelines:

Processor Compatibility – Ensure you are using 10th or 11th Gen Intel processors for full chipset support.
Form Factor Match – Confirm your PC case supports Micro ATX motherboards.
Memory Support – Choose DDR4 RAM with XMP support to achieve higher performance.
Graphics Requirement – Ideal for users planning to install PCIe 4.0 compatible GPUs.
Storage Needs – Select fast NVMe SSDs to utilize the PCIe 4.0 M.2 slot for maximum speed.
Connectivity Demand – Suitable if you need USB Type-C, multiple USB ports, and Gigabit LAN.
Expansion Options – Check PCIe slots if you plan to add capture cards, sound cards, or Wi-Fi adapters.
Cooling Setup – Ensure proper airflow and fan connections for system stability.
RGB Customization – Perfect for users who prefer stylish RGB lighting control.

Build Smarter with Gigabyte B560M DS3H AC

Upgrade your PC with a motherboard that delivers reliability, performance, and future-ready features. This model is perfect for gamers, creators, and professionals who demand smooth performance and long-term stability. Explore more premium options from our Motherboard and GIGABYTE (Intel) collections to complete your dream build with confidence. Choose quality, performance, and trusted service today with Speed Tech — your ultimate destination for genuine computer hardware.
