Gigabyte B550M Aorus Elite AMD Micro ATX Motherboard Gigabyte B550M Aorus Elite AMD Micro ATX Motherboard Gigabyte B550M Aorus Elite AMD Micro ATX Motherboard Gigabyte B550M Aorus Elite AMD Micro ATX Motherboard

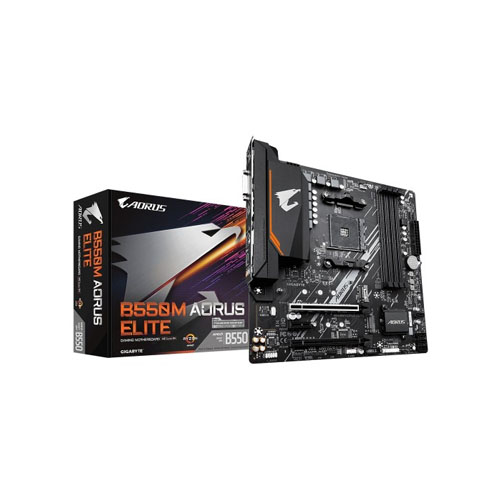

Gigabyte B550M Aorus Elite AMD Micro ATX Motherboard

Regular Price: 16,900৳
Status: In Stock
Model: B550M Aorus Elite
Brand: : Gigabyte

Key Features

  • AMD Ryzen 5000/4000G Series and AMD Ryzen 3rd Generation Processors
  • Blazing Fast 2.5GbE LAN
  • Q-Flash Plus Update BIOS
  • Ultra Durable PCIe 4.0 x16 Slot
View More Info

Payment Options

  • Specification
  • Description
  • Questions (0)
  • Reviews (0)

Specification

Basic Information
Supported CPU AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
Chipset AMD B550
BIOS 1 x 256 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Expansion Slots
PCI 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:<br> - 3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode<br> - New Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode<br> 1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:<br> - Supporting PCIe 3.0 x2 mode<br> 1 x PCI Express x16 slot (PCIEX1_2), integrated in the Chipset:<br> - Supporting PCIe 3.0 x1 mode<br> 1 x PCI Express x1 slot (PCIEX1_1), integrated in the Chipset:<br> - Supporting PCIe 3.0 x1 mode
M.2 Socket 1‎ x PCI Express x16 slot (PCIEX16), integrated into the CPU:<br> 3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode<br> 3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode<br> 1 x PCI Express x16 slot (PCIEX4), integrated into the Chipset:<br> Supporting PCIe 3.0 x4 mode<br> 1 x PCI Express x1 slot (PCIEX1), integrated into the Chipset:<br> Supporting PCIe 3.0 x1 mode
Memory Specifications
Type Dual-Channel Architecture
Slots 4 x DDR4 memory slots
Supported Memory 3rd Gen AMD Ryzen Processors:<br> Support for DDR4 4000(O.C.) / 3600(O.C.) / 3333(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz <br>memory modules<br> New Generation AMD Ryzen with Radeon Graphics processors:<br> Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) <br>/3200 /2933 /2667 /2400 /2133 MHz memory modules
Max. Memory support up to 128GB
Graphics
Graphics Integrated into the 3rd Generation AMD Ryzen with Radeon Graphics processors:<br> 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz<br> 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Max Shared Memory 16 GB
Connector & Ports
HDMI x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
USB (s) 4 x USB 3.2 Gen 1 ports on the back panel<br> Chipset:<br> 2 x USB 3.2 Gen 1 ports available through the internal USB header<br> 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal <br>USB header)
LAN Port (s) Realtek GbE LAN chip (1000 Mbit/100 Mbit)
Supported Storage 1‎ x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type <br>2242/2260/2280/22110 SSDs:<br> 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs<br> 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 <br>x4/x2 SSDs<br> 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type <br>2242/2260/2280 SSDs:<br> Supporting SATA and PCIe 3.0 x2 SSDs<br> 4 x SATA 6Gb/s connectors, integrated in the Chipset:<br> Support for RAID 0, RAID 1, and RAID 10
Audio Realtek ALC887 codec<br> High Definition Audio<br> 2/4/5.1/7.1-channel
Internal I/O Ports 1 x 24-pin ATX main power connector<br> 1 x 8-pin ATX 12V power connector<br> 1 x CPU fan header<br> 2 x system fan headers<br> 2 x addressable LED strip headers<br> 2 x RGB LED strip headers<br> 1 x CPU cooler LED strip/RGB LED strip header<br> 2 x M.2 Socket 3 connectors<br> 4 x SATA 6Gb/s connectors<br> 1 x front panel header<br> 1 x front panel audio header<br> 1 x USB 3.2 Gen 1 header<br> 1 x USB 2.0/1.1 header<br> 1 x serial port header<br> 1 x Clear CMOS jumper<br> 1 x Q-Flash Plus button
DVI-D (s) 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
Others Information
Special Features Support for APP Center<br> @BIOS<br> EasyTune<br> Fast Boot<br> Game Boost<br> ON/OFF Charge<br> RGB Fusion<br> Smart Backup<br> System Information Viewer<br> Support for Q-Flash Plus<br> Support for Q-Flash<br> Support for Xpress Install
Warranty Information
Manufacturing Warranty 03 years warranty

Description

FEATURES:

  • Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
  • 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
  • Ultra Durable™ PCIe 4.0 Ready x16 Slot
  • Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors
  • High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
  • GIGABYTE Exclusive 8118 Gaming GbE LAN
  • Rear HDMI & DVI Support
  • RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
  • Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
  • Anti-Sulfur Resistors Design

Gigabyte B550M Aorus Elite AMD Micro ATX Motherboard

GIGABYTE B550 motherboards maximize your PC's potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.

The benefits of AMD StoreMI:

  • Making the PC experience fast, smooth and easy
  • Optimizing computer responsiveness from system boot to application launch
  • Offering SSD performance with HDD capacity at an affordable cost
  • Quickly accessing key files by automatically learning users' computing behaviors

PERFORMANCE

GIGABYTE AORUS series motherboards use a 5+3 phases pure digital PWM + Low RDS(on) MOSFETs design to support the 3rd Gen AMD Ryzen™ CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.

CONNECTIVITY
Dual NVMe PCIe 4.0*/3.0 M.2 Connectors

With NVMe PCIe 4.0*/3.0 x4 and PCIe 3.0 x2 M.2 connectors onboard, GIGABYTE Motherboards bring users to experience NVMe mode or SATA mode connectivity for M.2 SSD devices. Delivering up to 64 Gb/s data transfer speed, the dual M.2 connectors design provides an ideal storage solution while also supporting in RAID modes.

Exclusive Realtek 8118 Gaming LAN
High Speed Gigabit LAN with Automatic Bandwidth Allocation

Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.

HDMI 2.1 for 4K / 60P / 21:9 / HDCP 2.3 Support

HDMI 2.1, which is backwards compatible with HDMI 2.0/ 1.4 and offering 48 Gb/s of bandwidth – twice times more than previous generation. This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), Full HDR and HDCP 2.3 support, to offer the best visual experience for viewers.

Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

RGB FUSION 2.0

With B550 Motherboards, RGB Fusion 2.0 is even better with Addressable LEDs. RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips* for their PC build. Already feature filled with colors and patterns, RGB Fusion 2.0 are now upgraded to improve the Addressable LED support. With external Addressable LED strips, where each LED is digitally addressable that users can experience even more patterns, styles, and illuminations.
With B550 Motherboards support the external 5V Addressable LED lighting strips and up to 300 LED lights. RGB Fusion 2.0 with Addressable LEDs comes with new patterns and various speed settings with more to come.

High-End Audio Capacitors

GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard

GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.



What is the price of Gigabyte B550M Aorus Elite AMD Micro ATX Motherboard?

The latest price of Gigabyte B550M Aorus Elite AMD Micro ATX Motherboard in Bangladesh is 16,900৳ You can buy the Gigabyte B550M Aorus Elite AMD Micro ATX Motherboard at best price from our Website or visit any of our showrooms.
