| Basic Information |
| Supported CPU | LGA1700 socket: Support for the 14th 13th and 12th Generation Intel Core,
Pentium Gold and Celeron Processors
L3 cache varies with the CPU |
| Chipset | Intel B760 Express Chipset |
| BIOS | 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Audio | Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out |
| Expansion Slots |
| PCI | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2) |
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB)
4 x SATA 6Gb/s connectors |
| Memory |
| Type | DDR5 |
| Slots | 4 |
| Supported Memory | Support for DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules |
| Maximum Memory | 128GB |
| Graphics |
| Graphics | Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz |
| Connector & Ports |
| HDMI | 1x HDMI |
| Display Port (s) | 1x DisplayPort |
| USB (s) | 1 x USB Type-C port, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 3.2 Gen 1 port
4 x USB 2.0/1.1 ports |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
1 x RJ-45 port |
| Wireless Communication module | Intel Wi-Fi 6E AX211
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB)
4 x SATA 6Gb/s connectors |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Audio | 1 x front panel audio header
2 x audio jacks |
| Internal I/O Ports | 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
| Others |
| Special Features | 2 x addressable LED strip headers
2 x RGB LED strip headers
iTE I/O Controller Chip
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus |
| Warranty Information |
| Manufacturing Warranty | 3 years |

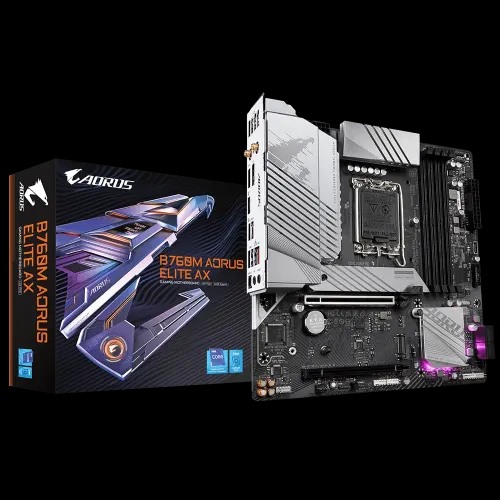

GIGABYTE B760M AORUS ELITE AX DDR5 mATX Motherboard
GIGABYTE B760M AORUS ELITE AX DDR5 mATX motherboard is a compact yet powerful platform designed for gamers and enthusiasts who demand high performance in a smaller form factor. This motherboard supports Intel's 12th and 13th generation processors, making it a versatile choice for building a modern and efficient PC. One of the key features of the B760M AORUS ELITE AX is its support for DDR5 memory, which brings significant improvements in speed and efficiency over DDR4. This ensures faster data processing, enhanced multitasking capabilities, and overall improved system performance. The motherboard supports up to 128GB of DDR5 RAM, providing ample headroom for memory-intensive applications and future upgrades. The motherboard's connectivity options are impressive, featuring PCIe 5.0 slots for the latest graphics cards and high-speed NVMe storage devices. This allows users to leverage the latest hardware advancements, resulting in faster data transfer rates and better overall system performance. Additionally, the B760M AORUS ELITE AX includes multiple M.2 slots with thermal guards, ensuring efficient heat dissipation to maintain optimal performance of SSDs. Networking is a strong suit of the B760M AORUS ELITE AX, with built-in Wi-Fi 6E and 2.5GbE LAN. The Wi-Fi 6E support extends to the 6GHz band, providing a more stable and faster wireless connection with reduced interference, ideal for gaming, streaming, and other bandwidth-intensive activities. The motherboard's design is both practical and aesthetically pleasing, featuring a robust power delivery system and advanced cooling solutions. The enlarged heatsinks and efficient thermal design help keep the system cool under heavy loads, enhancing stability and longevity. Audio quality is also a highlight, with high-quality audio components and advanced features delivering immersive sound for gaming and multimedia experiences. In summary, the GIGABYTE B760M AORUS ELITE AX DDR5 mATX motherboard is an excellent choice for building a high-performance, compact PC. It offers the latest technologies, robust connectivity options, and efficient cooling solutions, making it a top pick for gamers and power users looking for a reliable and powerful motherboard in a smaller form factor.
