| Wireless |
| Standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Signal Rate | Up to 300Mbps |
| Frequency Range | 2.4-2.4835GHz |
| Transmit Power | 20dBm(MAX) |
| Data Transfer Rates | 802.11n:
40MHz (300Mbps, 270Mbps, 240Mbps, 180Mbps, 120Mbps, 90Mbps, 60Mbps, 30Mbps)
20MHz (144Mbps, 130Mbps, 115Mbps, 86Mbps, 57Mbps, 43Mbps, 28Mbps, 14Mbps) (Auto-Sense)
801.11g:
(54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 11Mbps, 9Mbps, 6Mbps)
802.11b:
(11Mbps, 9Mbps, 6Mbps, 5.5Mbps, 2Mbps, 1Mbps) |
| Wireless Modes | AP, Repeater, AP+WDS, WDS, Client, Multi-SSID |
| Wireless Security | 64/128-bit WEP,
WPA-PSK/WPA2-PSK (TKIP/AES)
SSID Broadcast Enable/Disable
Wireless MAC Filtering |
| Hardware |
| Standards | IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX |
| Interfaces | 1 * 10/100Mbps Auto MDI/MDIX RJ45 WAN port
4 * 10/100Mbps Auto MDI/MDIX RJ45 LAN port |
| LED Indicators | PWR, WLAN, LAN1-LAN4, WAN, WPS |
| Buttons | WPS, Default |
| Antennas | 3* 5dBi Fixed Antenna |
| Power Supply | DC 9V/500mA (Output) |
| Software |
| WAN Type | DHCP, Static IP, PPPoE, L2TP, PPTP, Dual Access, WISP |
| Port Forwarding | Virtual Servers, Port Triggering, UPnP, DMZ, FTP Private Port |
| QoS | WMM, Bandwidth Control |
| Access Control | IP/MAC/Domain Filtering |
| VPN Pass-through | PPTP, L2TP, IPSec |
| Others | IPTV, Dynamic DNS, Static Routing, WOL, Backup & Restore, Firmware Upgrade |
| Others |
| Certification | FCC, CE |
| Environment | Operating Temperature: 0℃~40℃
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |

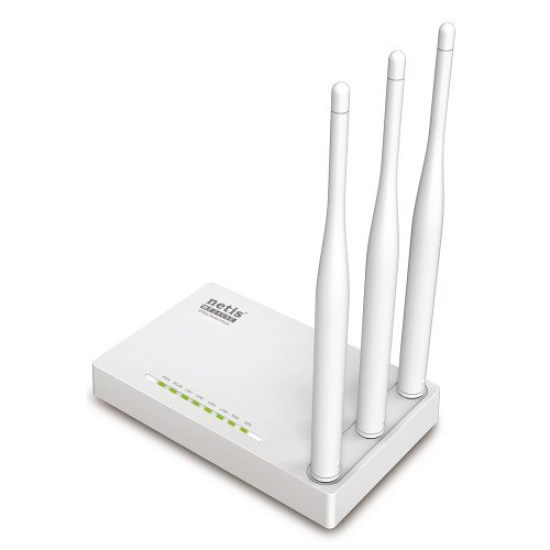

| Package | 1* WF2409E
1* 9V/500mA Power Adapter
1* Ethernet Cable
1* Quick Installation Guide (Multilingual) |
