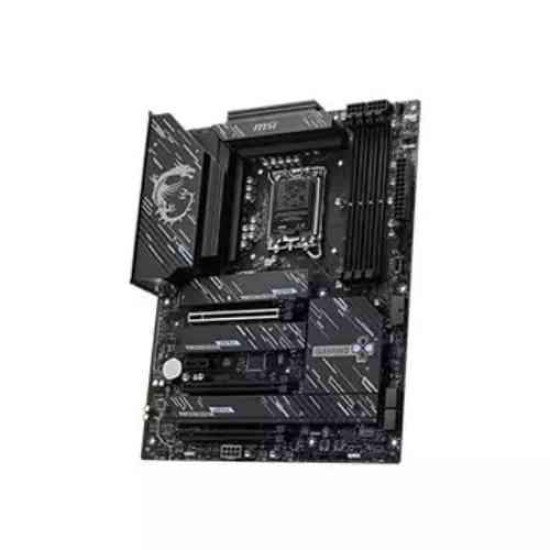

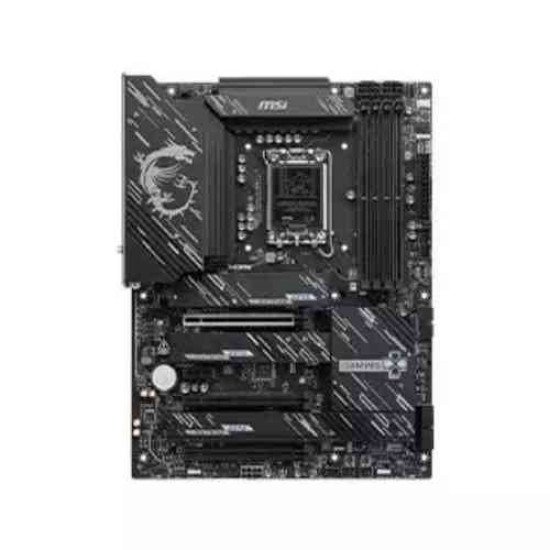

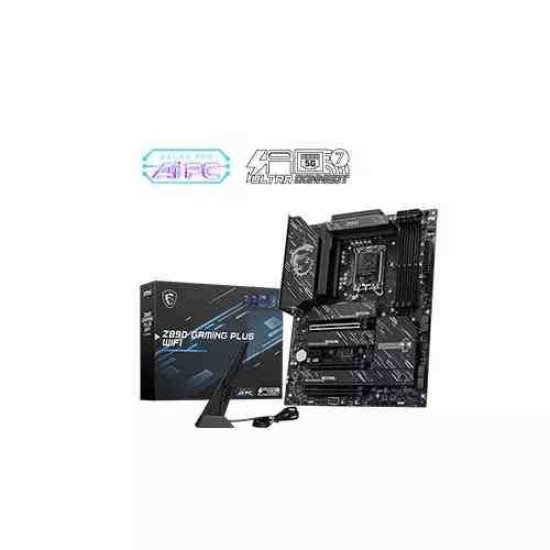

MSI Z890 GAMING PLUS WIFI LGA 1851 DDR5 intel Motherboard

Stock: In Stock
Brand: MSI
Model: Z890 GAMING PLUS WIFI

Based on 0 reviews. - Write a review

45,300৳

Ex Tax: 45,300৳

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

Key Features

- Chipset INTEL Z890
- Memory 4x DDR5 UDIMM
- Realtek ALC897 Codec
- 1x Thunderbolt4 ports

View more details

Key Features
LED Type	4x EZ Debug LED
Wireless	Intel® Killer™ BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM
Budget PC Specification
CPU	Supports Intel Core Ultra Processors (Series 2) LGA 1851
Main Feature
Port	1x Thunderbolt4 ports (Rear) Supports up to 40Gbps transfer rate with Thunderbolt devices Supports up to 20Gbps transfer rate with USB4 devices Supports up to 10Gbps transfer rate with USB 3.2 devices Supports up to 5V/3A,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Supports up to 8K display
Basic Information
Storage	4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
Form Factor	ATX 243.84mmx304.8mm
Operating System	Support for Windows 11 64-bit
Memory Specifications
Slots	3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
Chipset
Chipset	INTEL Z890
Graphics
Graphics	1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort Thunderbolt™ 4 ports, supporting DisplayPort 1.4 over USB Type-C®, with a maximum resolution of 4K 120Hz / 8K 60Hz*
Motherboard

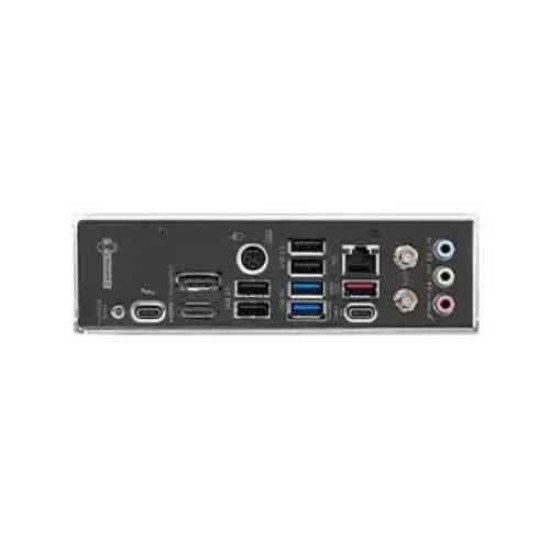

External I/O Ports	DisplayPort Keyboard / Mouse USB 2.0 5G LAN Wi-Fi / Bluetooth Audio Connectors Flash BIOS Button Thunderbolt™ 4 40Gbps (Type-C) HDMI™ USB 2.0 USB 5Gbps Type A ports USB 10 Gbps Type C ports USB 10 Gbps Type A ports
Memory	4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 4800+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports Intel® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM
Connectivity
Others	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
USB	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front)
Connector & Ports
Audio	Realtek® ALC897 Codec 7.1-Channel High Definition Audio
Internal I/O Ports	1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
Network & Connectivity
LAN	Intel Killer E5000 5Gbps LAN
Warranty Information
Warranty	03 years

MSI Z890 GAMING PLUS WIFI LGA 1851 DDR5 intel Motherboard

The MSI Z890 GAMING PLUS WIFI motherboard is engineered for gamers, creators, and PC enthusiasts who demand exceptional performance, reliability, and next-generation connectivity. Designed for Intel® Core™ Ultra Series 2 processors and built around the advanced Intel Z890 chipset, this ATX board delivers the perfect blend of speed, stability, and expandability for high-end systems. With its LGA 1851 socket, it supports the latest computing architecture, enabling cutting-edge processing power for gaming, multitasking, and content creation. Equipped with DDR5 memory support up to 256GB, the Z890 GAMING PLUS WIFI is capable of handling memory speeds up to an impressive 9200+ MT/s through overclocking. Its optimized dual-controller dual-channel design and support for Intel XMP 3.0 ensure fast, stable memory performance for demanding applications. Storage capabilities are extensive, featuring four M.2 slots, including a PCIe 5.0 x4 slot sourced directly from the CPU for ultra-fast NVMe SSDs. Additional PCIe 4.0 M.2 slots and four SATA 6Gbps ports offer versatile options for high-capacity and high-speed storage configurations, with full support for RAID 0/1/5/10. The motherboard includes strong graphics output options with HDMI 2.1, DisplayPort 1.4, and USB Type-C DisplayPort via Thunderbolt 4, supporting up to 8K resolution. It also integrates premium networking powered by Intel Killer E5000 5Gbps LAN and Killer Wi-Fi 7, delivering low-latency, high-speed connectivity ideal for gaming and streaming. Additional features such as Realtek® ALC897 7.1-channel HD audio, multiple PCIe expansion slots, abundant USB ports including USB 20Gbps Type-C, and MSI’s signature EZ Debug LEDs enhance system building and troubleshooting. With a robust power delivery system and comprehensive cooling support, the MSI Z890 GAMING PLUS WIFI is built to handle high-performance hardware with ease, making it a top choice for modern gaming PCs.

Features of MSI Z890 GAMING PLUS WIFI Motherboard

CPU Support: Install Intel Core Ultra Series 2 (LGA 1851)
Memory: Insert 4x DDR5 UDIMM up to 256GB, enable XMP 3.0, overclock up to 9200+ MT/s
Storage: Install 4x M.2 NVMe drives (PCIe 5.0/4.0) + 4x SATA 6G, configure RAID 0/1/5/10
Graphics Output: Connect via HDMI 2.1 (4K60), DisplayPort 1.4 (4K60), or Type-C Thunderbolt 4 (8K60 / 4K120)
Networking: Connect LAN (5Gbps) or Wi-Fi 7 (up to 5.8Gbps), enable Bluetooth 5.4
Audio: Configure 7.1-channel HD Audio via Realtek ALC897
Expansion Slots: Use PCIe 5.0 x16 for GPU, PCIe 4.0 x4/x1 for additional cards
USB & Thunderbolt: Connect devices via USB 2.0 / 5Gbps / 10Gbps / 20Gbps or Thunderbolt 4 ports
Internal I/O: Attach fans, RGB, TPM, front panel connectors, and power connectors (CPU, ATX, PCIe)
Form Factor: Install in ATX case (243.84mm x 304.8mm)
LED & Debug: Check EZ Debug LEDs for troubleshooting
Operating System: Install Windows 11 64-bit
