| Basic Information | ||
| Supported CPU | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors<br> LGA 1700<br> | |
| Chipset | INTEL Z790 | |
| Form Factor | ATX<br> 243.84mmx304.8mm | |
| Audio | Realtek ALC897 Codec<br> 7.1-Channel High Definition Audio<br> Supports S/PDIF output | |
| Type | DDR5 | |
| Expansion Slots | ||
| PCI | 3x PCI-E x16 slot<br> 1x PCI-E x1 slot<br> PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)<br> PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)<br> PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)<br> PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) | |
| M.2 Socket | 4x M.2 slots | |
| Memory Specifications | ||
| Slots | 4 x DIMM | |
| Supported Memory | Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency:<br> • 1DPC 1R Max speed up to 7200+ MHz<br> • 1DPC 2R Max speed up to 6600+ MHz<br> • 2DPC 1R Max speed up to 6400+ MHz<br> • 2DPC 2R Max speed up to 5600+ MHz<br> Supports Intel XMP3.0 OC<br> Supports Dual-Controller Dual-Channel mode<br> Supports non-ECC, un-buffered memory | |
| Graphics | ||
| Graphics | 1x HDMI<br> Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz*<br> 1x DisplayPort<br> Support DP 1.4, maximum resolution of 8K 60Hz* | |
| Connector & Ports | ||
| HDMI | 1x HDMI 2.1 | |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices<br> Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices | |
| Display Port (s) | 1x DisplayPort 1.4 | |
| USB (s) | 4x USB 2.0 (Rear)<br> 4x USB 2.0 (Front)<br> 2x USB 3.2 Gen1 Type A (Rear)<br> 4x USB 3.2 Gen1 Type A (Front)<br> 1x USB 3.2 Gen2 Type A (Rear)<br> 1x USB 3.2 Gen2 Type C (Front)<br> 1x USB 3.2 Gen2x2 Type C (Rear)<br> | |
| LAN Port (s) | Intel 2.5Gbps LAN | |
| Wireless Communication module | Intel Wi-Fi 6E<br> The Wireless module is pre-installed in the M.2 (Key-E) slot<br> Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps<br> Supports 802.11 a/ b/ g/ n/ ac/ ax<br> Supports Bluetooth 5.3, FIPS, FISMA | |
| Supported Storage | 4x M.2<br> M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices<br> M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices<br> M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices<br> M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices<br> 6x SATA 6G | |
| Internal I/O Ports | 1x Power Connector(ATX_PWR)<br> 2x Power Connector(CPU_PWR)<br> 1x CPU Fan<br> 1x Pump Fan<br> 6x System Fan<br> 2x Front Panel (JFP)<br> 1x Chassis Intrusion (JCI)<br> 1x Front Audio (JAUD)<br> 1x TBT connector (JTBT, supports RTD3)<br> 1x Tuning Controller connector(JDASH)<br> 2x Addressable V2 RGB LED connector (JARGB_V2)<br> 2x RGB LED connector(JRGB)<br> 4x USB 2.0 ports<br> 4x USB 3.2 Gen1 Type A ports<br> 1x USB 3.2 Gen2 Type C ports<br> 1x USB4 card connector (JTBT_U4_1, supports RTD3)<br> | |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Others Information | ||
| Special Features | LED FEATURE: 4x EZ Debug LED | |
| Warranty Information | ||
| Warranty | 3 years | |

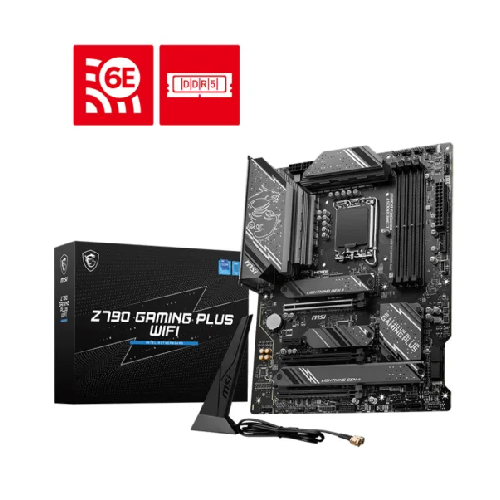

The MSI Z790 GAMING PLUS WIFI DDR5 motherboard is engineered for gamers, creators, and power users seeking top-tier performance on Intel’s latest desktop platforms. Designed with the versatile LGA 1700 socket, it supports Intel 14th, 13th, and 12th Gen Core processors, along with Pentium Gold and Celeron CPUs, ensuring excellent upgrade flexibility. Built on the advanced Intel Z790 chipset, this ATX motherboard delivers a robust foundation with enhanced connectivity, fast storage support, and superior stability for high-performance computing. Equipped with four DDR5 DIMM slots, the motherboard supports memory speeds up to 7200+ MHz (OC), providing exceptional bandwidth for gaming, multitasking, and content creation. The board includes four M.2 slots, three supporting PCIe 4.0 x4 and one supporting PCIe 4.0 x4/SATA, allowing users to configure multiple high-speed NVMe SSDs. Additionally, six SATA 6Gb/s ports ensure compatibility with traditional storage devices. RAID support for both SATA and NVMe storage enhances data performance and protection. For expansion, the MSI Z790 GAMING PLUS WIFI offers three PCIe x16 slots, including one PCIe 5.0 slot for next-generation GPUs. Connectivity is robust with USB 3.2 Gen2x2 Type-C, multiple USB 3.2 Gen1 ports, and USB 2.0 for legacy devices. Networking is powered by Intel 2.5Gb LAN and Intel Wi-Fi 6E, delivering fast, reliable wired and wireless performance. Bluetooth 5.3 further expands wireless device support. The motherboard also includes Realtek ALC897 7.1-channel audio, offering immersive sound for gaming or media. MSI’s signature features such as EZ Debug LEDs, multiple RGB headers, and advanced cooling support ensure convenient troubleshooting, aesthetic customization, and optimal thermal performance. With a 3-year warranty, this motherboard is a powerful, future-ready platform for high-end PC builds.
The latest price of MSI Z790 GAMING PLUS WIFI DDR5 Intel®Z790 Chipset 14th/ 13th/ 12th Gen LGA 1700 ATX Motherboard in Bangladesh is 31,600৳ You can buy the MSI Z790 GAMING PLUS WIFI DDR5 Intel®Z790 Chipset 14th/ 13th/ 12th Gen LGA 1700 ATX Motherboard at best price from our Website or visit any of our showrooms.
