| Basic Information | ||
| Supported CPU | Supports Intel Core Ultra Processors (Series 2) LGA 1851 | |
| Form Factor | ATX<br> 243.84mmx304.8mm | |
| Audio | Realtek ALC897 Codec<br> 7.1-Channel High Definition Audio | |
| Type | DDR5 | |
| Others | 4x EZ Debug LED | |
| Expansion Slots | ||
| PCI | 4x PCI-E x16 slot<br> PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)<br> PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)<br> PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)<br> PCI_E4 Gen PCIe 4.0 supports up to x4 (From CPU) | |
| M.2 Socket | 3x M.2<br> M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices<br> M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices<br> M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices | |
| Memory Specifications | ||
| Slots | 4x UDIMM | |
| Supported Memory | Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s<br> Max. overclocking frequency:<br> • 1DPC 1R Max speed up to 8800+ MT/s<br> • 1DPC 2R Max speed up to 7200+ MT/s<br> • 2DPC 1R Max speed up to 6400+ MT/s<br> • 2DPC 2R Max speed up to 5600+ MT/s<br> Supports Intel® POR Speed and JEDEC Speed<br> Supports Memory Overclocking and Intel® XMP 3.0<br> Supports Dual-Controller Dual-Channel mode<br> Supports Non-ECC, Un-buffered memory<br> Supports CUDIMM | |
| Chipset | ||
| Chipset | INTEL Z890 | |
| Graphics | ||
| Graphics | 1x HDMI™<br> Support HDMI™ 2.1, maximum resolution of 4K 60Hz*<br> 1x DisplayPort<br> Support DisplayPort 1.4, maximum resolution of 4K 60Hz*<br> 1x Type-C DisplayPort<br> Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* | |
| Motherboard | ||
| Supported Storage | 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G | |
| Connector & Ports | ||
| HDMI | 1x HDMI 2.1 | |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices<br> Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices | |
| Display Port (s) | 1x DisplayPort<br> 1x Type-C DisplayPortV Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz | |
| USB (s) | 4x USB 2.0 (Front)<br> 6x USB 5Gbps Type A (Rear)<br> 2x USB 5Gbps Type A (Front)<br> 1x USB 20Gbps Type C (Rear)<br> 1x USB 20Gbps Type C (Front) | |
| LAN Port (s) | Realtek 8125D 2.5Gbps LAN | |
| Wireless Communication module | Intel Wi-Fi 7<br> The Wireless module is pre-installed in the M.2 (Key-E) slot<br> Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps<br> Supports 802.11 a/ b/ g/ n/ ac/ ax/ be<br> Supports Bluetooth 5.4, MLO, 4KQAM | |
| Audio | 1x Front Audio (JAUD) | |
| Internal I/O Ports | 1x Thunderbolt5 card connector(JTBT5, support RTD3)<br> 1x Power Connector(ATX_PWR)<br> 2x Power Connector(CPU_PWR)<br> 1x Power Connector(PCIE_PWR 8pin)<br> 1x CPU Fan<br> 1x Combo Fan (Pump_Sys Fan)<br> 4x System Fan<br> 1x EZ Conn-header (JAF_1)<br> 2x Front Panel (JFP)<br> 1x Chassis Intrusion (JCI)<br> 1x Front Audio (JAUD)<br> 1x Tuning Controller connector(JDASH)<br> 3x Addressable V2 RGB LED connector (JARGB_V2)<br> 1x RGB LED connector(JRGB)<br> 1x TPM pin header(Support TPM 2.0)<br> 4x USB 2.0 ports<br> 2x USB 5Gbps Type A ports<br> 1x USB 20Gbps Type C ports<br> | |
| Warranty Information | ||
| Warranty | 3 Year warranty | |

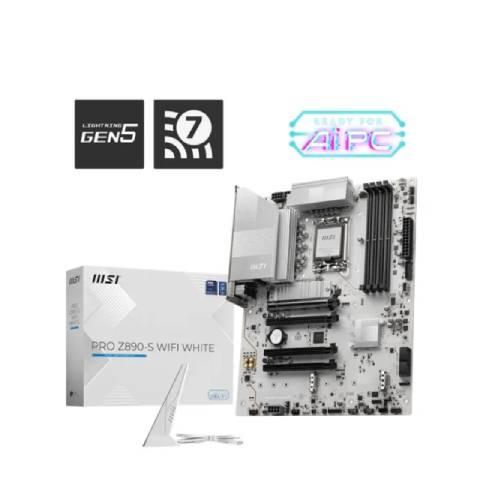

The MSI PRO Z890-S WIFI WHITE is a high-performance ATX motherboard engineered to support next-generation computing with outstanding stability, connectivity, and expandability. Built on the advanced Intel Z890 chipset and featuring the LGA 1851 socket, this board is fully compatible with Intel Core Ultra Series 2 processors, making it ideal for power users, gamers, and creators seeking cutting-edge performance. Featuring a refined white aesthetic, the motherboard delivers both style and capability. Its robust memory architecture supports DDR5 up to 8800+ MT/s (OC) and a maximum capacity of 256GB, ensuring ultra-fast responsiveness for demanding workloads. Equipped with four PCIe x16 slots, including a full-speed PCIe 5.0 slot from the CPU, users can easily integrate the latest graphics cards and expansion hardware. For high-speed storage, the MSI PRO Z890-S offers three M.2 slots supporting PCIe 5.0, PCIe 4.0, and SATA modes, as well as four SATA 6Gb/s ports, with full RAID options for both SATA and NVMe SSDs. Its comprehensive display support includes HDMI 2.1, DisplayPort 1.4, and a Thunderbolt 4 Type-C port with DisplayPort 2.1 capability, enabling resolutions up to 8K @ 60Hz. Connectivity is a major strength, with Intel Wi-Fi 7, 2.5Gbps LAN, multiple USB 5Gbps ports, and high-speed 20Gbps Type-C connectors available on both the front and rear panels. The Realtek ALC897 7.1-channel audio codec ensures clear, immersive sound, while extensive internal headers offer flexibility for cooling, RGB lighting, and chassis configurations.
The latest price of MSI PRO Z890-S WIFI WHITE LGA 1851 ATX Motherboard in Bangladesh is 38,300৳ You can buy the MSI PRO Z890-S WIFI WHITE LGA 1851 ATX Motherboard at best price from our Website or visit any of our showrooms.
