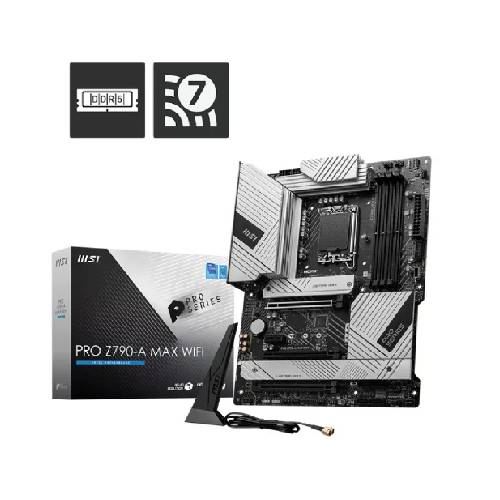

MSI PRO Z790-A MAX WIFI DDR5 Intel®Z790 Chipset 14th/ 13th/ 12th Gen LGA 1700 ATX Motherboard

MSI PRO Z790-A MAX WIFI DDR5 Intel®Z790 Chipset 14th/ 13th/ 12th Gen LGA 1700 ATX Motherboard

The MSI PRO Z790-A MAX WIFI DDR5 motherboard is engineered for high-performance computing, offering robust features for professionals, content creators, and gamers seeking reliability and speed. Built around the Intel Z790 chipset, this ATX motherboard supports the latest 14th, 13th, and 12th Gen Intel Core processors, as well as Intel Pentium Gold and Celeron processors, providing maximum flexibility for diverse builds. Its LGA 1700 socket ensures compatibility with the newest Intel CPUs, while the ATX form factor offers ample expansion options for storage, graphics, and connectivity. Memory performance is exceptional with support for DDR5 RAM up to 7800+ MHz (OC) across four DIMM slots, allowing a maximum capacity of 192GB. The motherboard supports Intel XMP 3.0 for easy overclocking and dual-channel memory configurations, ensuring high-speed data processing for demanding applications. Graphics and display options are versatile, featuring HDMI 2.1 supporting 4K at 60Hz and DisplayPort 1.4 with up to 8K resolution, catering to both gaming and professional media setups. Expansion is seamless with 3 PCIe x16 slots and multiple PCIe x1 slots, complemented by four M.2 slots and six SATA 6G ports for high-speed storage, including support for RAID 0, 1, 5, and 10 arrays. Connectivity is future-proof with Intel 2.5Gbps LAN and Wi-Fi 7 with MU-MIMO and Bluetooth 5.4, delivering fast and stable network performance. The motherboard also integrates advanced audio via the Realtek ALC4080 codec with 7.1-channel support and S/PDIF output for immersive sound experiences. Built for convenience and aesthetics, the board includes multiple RGB headers, EZ Debug LEDs, and comprehensive internal connectors for fans and cooling solutions. With a 3-year warranty, the MSI PRO Z790-A MAX WIFI DDR5 is a reliable, high-performance foundation for any advanced PC build.

features of MSI PRO Z790-A MAX WIFI DDR5 Intel®Z790 Chipset 14th/ 13th/ 12th Gen LGA 1700 ATX Motherboard

• Chipset: Intel Z790 chipset provides a high-performance foundation for 14th, 13th, and 12th Gen Intel CPUs. Optimized for speed, connectivity, and efficient memory management.
• CPU Support: Supports Intel Core, Pentium Gold, and Celeron processors on LGA 1700 socket for versatile computing power.
• Memory: 4x DDR5 DIMM slots supporting up to 192GB, with speeds up to 7800+ MHz (OC). Intel XMP 3.0 support ensures easy and stable overclocking.
• Graphics: Integrated HDMI 2.1 and DisplayPort 1.4 support up to 4K 60Hz and 8K 60Hz respectively, enabling high-resolution display options.
• Expansion Slots: 3x PCIe x16 slots (including PCIe 5.0) and multiple PCIe x1 slots provide flexibility for graphics cards, storage, and expansion cards.
• Storage: 4x M.2 slots and 6x SATA 6G ports with RAID 0/1/5/10 support for high-speed and reliable storage solutions.
• Networking: Intel 2.5Gbps LAN and Wi-Fi 7 with MU-MIMO and Bluetooth 5.4 for fast, stable wired and wireless connectivity.
• Audio: Realtek ALC4080 7.1-channel high-definition audio with S/PDIF output delivers immersive sound for gaming, media, and content creation.
• Cooling & RGB: Multiple system and CPU fan connectors, pump fan support, and RGB/ARGB headers allow full customization and efficient thermal management.
• Diagnostics & Usability: 4x EZ Debug LEDs make troubleshooting easy and convenient, ensuring smooth setup and maintenance.
• Form Factor & Build: ATX form factor (243.84mm x 304.8mm) designed for modern cases with excellent expandability.
• Warranty: 3-year manufacturer warranty ensures long-term reliability and peace of mind.
