| Basic Information | ||
| Supported CPU | Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors<br> Socket AM5 | |
| Chipset | AMD X870 | |
| Form Factor | ATX<br> 243.84mmx304.8mm | |
| Audio | Realtek ALC897<br> 7.1-Channel High Definition Audio | |
| Type | DDR5 | |
| Expansion Slots | ||
| PCI | 4x PCI-E x16 slot<br> PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)<br> PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)<br> PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)<br> PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)<br> PCI_E1 slot<br> • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)<br> • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)<br> • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)<br> | |
| Memory Specifications | ||
| Slots | 4x UDIMM | |
| Supported Memory | Support DDR5 8200+(OC)/ 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency:<br> • 1DPC 1R Max speed up to 8200+ MT/s<br> • 1DPC 2R Max speed up to 6400+ MT/s<br> • 2DPC 1R Max speed up to 6400+ MT/s<br> • 2DPC 2R Max speed up to 4800+ MT/s<br> Supports AMD POR Speed and JEDEC Speed<br> Supports Memory Overclocking and AMD EXPOTM<br> Supports Dual-Channel mode<br> Supports Non-ECC, Un-buffered memory<br> Supports CUDIMM, Clock Driver bypass mode only<br> | |
| Maximum Memory | 256GB | |
| Graphics | ||
| Graphics | 1x HDMI<br><br> Support HDMITM 2.1, maximum resolution of 4K 60Hz*<br> 1x Type-C DisplayPort<br> USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz*<br> | |
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| RAID | Supports RAID 0 and RAID 1 for M.2 NVMe storage devices | |
| Display Port (s) | 1x Type-C DisplayPort | |
| USB (s) | 4x USB 2.0 (Rear)<br> 4x USB 2.0 (Front)<br> 2x USB 5Gbps Type A (Rear)<br> 2x USB 5Gbps Type A (Front)<br> 2x USB 10Gbps Type A (Rear)<br> 1x USB 10Gbps Type C (Front)<br> 1x USB 20Gbps Type C (Rear)<br> 1x USB 40Gbps Type C (Rear)<br> | |
| LAN Port (s) | Realtek 8126VB 5G LAN | |
| Wireless Communication module | Wi-Fi 7<br> The Wireless module is pre-installed in the M.2 (Key-E) slot<br> Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps<br> Supports 802.11 a/ b/ g/ n/ ac/ ax/ be<br> Supports Bluetooth 5.4, MLO, 4KQAM<br> | |
| Supported Storage | 3x M.2<br> M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices<br> M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices<br> M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices<br> M2_1 slot<br> • Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)<br> • Supports up to PCIe 4.0 x4 (For Ryzen 8700/ 8600/ 8400 Series <br><br>processors) | |
| Internal I/O Ports | 2x Thunderbolt5 card connector(JTBT5, support RTD3)<br> 1x Power Connector(ATX_PWR)<br> 2x Power Connector(CPU_PWR)<br> 1x Power Connector(PCIE_PWR 8pin)<br> 1x CPU Fan<br> 1x Combo Fan (Pump_Sys Fan)<br> 6x System Fan<br> 2x Front Panel (JFP)<br> 1x Chassis Intrusion (JCI)<br> 1x Front Audio (JAUD)<br> 1x Tuning Controller connector(JDASH)<br> 3x Addressable V2 RGB LED connector (JARGB_V2)<br> 1x RGB LED connector(JRGB)<br> 4x USB 2.0 ports<br> 2x USB 5Gbps Type A ports<br> 1x USB 10Gbps Type C ports<br> | |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Others Information | ||
| Special Features | 4x EZ Debug LED | |
| Warranty Information | ||
| Warranty | 3 Years | |

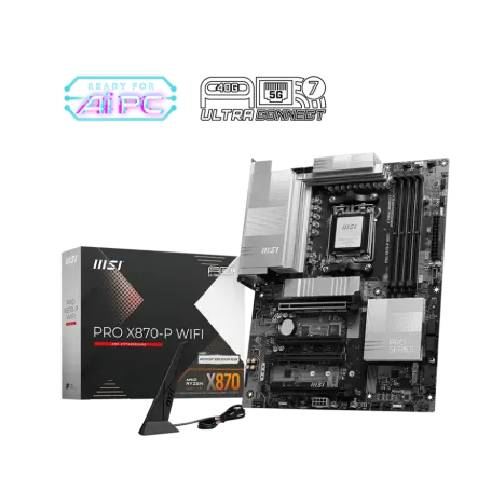

The MSI PRO X870-P WIFI motherboard is engineered to deliver exceptional performance, stability, and connectivity for modern AMD-based systems. Built around the advanced AMD X870 chipset and the AM5 socket, it supports the latest AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors, ensuring long-term platform compatibility and powerful computing for gaming, content creation, and productivity workloads. This ATX motherboard offers an impressive DDR5 memory architecture, with four DIMM slots supporting speeds up to 8200+ MT/s (OC), allowing users to fully leverage high-speed next-gen RAM for smoother multitasking and optimal system responsiveness. With a total supported capacity of 256GB, the board is ready for heavy multitasking and memory-intensive applications. For expansion, the PRO X870-P WIFI includes four PCIe slots, headlined by a full-length PCIe 5.0 x16 interface for cutting-edge graphics cards. Storage options are equally robust, featuring three M.2 slots, including one PCIe 5.0 x4 connection for ultra-fast NVMe SSDs, ensuring lightning-fast boot times and high-speed data transfers. RAID 0/1 support further enhances storage flexibility. Connectivity is a major highlight, with a wide range of USB options—including USB4 40Gbps, USB 20Gbps Type-C, multiple USB 10Gbps, and numerous front and rear USB ports. Networking is equally powerful, combining Realtek 5G LAN with Wi-Fi 7 for high-speed, low-latency wireless performance. Bluetooth 5.4 is also included for seamless device pairing. Additional features like 7.1-channel Realtek audio, advanced RGB headers, extensive fan connectors, and MSI’s intuitive EZ Debug LED system make building and troubleshooting easier. With a durable layout, enhanced power delivery, and a 3-year warranty, the MSI PRO X870-P WIFI is a reliable foundation for any modern high-performance PC build.
The latest price of MSI PRO X870-P WIFI AMD X870 Chipset AM5 ATX Motherboard in Bangladesh is 37,700৳ You can buy the MSI PRO X870-P WIFI AMD X870 Chipset AM5 ATX Motherboard at best price from our Website or visit any of our showrooms.
