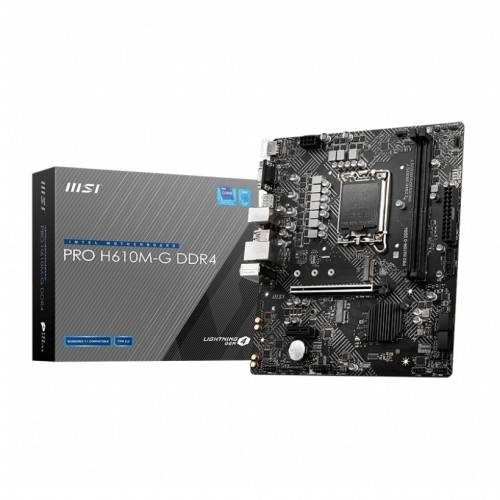

MSI PRO H610M-G DDR4 Intel®H610 Chipset 14th/ 13th/ 12th Gen mATX Motherboard

MSI PRO H610M-G DDR4 Intel®H610 Chipset 14th/ 13th/ 12th Gen mATX Motherboard

The MSI PRO H610M-G DDR4 Intel® H610 Chipset mATX Motherboard is engineered for reliability, performance, and versatility, making it an ideal choice for both home and office PC builds. Supporting Intel’s 14th, 13th, and 12th Gen Core processors, along with Pentium Gold and Celeron CPUs, this motherboard offers compatibility with a wide range of computing needs. Its LGA1700 socket ensures seamless processor installation, while the Intel H610 chipset provides stable performance for everyday computing and light productivity tasks. Designed in a compact mATX form factor (9.29 x 7.95 inches), the PRO H610M-G maximizes space efficiency without compromising connectivity or expandability. It features two DDR4 memory slots supporting up to 64GB of RAM at speeds up to 3200 MHz, enabling smooth multitasking and improved system responsiveness. Dual-channel memory architecture further enhances performance for applications ranging from office work to casual gaming. Graphics options include HDMI 2.1, VGA, and DisplayPort 1.4, supporting resolutions up to 4K at 60Hz, making it ideal for modern displays. Expansion capabilities are flexible, with one PCIe x16 slot, one PCIe x1 slot, and an M.2 slot dedicated to Wi-Fi modules. Storage options include four SATA 6Gb/s ports and one M.2 slot supporting both PCIe 3.0 x4 and SATA devices. Connectivity is comprehensive, with six USB 2.0 ports, four USB 3.2 Gen 1 ports, and a 1Gbps Intel LAN controller. Internal connectors include RGB LED headers, system fan connectors, and a TPM module for enhanced security. Audio is handled by Realtek ALC892/ALC897 codecs, delivering 7.1-channel high-definition sound for immersive media experiences. Built for durability and ease of maintenance, the MSI PRO H610M-G also features EZ Debug LEDs, clear CMOS jumper, and a robust 3-year manufacturer warranty. Perfect for professionals, students, and PC enthusiasts, it balances performance, reliability, and modern features in a compact design.

Features of MSI PRO H610M-G DDR4 Intel®H610 Chipset 14th/ 13th/ 12th Gen mATX Motherboard

• CPU Support: Compatible with 14th, 13th, and 12th Gen Intel® Core™, Pentium Gold, and Celeron processors on the LGA1700 socket, delivering strong performance and excellent upgrade flexibility.
• Form Factor: Micro-ATX (9.29 x 7.95 in), offering compact design without compromising expandability and connectivity.
• Memory Support: 2x DDR4 slots supporting up to 64GB of RAM at 2133/2666/2933/3200 MHz, with dual-channel architecture for smooth multitasking.
• Graphics Support: Integrated HDMI 2.1, DisplayPort 1.4, and VGA ports, supporting resolutions up to 4K at 60Hz for high-quality visuals.
• Expansion Slots: 1x PCIe 4.0 x16, 1x PCIe 3.0 x1, and 1x M.2 slot (for Wi-Fi module) for flexible expansion options.
• Storage Options: 4x SATA 6Gb/s ports and 1x M.2 slot (Key M) supporting PCIe 3.0 x4 and SATA devices, plus Intel Smart Response Technology.
• Audio: Realtek ALC892/ALC897 codec delivering 7.1-channel high-definition audio for immersive sound.
• USB Ports: 4x USB 3.2 Gen 1 ports and 6x USB 2.0 ports for fast data transfer and peripheral support.
• Networking: Intel I219V 1Gbps LAN controller for reliable wired connectivity.
• Internal Connectors: 1x 24-pin ATX power, 1x 8-pin CPU power, fan connectors, RGB LED headers, TPM module connector, and chassis intrusion support.
• Convenience Features: EZ Debug LEDs, clear CMOS jumper, and durable design for easy troubleshooting and maintenance.
• Warranty: Backed by a 3-year manufacturer warranty for peace of mind.
