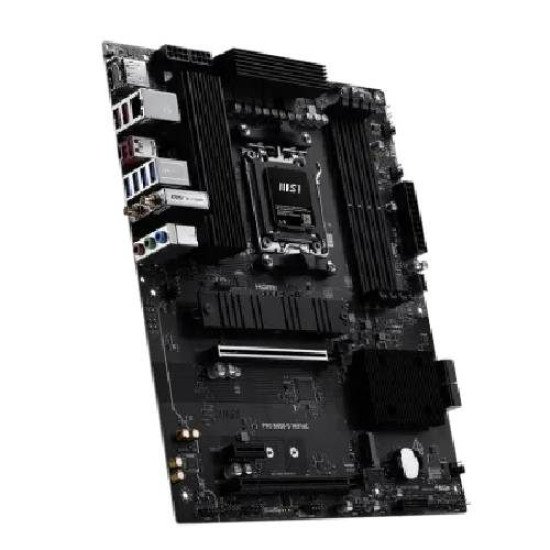

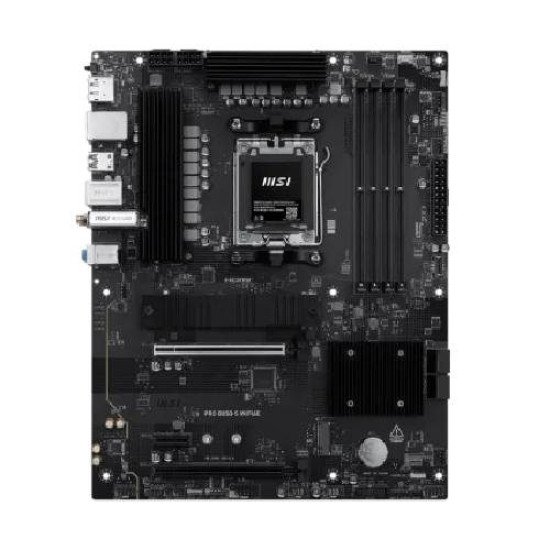

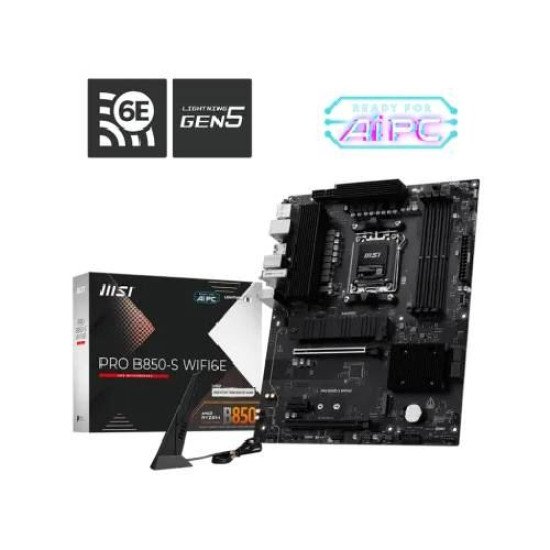

MSI PRO B850-S WIFI6E AMD B850 Chipset AM5 ATX Motherboard
- Stock: In Stock
- Brand: MSI
- Model: PRO B850-S WIFI6E
Key Features
- Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
- Supported RAM: 4x DDR5, up to 8200 (OC) MT/s
- Graphics Output: 1x HDMI, 1x DisplayPort
- Features: Realtek 8125 2.5G LAN, Wi-Fi 6E, Bluetooth 5.3
| Basic Information | |
| Supported CPU | Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5 |
| Chipset | AMD B850 |
| BIOS | Flash BIOS Button |
| Form Factor | ATX 243.84mmx304.8mm |
| Audio | Realtek ALC897 7.1-Channel High Definition Audio |
| Type | DDR5 |
| Expansion Slots | |
| PCI | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) |
| M.2 Socket | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M2_1 slot Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M2_2 slot Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors) Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors) |
| Memory Specifications | |
| Slots | 4 x UDIMM |
| Supported Memory | Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: 1DPC 1R Max speed up to 8200+ MT/s 1DPC 2R Max speed up to 6400+ MT/s 2DPC 1R Max speed up to 6400+ MT/s 2DPC 2R Max speed up to 6000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only |
| Maximum Memory | 256GB |
| Graphics | |
| Graphics | 1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz |
| Connector & Ports | |
| HDMI | 1x HDMI 2.1 |
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| Display Port (s) | 1x DisplayPort 1.4 |

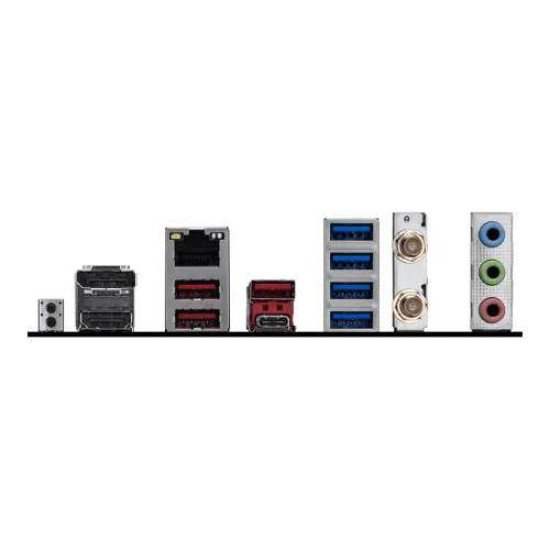

| USB (s) | 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front) |
| LAN Port (s) | Realtek 8125 2.5G LAN |
| Wireless Communication module | Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA |
| Supported Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M2_1 slot Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M2_2 slot Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors) Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors) |
| Audio | 1x Front Audio (JAUD) |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
| Others Information | |
| Special Features | 4x EZ Debug LED 1x EZ Memory Detection LED |
| Warranty Information | |
| Warranty | 3 Years Warranty |
MSI PRO B850-S WIFI6E AMD B850 Chipset AM5 ATX Motherboard
The MSI PRO B850-S WIFI6E motherboard is engineered for users who want strong performance, modern connectivity, and reliable durability for both gaming and professional workloads. Built on the powerful AMD B850 chipset, it supports the latest AMD Ryzen 9000, 8000, and 7000 Series processors on the AM5 socket, delivering excellent speed, efficiency, and multitasking capability. Whether you're building a high-performance gaming PC or a productivity powerhouse, this motherboard ensures smooth operation with cutting-edge technologies. Designed with support for DDR5 memory, the board allows speeds up to 8200+ MT/s (OC), giving users faster data access for gaming, rendering, and heavy applications. Its dual M.2 slots, including one PCIe 5.0 x4, provide extremely fast storage options ideal for large file transfers and program loading. Additionally, four SATA ports offer extra flexibility for traditional storage devices. Connectivity is one of the standout strengths of the MSI PRO B850-S, featuring Wi-Fi 6E, 2.5G LAN, multiple high-speed USB ports, and modern display outputs like HDMI 2.1 and DisplayPort 1.4, both supporting 4K at 60Hz. This ensures seamless networking, fast data sharing, and excellent multi-monitor performance. The board includes robust cooling support with multiple fan headers, pump connectors, and EZ Debug LEDs that make troubleshooting simple. It also features Realtek ALC897 7.1-channel audio, providing clear and immersive sound for entertainment or content creation. Built with reliability in mind, the motherboard includes quality components, protection features, and a 3-year manufacturing warranty, making it a dependable choice for long-term use. Combining speed, stability, and advanced features, the MSI PRO B850-S WIFI6E is an ideal foundation for any modern PC build.
Features of MSI PRO B850-S WIFI6E AMD B850 Chipset AM5 ATX Motherboard
- Advanced Processor Support: Compatible with AMD Ryzen 9000, 8000, and 7000 Series processors for top-tier speed and performance.
- High-Speed Storage Options: Includes PCIe 5.0 and PCIe 4.0 M.2 slots for ultra-fast NVMe SSDs.
- Next-Gen Memory Support: DDR5 support up to 8200+ MT/s (OC), enabling smoother multitasking and faster load times.
- Superior Connectivity: Built-in Wi-Fi 6E, Realtek 2.5G LAN, and multiple USB 10Gbps ports for lightning-fast data transfer.
- Enhanced Display Options: HDMI 2.1 and DisplayPort 1.4 with support for 4K 60Hz output.
- Durable & Reliable: Features EZ Debug LEDs, strong power design, and a solid 3-year warranty.
