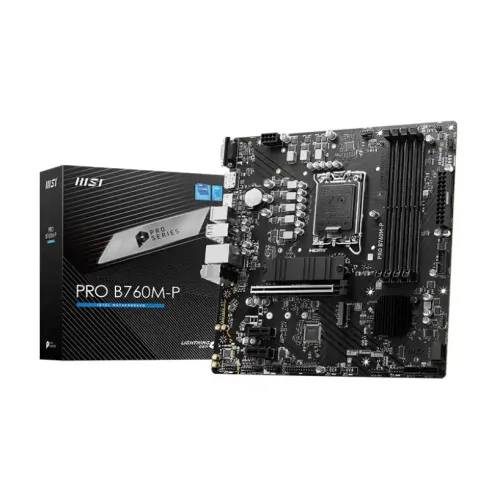

MSI PRO B760M-P DDR5 Intel® B760 Chipset 14th/ 13th/ 12th Gen mATX Motherboard

MSI PRO B760M-P DDR5 Intel® B760 Chipset 14th/ 13th/ 12th Gen mATX Motherboard

The MSI PRO B760M-P DDR5 Intel® B760 Chipset Motherboard is designed to deliver a solid, efficient, and dependable foundation for modern Intel PC builds. Supporting 14th, 13th, and 12th Gen Intel® Core™, Pentium Gold, and Celeron processors, this motherboard uses the LGA 1700 socket and the Intel B760 chipset, offering excellent performance for both everyday users and productivity-focused systems. Built in a compact mATX form factor, the motherboard fits easily into a wide range of cases while still providing robust expandability. With four DDR5 memory slots, it supports up to 192GB of high-speed RAM, reaching extremely fast frequencies through Intel XMP 3.0 overclocking and optimized dual-channel architecture. For graphics output, the MSI PRO B760M-P includes HDMI 1.4, DisplayPort 1.4, and VGA, supporting up to 4K resolution depending on the port. Whether you are setting up a workstation, home PC, or light gaming system, these versatile display options cover both modern and legacy monitors. Storage support is strong as well, with two M.2 PCIe 4.0 slots, one from the CPU and one from the chipset, offering fast NVMe SSD performance. Additionally, four SATA 6Gb/s ports support RAID configurations including RAID 0, 1, 5, and 10. Connectivity features include a mix of USB 3.2 Gen 2 Type-C, USB 3.2 Gen 1, and USB 2.0 ports, ensuring compatibility with a wide range of peripherals. The integrated Realtek Gigabit LAN, ALC897 7.1-channel audio, and multiple internal headers make it ideal for flexible PC building. With thoughtful features like EZ Debug LED, extensive fan connectors, and TPM 2.0 support, the MSI PRO B760M-P ensures a smooth building experience and long-term reliability. It is backed by a 3-year manufacturer warranty, making it a trustworthy choice for modern Intel builds.

Features of MSI PRO B760M-P DDR5 Intel® B760 Chipset 14th/ 13th/ 12th Gen mATX Motherboard

• CPU Support: Compatible with 14th, 13th, and 12th Gen Intel® Core™, Pentium Gold, and Celeron processors on the LGA1700 socket, ensuring strong performance and wide upgrade flexibility.
• Chipset: Equipped with the Intel® B760 chipset, offering stable system performance and advanced connectivity for productivity and everyday computing.
• Memory Support: Features 4× DDR5 slots supporting up to 192GB with speeds up to 6800+ MHz (OC), enabling ultra-fast performance and smooth multitasking.
• Graphics Output: Includes HDMI 1.4, DisplayPort 1.4, and VGA ports, supporting resolutions up to 4K, making it compatible with both modern and legacy displays.
• Expansion Slots: Provides 1× PCI-E 4.0 x16 slot and 2× PCI-E 4.0 x1 slots for GPUs, sound cards, and other expansion devices.
• Storage Options: Offers 2× M.2 PCIe 4.0 slots (one CPU-based and one chipset-based) along with 4× SATA 6Gb/s ports, supporting RAID 0/1/5/10 for flexible storage configuration.
• USB Connectivity: Comes with multiple USB options including USB 3.2 Gen2 Type-C, USB 3.2 Gen1 Type-A, and USB 2.0 ports for seamless peripheral support.
• Audio: Powered by the Realtek ALC897 codec, delivering high-definition 7.1-channel audio for a clear and immersive listening experience.
• Networking: Features Realtek RTL8111H Gigabit LAN, providing reliable wired network performance for fast and stable internet connectivity.
• Cooling & Internal Headers: Includes CPU and system fan headers, RGB connector, front panel connectors, and TPM 2.0 header for improved cooling, customization, and security.
• Special Features: Equipped with EZ Debug LED to help diagnose hardware issues easily, making the building process more beginner-friendly and efficient.
