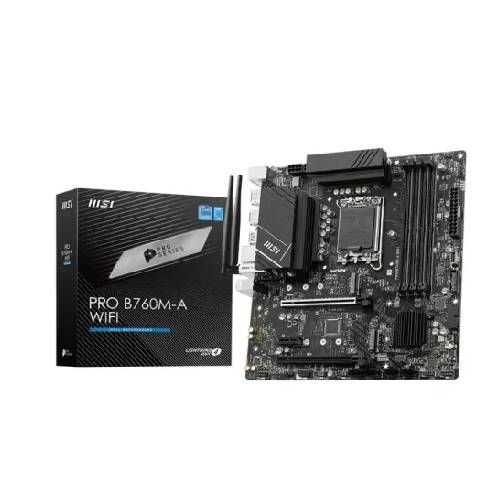

MSI PRO B760M-A WIFI DDR5 Intel® B760 Chipset 14th/ 13th/ 12th Gen mATX Motherboard

MSI PRO B760M-A WIFI DDR5 Intel® B760 Chipset 14th/ 13th/ 12th Gen mATX Motherboard

The MSI PRO B760M-A WIFI DDR5 motherboard is a high-performance, compact mATX solution designed for professionals and enthusiasts seeking reliability, speed, and future-proofing. Built on the Intel® B760 chipset, this motherboard supports Intel’s 14th, 13th, and 12th Gen Core processors, along with Pentium Gold and Celeron CPUs, providing flexibility for a wide range of computing needs. The LGA 1700 socket ensures seamless compatibility with the latest Intel CPUs, making it ideal for office work, content creation, and mid-range gaming setups. With support for DDR5 memory up to 6800+ MHz (OC) and a maximum capacity of 192GB across four DIMM slots, the MSI PRO B760M-A delivers exceptional speed and multitasking capabilities. Dual-controller dual-channel architecture enhances memory efficiency, while Intel XMP 3.0 support allows users to unlock high-performance memory profiles effortlessly. Graphics options are robust, featuring dual HDMI 2.1 and dual DisplayPort 1.4 outputs, supporting 4K resolution at 60Hz. The motherboard also includes multiple PCIe slots for flexible expansion, including one PCIe 4.0 x16, one PCIe 3.0 x1, and one PCIe 4.0 x4 slot. Storage performance is versatile, with two M.2 slots (including PCIe 4.0 support) and four SATA 6G connectors, alongside RAID 0, 1, 5, and 10 capabilities for advanced data management. Connectivity is future-ready with Intel Wi-Fi 6E, Bluetooth 5.3, and a 2.5G LAN port, ensuring fast wired and wireless networking. The board also provides ample USB connectivity, including USB 3.2 Gen2, Gen1, and USB-C ports for high-speed data transfer. Additional features like Realtek ALC897 7.1-channel HD audio, TPM 2.0 support, EZ Debug LEDs, and pre-installed Wi-Fi module make setup and troubleshooting simple. Backed by a 3-year warranty, the MSI PRO B760M-A WIFI DDR5 motherboard combines performance, connectivity, and reliability in a compact mATX form factor, making it a compelling choice for modern PC builds.

Features of MSI PRO B760M-A WIFI DDR5 Intel® B760 Chipset 14th/ 13th/ 12th Gen mATX Motherboard

• CPU Support: Compatible with 14th, 13th, and 12th Gen Intel® Core™, Pentium Gold, and Celeron processors using the LGA1700 socket, providing powerful performance and flexible upgrade options.
• Memory Support: Equipped with 4 DDR5 slots, supporting speeds up to 6800+ MHz (OC) and a maximum capacity of 192GB, with Intel XMP 3.0 for easy overclocking and optimized multitasking.
• Graphics Capabilities: Features 2 HDMI 2.1 and 2 DisplayPort 1.4 outputs, delivering stunning 4K visuals at 60Hz for gaming, content creation, or professional work.
• Expansion Slots: Includes 2 PCIe x16 and 1 PCIe x1 slots, supporting PCIe 4.0 and 3.0 devices for GPUs, storage, and other peripherals.
• Storage Options: Offers 2 M.2 slots (PCIe 4.0/SATA) and 4 SATA 6G ports, with RAID 0, 1, 5, and 10 support for flexible and reliable storage configurations.
• Networking: Built-in Intel Wi-Fi 6E and 2.5G LAN deliver fast and stable wired and wireless connections, while Bluetooth 5.3 ensures seamless device pairing.
• Audio: High-definition 7.1-channel Realtek ALC897 audio provides immersive sound for gaming, streaming, or professional applications.
• USB Connectivity: Extensive USB support, including USB 3.2 Gen2, Gen1, and USB Type-C ports, ensures high-speed data transfer and versatile peripheral connections.
• Advanced Features: TPM 2.0 support enhances security, while EZ Debug LEDs and dual RGB headers simplify setup and provide customizable lighting effects.
• Form Factor & Build: Compact mATX design (243.84mm x 243.84mm) fits a wide range of cases while maintaining durability and stability for demanding workloads.
• Warranty: Backed by a 3-year manufacturer warranty for peace of mind and reliable long-term usage.
