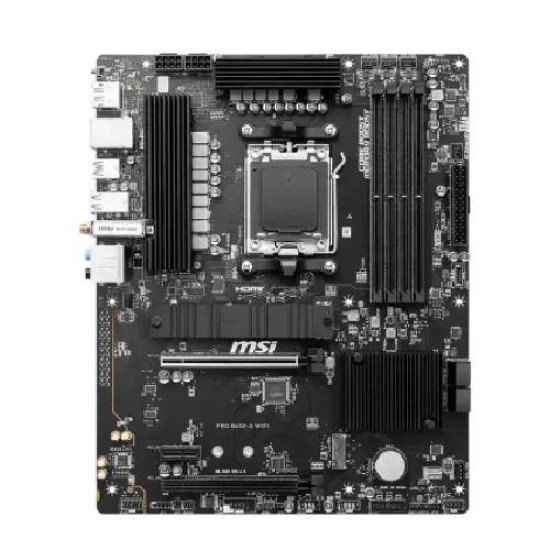

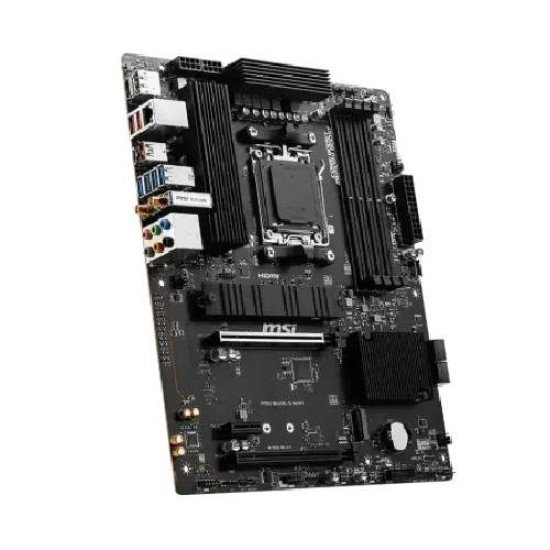

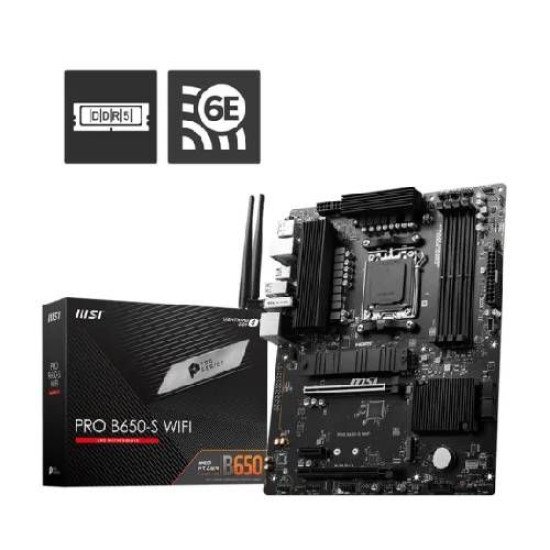

MSI PRO B650-S WIFI AMD B650 Chipset AM5 ATX Motherboard

Stock: In Stock
Brand: MSI
Model: PRO B650-S WIFI

Based on 0 reviews. - Write a review

20,200৳

Ex Tax: 20,200৳

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

Key Features

- Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
- Supported RAM: 4x DDR5, up to 7200+(OC) MHz
- Graphics Output: 1x HDMI, 1x Display Port
- Features: 2.5G LAN with Wi-Fi 6E Solution

View more details

Basic Information
Supported CPU	Supports AMD Ryzen 9000/ 8000 & 7000 Series Desktop Processors Socket AM5
Chipset	AMD B650
BIOS
Form Factor	ATX 243.84mmx304.8mm
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio
Type	DDR5
Expansion Slots
PCI	2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
M.2 Socket
Memory Specifications
Slots	4 DIMMs
Supported Memory	Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: 1DPC 1R Max speed up to 7200+ MHz 1DPC 2R Max speed up to 6000+ MHz 2DPC 1R Max speed up to 6000+ MHz 2DPC 2R Max speed up to 5400+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO
Maximum Memory	192GB
Graphics
Graphics	1x HDMI 1x DisplayPort Support HDMI 2.1, maximum resolution of 4K 60Hz Supports DP1.4, maximum resolution of 4K 60Hz
Connector & Ports
HDMI	1x HDMI
RAID	Supports RAID 0 and RAID 1 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Display Port (s)	1x DisplayPort
USB (s)	4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN Port (s)	Realtek 8125BG 2.5G LAN
Wireless Communication module	AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3
Supported Storage	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G
Audio	Audio Connectors

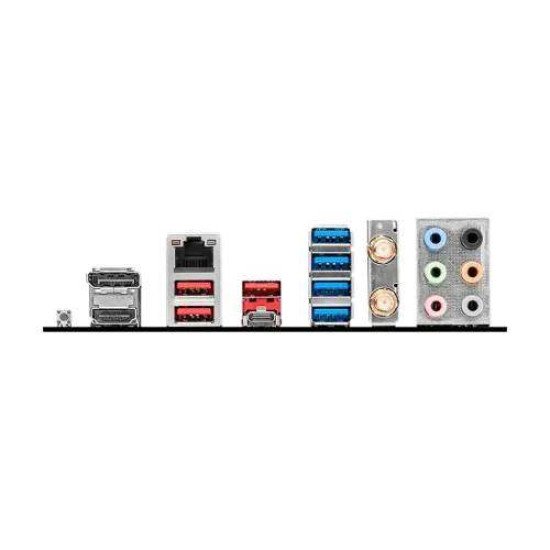

Internal I/O Ports	INTERNAL IO: 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI)V 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports BACK PANEL PORTS: DisplayPort 2.5G LAN USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 1 5Gbps (Type-A) Wi-Fi / Bluetooth Audio connectors Flash BIOS Button HDMI USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2x2 20Gbps (Type-C)
TPM (Trusted Platform Module )	1x TPM pin header(Support TPM 2.0)
Others Information
Special Features	4x EZ Debug LED
Warranty Information
Warranty	3 Years

MSI PRO B650-S WIFI AMD B650 Chipset AM5 ATX Motherboard

The MSI PRO B650-S WIFI AMD B650 Chipset AM5 ATX Motherboard is built for users who want strong performance, excellent stability, and modern connectivity for gaming, productivity, or creative work. Designed around the AMD B650 chipset and AM5 socket, it supports the latest AMD Ryzen 9000, 8000, and 7000 Series processors, delivering fast computing power with future-ready efficiency. With DDR5 memory support up to 7200+ MHz (OC), this motherboard ensures lightning-fast data processing, smoother multitasking, and improved performance in demanding applications. The board features 4 DIMM slots, dual-channel architecture, and a maximum capacity of 192GB, making it ideal for both high-end gaming and professional workloads. The MSI PRO B650-S WIFI also focuses on high-speed storage and expansion options. It includes 2 PCIe 4.0 x4 M.2 slots, capable of handling ultra-fast NVMe SSDs, along with 4 SATA 6Gb/s ports for additional drives. RAID 0 and 1 support for both SATA and NVMe storage offers customizable performance and data protection options. Connectivity is another strong point, featuring AMD Wi-Fi 6E, Bluetooth 5.3, and a Realtek 2.5G LAN port for ultra-fast wired and wireless networking. The rear panel delivers a wide range of USB ports, including USB 3.2 Gen 2x2 Type-C, ensuring compatibility with modern devices. Video outputs include both HDMI 2.1 and DisplayPort 1.4, each supporting 4K resolution at 60Hz. Cooling and durability are enhanced through multiple fan headers, pump support, and MSI’s signature EZ Debug LED system for easier troubleshooting. With a clean ATX layout, strong build quality, and a 3-year warranty, the MSI PRO B650-S WIFI provides a reliable foundation for a powerful system, suitable for gamers, creators, and everyday users.

Features of MSI PRO B650-S WIFI AMD B650 Chipset AM5 ATX Motherboard

Advanced Processor Support: Compatible with AMD Ryzen 9000, 8000 & 7000 Series processors for high-end performance.
High-Speed DDR5 Memory: Supports DDR5 speeds up to 7200+ MHz (OC) for rapid multitasking and system responsiveness.
Ultra-Fast Storage: Dual PCIe 4.0 M.2 slots and SATA RAID support for faster loading and data protection.
Next-Gen Connectivity: Includes Wi-Fi 6E, Bluetooth 5.3, and 2.5G LAN for superior networking performance.
Comprehensive USB Options: Offers USB 3.2 Gen 2x2 Type-C, multiple Gen 2 and Gen 1 ports for modern device compatibility.
4K Display Support: HDMI 2.1 and DisplayPort 1.4 outputs delivering 4K 60Hz video quality.
Efficient Cooling: CPU, pump, and system fan headers ensure stable thermal management.
Troubleshooting Made Easy: EZ Debug LEDs help quickly identify system issues.
