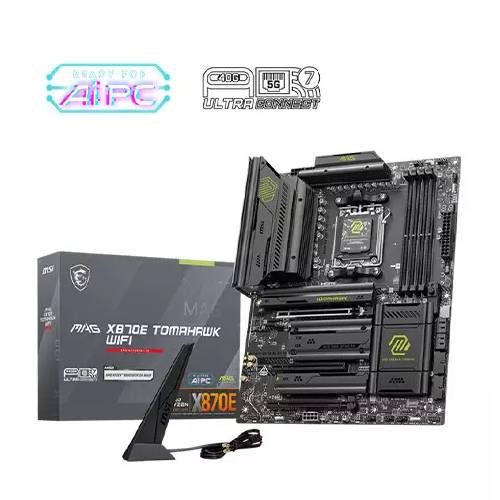

MSI MAG X870E TOMAHAWK WIFI AMD X870E Chipset AM5 ATX Motherboard

MSI MAG X870E TOMAHAWK WIFI AMD X870E Chipset AM5 ATX Motherboard

The MSI MAG X870E TOMAHAWK WIFI motherboard is engineered for gamers, power users, and PC enthusiasts who demand cutting-edge performance and maximum reliability. Built on the advanced AMD X870E chipset, this ATX motherboard is designed to support the latest AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors using the AM5 socket, ensuring exceptional processing capabilities for gaming, content creation, and multitasking. With 3 PCIe slots, including a primary PCIe 5.0 x16 slot, the MAG X870E TOMAHAWK WIFI provides support for top-tier graphics cards and next-generation expansion devices. Memory performance is equally impressive, offering DDR5 support up to 8400+ MT/s (OC) and a maximum capacity of 256GB, making it ideal for demanding applications and future-proof system builds. The board features four M.2 slots, two of which run at blazing-fast PCIe 5.0 speeds, allowing for ultra-responsive storage solutions. Additional SATA ports ensure compatibility with existing drives. For connectivity, MSI includes an extensive range of USB options—USB 40Gbps Type-C, USB 20Gbps, and multiple USB 10Gbps and 5Gbps ports—delivering fast data transfer and flexible device support. Graphics output can be handled through HDMI 2.1 FRL or USB4 Type-C with DisplayPort 1.4, enabling up to 8K 60Hz or 4K 60Hz displays. High-quality audio is powered by the Realtek ALC4080 codec, offering rich 7.1-channel sound. For networking, the motherboard includes Realtek 5G LAN and WiFi 7 (802.11be) with support for 2.4GHz, 5GHz, and 6GHz bands, ensuring incredibly fast and stable wireless performance. Packed with durability features, debugging tools, and premium components, the MSI MAG X870E TOMAHAWK WIFI is a powerful platform ready for modern high-performance PC builds.

Features of MSI MAG X870E TOMAHAWK WIFI AMD X870E Chipset AM5 ATX Motherboard

• Form Factor: ATX (243.84 x 304.8 mm), offering a standard full-size layout for maximum expansion and airflow.
• Supported CPU: Compatible with AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors using the AM5 socket for next-generation performance.
• Chipset: AMD X870E, designed to deliver advanced bandwidth, high-speed connectivity, and enhanced gaming stability.
• Expansion Slots: Includes 1× PCIe 5.0 x16 slot for top-tier GPUs, 1× PCIe 3.0 x1, and 1× PCIe 4.0 x4 slot, ensuring flexible add-on card support.
• Memory Support: 4× DDR5 UDIMM slots, supporting up to 256GB with speeds up to 8400+ MT/s (OC), enabling exceptional multitasking and overclocking headroom.
• Graphics Output: Features HDMI 2.1 supporting up to 8K 60Hz and dual USB4 Type-C ports with DisplayPort 1.4 for 4K 60Hz output.
• Storage Options: Equipped with 4× M.2 slots (2× PCIe 5.0 x4 + 2× PCIe 4.0 x4) and 4× SATA 6Gbps ports, offering ultra-fast NVMe performance and versatile storage expansion.
• USB Connectivity: Provides 2× USB 40Gbps Type-C, 1× USB 20Gbps Type-C (Front), multiple USB 10Gbps and 5Gbps ports for high-speed data transfer.
• Audio: Powered by Realtek ALC4080 with 7.1-channel high-resolution audio and S/PDIF support for immersive sound quality.
• Networking: Features Realtek 8126 5G LAN and WiFi 7 with MU-MIMO, offering ultra-fast wired and wireless connectivity with Bluetooth 5.4.
• Cooling & Diagnostics: Includes EZ Debug LED and EZ Digit Debug LED for easy troubleshooting and system monitoring.
• Special Features: Supports RAID 0/1/10 for SATA and RAID 0/1/5/10 for NVMe storage, enhancing data performance and redundancy.
