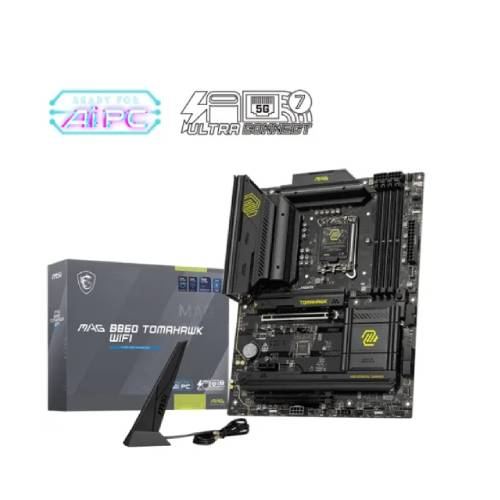

MSI MAG B860 TOMAHAWK WIFI LGA 1851 ATX Motherboard

MSI MAG B860 TOMAHAWK WIFI LGA 1851 ATX Motherboard

The MSI MAG B860 TOMAHAWK WIFI LGA 1851 ATX Motherboard is a high-performance motherboard designed for enthusiasts and gamers seeking cutting-edge technology and reliable performance. Built around the Intel B860 chipset, it supports the latest Intel Core Ultra Processors (Series 2) on the LGA 1851 socket, offering unmatched computational power for multitasking, gaming, and content creation. With an ATX form factor (243.84mm x 304.8mm), this motherboard provides robust expandability and flexibility. It features 4 DDR5 UDIMM memory slots that support speeds from 4800 MT/s to an overclocked 9200+ MT/s, ensuring ultra-fast data access and seamless multitasking. The board also accommodates up to 256GB of memory, making it ideal for demanding applications and gaming setups. The MAG B860 TOMAHAWK WIFI excels in storage and expansion options with 3 M.2 slots supporting PCIe 5.0 and PCIe 4.0, alongside 4 SATA 6Gb/s ports and RAID 0, 1, 5, and 10 support. This ensures high-speed storage performance and versatility for multiple drives. For graphics, it offers HDMI 2.1, DisplayPort 1.4, and a Type-C DisplayPort with Thunderbolt 4 support, capable of delivering resolutions up to 8K at 60Hz. Networking is fast and reliable, with the Intel Killer E5000 5Gbps LAN and Intel Killer BE1750x Wi-Fi 7 module, providing ultra-low latency wired and wireless connections. Connectivity is further enhanced with a wide array of USB ports, including USB 2.0, USB 5Gbps, USB 10Gbps, and USB 40Gbps Type-C, ensuring compatibility with modern peripherals. Audio enthusiasts will appreciate the Realtek ALC897 Codec with 7.1-channel high-definition sound and S/PDIF output. Additionally, the motherboard features EZ Debug LEDs, RGB headers, and advanced fan connectors, allowing easy system monitoring, cooling customization, and aesthetic enhancements. Backed by a 3-year manufacturing warranty, the MSI MAG B860 TOMAHAWK WIFI motherboard combines performance, connectivity, and reliability, making it a perfect foundation for building a future-proof gaming rig or high-performance workstation.

Features of MSI MAG B860 TOMAHAWK WIFI LGA 1851 ATX Motherboard

• DDR5 Memory Support: 4 slots, up to 256GB, overclockable to 9200+ MT/s.
• High-speed PCIe Slots: 1x PCIe 5.0 x16 (from CPU), 2x PCIe 4.0 (from chipset) for GPU and expansion cards.
• Storage Options: 3x M.2 slots (1x PCIe 5.0, 2x PCIe 4.0) + 4x SATA 6Gb/s ports; supports RAID 0, 1, 5, 10.
• Graphics Output: HDMI 2.1, DisplayPort 1.4, and Thunderbolt 4 Type-C supporting up to 8K resolution.
• Networking: Intel Killer E5000 5Gbps LAN + Intel Killer BE1750x Wi-Fi 7 with Bluetooth 5.4 for fast, stable connections.
• Audio: Realtek ALC897 7.1-channel HD audio with S/PDIF output.
• Extensive USB Connectivity: USB 2.0, USB 5Gbps, USB 10Gbps, USB 40Gbps Type-C ports for all peripherals.
• Advanced Cooling & Fan Control: Multiple fan headers, combo fan/pump support, and Frozr heatsink design for optimal cooling.
• EZ Debug Features: 4x EZ Debug LEDs + 1x EZ Memory Detection LED for easy troubleshooting.
• RGB & Customization: 3x Addressable RGB headers, 2x standard RGB headers for system lighting.
• Maximum Memory Compatibility: Supports dual-channel dual-controller mode, Intel XMP 3.0, Non-ECC unbuffered memory.
• Warranty: 3-year manufacturer warranty.
