| Basic Information | ||
| Supported CPU | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700 | |
| Chipset | INTEL B760 | |
| Form Factor | mATX 243.84mmx243.84mm | |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output | |
| Type | DDR5 | |
| Expansion Slots | ||
| PCI | 1x PCI-E x16 slot Supports x16/x4 PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset) | |
| M.2 Socket | 3x M.2 slots | |
| Memory Specifications | ||
| Slots | 4 x DIMM | |
| Supported Memory | Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz<br> Max. overclocking frequency:<br> • 1DPC 1R Max speed up to 7800+ MHz<br> • 1DPC 2R Max speed up to 6600+ MHz<br> • 2DPC 1R Max speed up to 6400+ MHz<br> • 2DPC 2R Max speed up to 5600+ MHz<br> Supports Dual-Channel mode<br> Supports non-ECC, un-buffered memory<br> Supports Intel Extreme Memory Profile<br> | |
| Maximum Memory | 192GB | |
| Graphics | ||
| Graphics | Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz*<br> Support DP 1.4, maximum resolution of 8K 60Hz* | |
| Connector & Ports | ||
| HDMI | 1x HDMI 2.1 | |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices | |
| Display Port (s) | 1x DisplayPort 1.4 | |
| USB (s) | 4x USB 2.0 (Rear)<br> 4x USB 2.0 (Front)<br> 2x USB 3.2 Gen1 Type A (Front)<br> 3x USB 3.2 Gen2 Type A (Rear)<br> 1x USB 3.2 Gen2 Type C (Front)<br> 1x USB 3.2 Gen2x2 Type C (Rear) | |
| LAN Port (s) | Realtek 2.5Gbps LAN | |
| Wireless Communication module | Intel Wi-Fi 6E<br> The Wireless module is pre-installed in the M.2 (Key-E) slot<br> Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps<br> Supports 802.11 a/ b/ g/ n/ ac/ ax<br> Supports Bluetooth 5.3, FIPS, FISMA<br> | |
| Supported Storage | 3x M.2<br> M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices<br> M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices<br> M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices<br> 4x SATA 6G | |
| Internal I/O Ports | 1x Power Connector(ATX_PWR)<br> 2x Power Connector(CPU_PWR)<br> 1x CPU Fan<br> 1x Pump Fan<br> 4x System Fan<br> 2x Front Panel (JFP)<br> 1x Chassis Intrusion (JCI)<br> 1x Front Audio (JAUD)<br> 1x Tuning Controller connector(JDASH)<br> 2x Addressable V2 RGB LED connector (JARGB_V2)<br> 1x RGB LED connector(JRGB)<br> 4x USB 2.0 ports<br> 2x USB 3.2 Gen1 Type A ports<br> 1x USB 3.2 Gen2 Type C ports<br> 1x USB4 card connector (JTBT_U4_1, supports RTD3)<br> | |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Others Information | ||
| Special Features | LED FEATURE: 4x EZ Debug LED | |
| Warranty Information | ||
| Warranty | 3 years | |

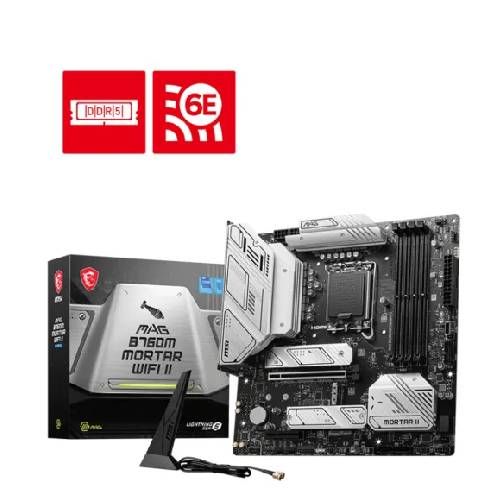

The MSI MAG B760M MORTAR WIFI II DDR5 is a robust and feature-rich micro-ATX motherboard designed to deliver high performance and seamless connectivity for gamers, content creators, and PC enthusiasts. Built on the Intel B760 chipset, it supports Intel 14th, 13th, and 12th Gen Core processors, as well as Intel Pentium Gold and Celeron processors with the LGA 1700 socket, providing maximum compatibility and performance potential. This motherboard supports DDR5 memory, with four DIMM slots capable of reaching up to 7800+ MHz (OC), and a maximum memory capacity of 192GB. With dual-channel architecture and Intel Extreme Memory Profile support, it ensures ultra-fast and stable memory performance, allowing for smooth multitasking and gaming experiences. The MAG B760M MORTAR WIFI II also features comprehensive graphics support, including HDMI 2.1 with HDR for 4K 60Hz output and DisplayPort 1.4 for up to 8K 60Hz, catering to high-resolution monitors and advanced visual setups. Its expansion capabilities include one PCIe 5.0 x16 slot and two additional PCIe slots, along with three M.2 slots and four SATA 6G ports, giving users flexibility for storage configurations including RAID 0, 1, 5, and 10. Connectivity is seamless with Intel Wi-Fi 6E, Bluetooth 5.3, and a 2.5Gbps LAN port, while multiple USB ports—including USB 3.2 Gen2x2 Type-C—support high-speed data transfers. Internal RGB connectors and EZ Debug LEDs provide customization and easy system troubleshooting. With premium audio through Realtek ALC897 codec, robust power design, and a compact mATX form factor, the MSI MAG B760M MORTAR WIFI II is an ideal foundation for a powerful and reliable PC build, backed by a 3-year manufacturer warranty for peace of mind.
The latest price of MSI MAG B760M MORTAR WIFI II DDR5 Intel® B760 Chipset 14th/ 13th/ 12th Gen mATX Motherboard in Bangladesh is 26,000৳ You can buy the MSI MAG B760M MORTAR WIFI II DDR5 Intel® B760 Chipset 14th/ 13th/ 12th Gen mATX Motherboard at best price from our Website or visit any of our showrooms.
