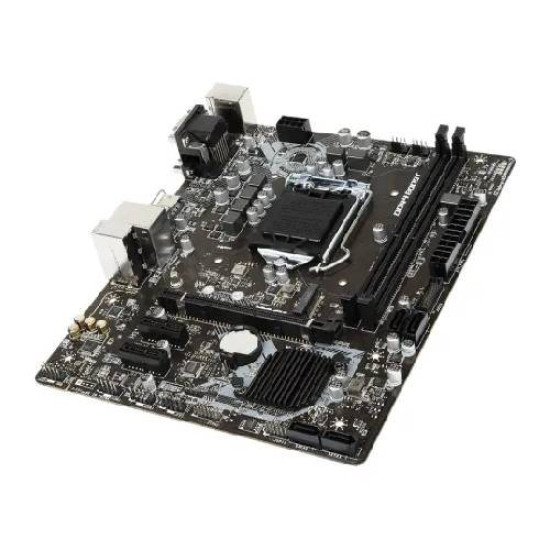

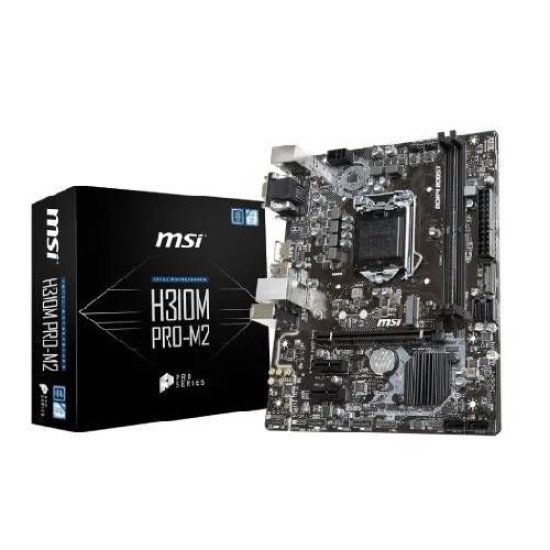

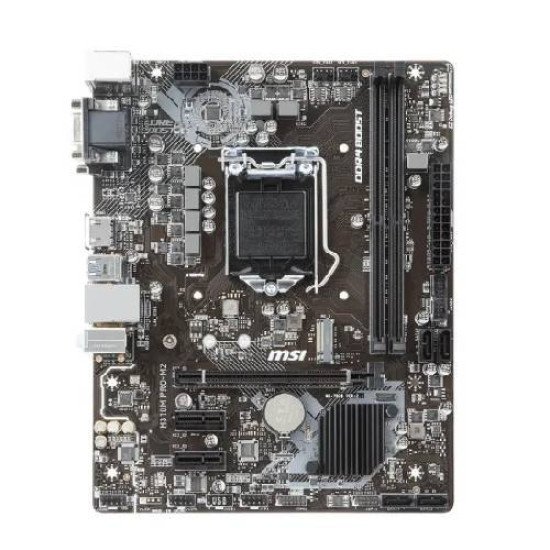

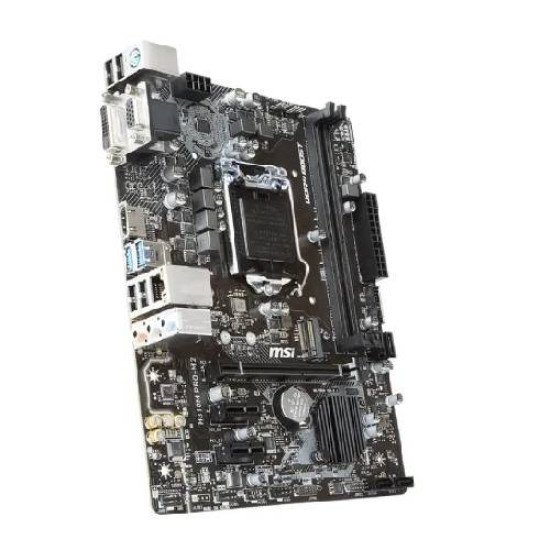

MSI H310M PRO-M2 Intel® H310 Chipset 9th / 8th Gen mATX Motherboard

MSI H310M PRO-M2 Intel® H310 Chipset  9th / 8th Gen mATX Motherboard

The MSI H310M PRO-M2 is a reliable and efficient motherboard designed to support 9th and 8th generation Intel® Core™, Pentium Gold, and Celeron processors on the LGA 1151 socket. Built on the Intel® H310 chipset, this board delivers a solid platform for home, office, and entry-level gaming systems, offering dependable performance and essential features in a compact micro-ATX form factor. Despite its small size, the board includes a versatile internal layout with two DDR4 memory slots, supporting up to 32GB RAM with speeds up to 2666MHz. This makes it ideal for multitasking, productivity, and everyday computing. The inclusion of Intel® Extreme Memory Profile (XMP) support allows users to easily optimize memory settings for improved system stability and speed. Storage options include a fast M.2 slot (Key M) that supports PCIe 2.0 x4 and SATA SSDs, ensuring quicker boot times and faster data access. Additionally, users can expand storage through four SATA 6Gb/s ports for traditional HDDs or SSDs. The motherboard also offers essential expansion with one PCIe 3.0 x16 slot for graphics cards and two PCIe 2.0 x1 slots for additional peripherals. For visuals, the MSI H310M PRO-M2 features VGA, DVI-D, and HDMI 1.4 ports, supporting a wide range of display resolutions, including up to 4096×2160 at 30Hz via HDMI. Reliable connectivity comes from its Intel I219-V Gigabit LAN controller, ensuring stable network performance for work, streaming, and online gaming. The board also integrates Realtek ALC887 7.1-channel high-definition audio, delivering clear and immersive sound. Built with MSI’s durable components and enhanced circuit protection, this motherboard is designed to ensure long-lasting performance backed by a 3-year warranty.

Features of MSI H310M PRO-M2 Intel® H310 Chipset  9th / 8th Gen mATX Motherboard

• CPU Support: Supports 9th and 8th Gen Intel® Core™, Pentium Gold, and Celeron processors with the LGA1151 socket, ensuring smooth performance for everyday computing and productivity tasks.
• Chipset: Built with the Intel® H310 chipset to deliver stable system performance and efficient handling of essential desktop workloads.
• Memory Support: Equipped with dual-channel DDR4 technology, supporting up to 32GB of non-ECC, un-buffered memory for reliable multitasking and smoother application performance.
• Expansion Slots: Features a PCIe 3.0 x16 slot for graphics cards and two PCIe 2.0 x1 slots for additional expansion options such as network or sound cards.
• Storage Options: Includes a high-speed M.2 slot supporting PCIe 2.0 x4 and SATA 6Gb/s SSDs, along with four SATA 6Gb/s ports for flexible storage expansion.

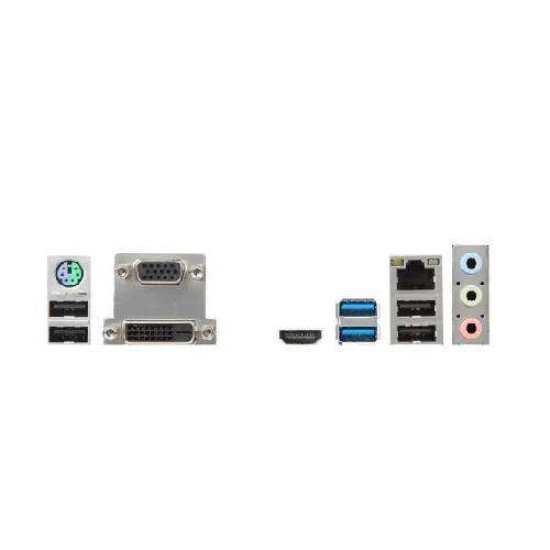

• Graphics Output: Offers VGA, DVI-D, and HDMI 1.4 outputs, supporting multiple monitors and resolutions up to 4096×2160 at 30Hz for clear and vibrant visuals.
• Audio Quality: Powered by the Realtek ALC887 codec, delivering 7.1-channel high-definition audio for an improved multimedia and entertainment experience.
• USB Connectivity: Provides multiple USB options, including four USB 3.1 Gen1 ports and six USB 2.0 ports, ensuring ample connectivity for peripherals and devices.
• Network: Integrated Intel I219-V Gigabit LAN offers fast, stable, and reliable network performance for online work, streaming, and light gaming.
• Form Factor: Compact mATX design (23.0 cm x 18.5 cm) suitable for small or mid-size PC builds without compromising essential features.
