| Basic Information | ||
| Supported CPU | Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors<br> LGA1700 | |
| Chipset | INTEL B760 | |
| Form Factor | ATX<br> 243.84mmx304.8mm | |
| Audio | Realtek ALC897 Codec<br> 7.1-Channel High Definition Audio Supports S/PDIF output | |
| Type | DDR5 | |
| Expansion Slots | ||
| PCI | 5x PCI-E x16 slot<br> PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)<br> PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)<br> PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)<br> PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)<br> PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)v | |
| Memory Specifications | ||
| Supported Memory | Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz<br> Max. overclocking frequency:<br> • 1DPC 1R Max speed up to 6800+ MHz<br> • 1DPC 2R Max speed up to 6400+ MHz<br> • 2DPC 1R Max speed up to 6000+ MHz<br> • 2DPC 2R Max speed up to 5600+ MHz<br> Supports Intel XMP 3.0 OC<br> Supports Dual-Controller Dual-Channel mode<br> Supports non-ECC, un-buffered memory<br> | |
| Maximum Memory | 192GB | |
| Graphics | ||
| Graphics | 1x HDMI<br> Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz<br> 1x DisplayPort<br> Support DP 1.4, maximum resolution of 4K 60Hz<br> | |
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices | |
| Display Port (s) | 1x DisplayPort | |

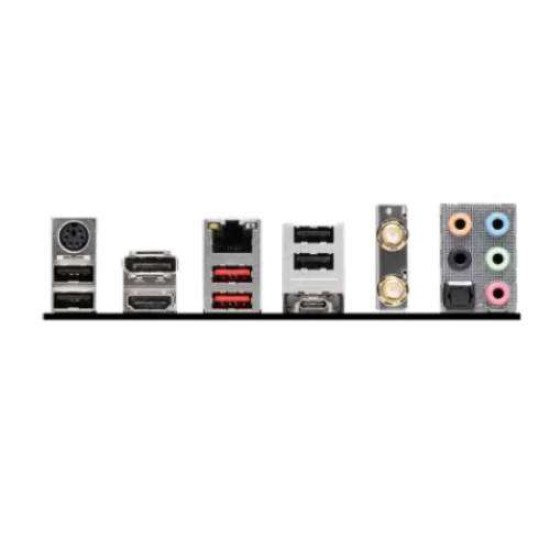

| USB (s) | 4x USB 2.0 (Rear)<br> 4x USB 2.0 (Front)<br> 2x USB 3.2 Gen1 Type A (Front)<br> 1x USB 3.2 Gen1 Type C (Front)<br> 2x USB 3.2 Gen2 Type A (Rear)<br> 1x USB 3.2 Gen2 Type C (Rear)<br> | |
| LAN Port (s) | Realtek RTL8125BG 2.5G LAN | |
| Wireless Communication module | Intel Wi-Fi 6E<br> The Wireless module is pre-installed in the M.2 (Key-E) slot<br> Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps<br> Supports 802.11 a/ b/ g/ n/ ac/ ax<br> Supports Bluetooth 5.3, FIPS, FISMA | |
| Supported Storage | 2x M.2<br> M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports <br>22110/2280/2260/2242 devices<br> M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices<br> 4x SATA 6G | |
| Internal I/O Ports | 1x Power Connector(ATX_PWR)<br> 2x Power Connector(CPU_PWR)<br> 1x CPU Fan<br> 1x Pump Fan<br> 5x System Fan<br> 2x Front Panel (JFP)<br> 1x Chassis Intrusion (JCI)<br> 1x Front Audio (JAUD)<br> 1x Printer Port (JLPT)<br> 1x Com Port (JCOM)<br><br> 1x TBT connector (JTBT, supports RTD3)<br> 2x Addressable V2 RGB LED connector (JARGB_V2)<br> 1x RGB LED connector(JRGB)<br> 4x USB 2.0 ports<br> 2x USB 3.2 Gen1 Type A ports<br> 1x USB 3.2 Gen1 Type C ports<br> | |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Others Information | ||
| Special Features | 4x EZ Debug LED | |
| Warranty Information | ||
| Warranty | 3 years | |

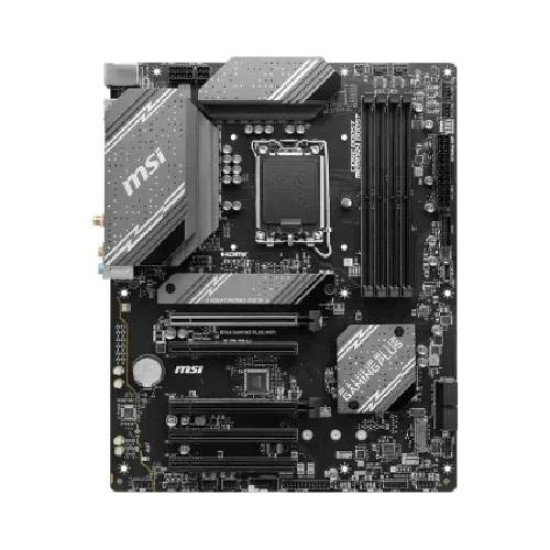

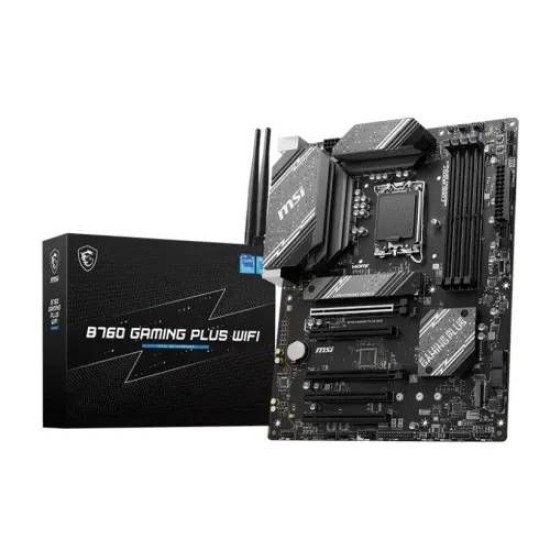

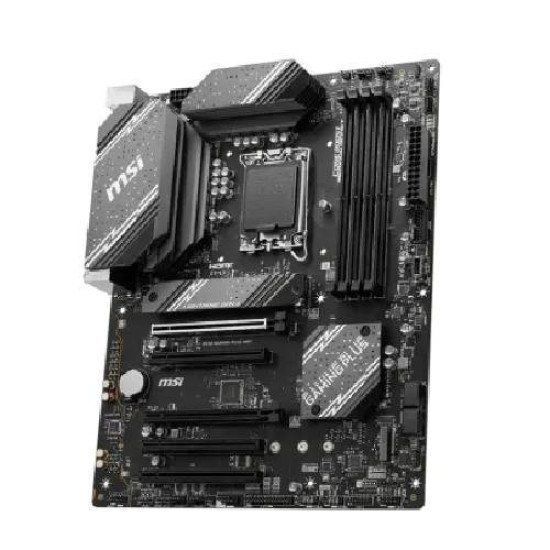

The MSI B760 GAMING PLUS WIFI DDR5 motherboard is engineered for gamers and PC enthusiasts seeking a powerful, reliable, and future-ready foundation for their build. Designed with the Intel® B760 chipset and support for 14th, 13th, and 12th Gen Intel® Core™, Pentium Gold, and Celeron processors, this ATX motherboard delivers exceptional performance and stability for modern gaming, content creation, and multitasking workloads. With the LGA1700 socket, users can take full advantage of the latest Intel processors and cutting-edge platform features. Equipped with DDR5 memory support up to 6800+ MHz (OC) and a maximum capacity of 192GB, the MSI B760 GAMING PLUS WIFI ensures lightning-fast data throughput and smooth system responsiveness. Its advanced dual-channel memory architecture and support for Intel XMP 3.0 allow simple and efficient memory overclocking. For expandability, the motherboard includes five PCIe slots, including a full-speed PCIe 4.0 x16 slot for high-performance graphics cards. Storage capabilities are equally robust with two PCIe 4.0 M.2 slots (one CPU-direct) and four SATA 6Gbps ports, supporting RAID 0/1/5/10 configurations for both speed and data security. Connectivity is a major highlight, featuring Intel Wi-Fi 6E, Bluetooth 5.3, 2.5G LAN, and a versatile selection of USB ports including USB 3.2 Gen2 Type-C. The board also integrates high-quality audio via Realtek ALC897 7.1-channel HD audio, offering immersive sound for gaming and entertainment. Aesthetics and functionality blend seamlessly with RGB headers, multiple fan connectors, EZ Debug LEDs, and a reinforced PCB layout. Whether you're building a high-end gaming system or a powerful workstation, the MSI B760 GAMING PLUS WIFI DDR5 motherboard offers exceptional performance, stability, and expandability to fuel your next-generation PC.
The latest price of MSI B760 GAMING PLUS WIFI DDR5 Intel® B760 Chipset 14th/ 13th/ 12th Gen ATX Motherboard in Bangladesh is 23,000৳ You can buy the MSI B760 GAMING PLUS WIFI DDR5 Intel® B760 Chipset 14th/ 13th/ 12th Gen ATX Motherboard at best price from our Website or visit any of our showrooms.
