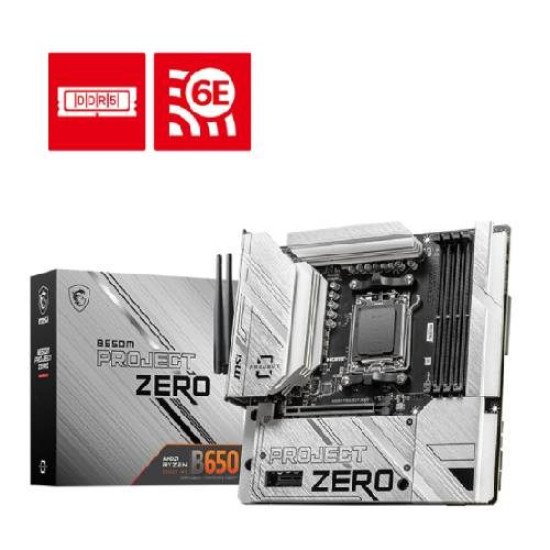

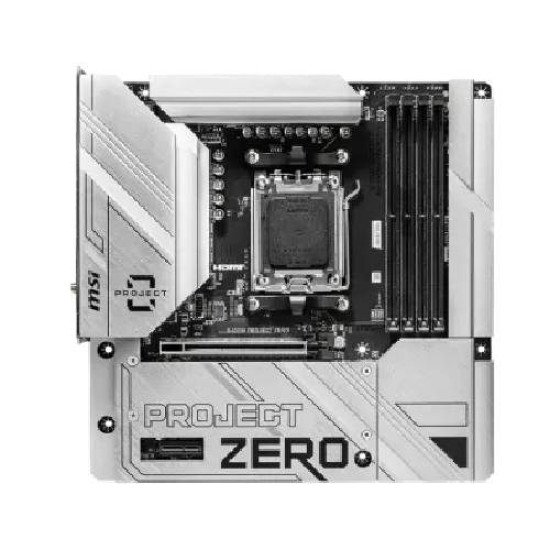

MSI B650M PROJECT ZERO AMD B650 Chipset AM5 mATX Motherboard

Stock: In Stock
Brand: MSI
Model: B650M PROJECT ZERO

Based on 0 reviews. - Write a review

24,990৳

Ex Tax: 24,990৳

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

Key Features

- Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
- Supported RAM: 4x DDR5, up to 7600+(OC) MHz
- Graphics Output: 1x HDMI, 1x Display Port
- Features: Supports Bluetooth 5.3, AMD Wi-Fi 6E

View more details

Basic Information
Supported CPU	Supports AMD Ryzen 9000/ 8000 & 7000 Series Desktop Processors Socket AM5
Chipset	AMD B650
BIOS
Form Factor	mATX 243.84mmx243.84mm
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel
Type	DDR5
Expansion Slots
PCI	1x PCI-E x16 slot • Supports x16 (For Ryzen 7000 Series processors) • Supports x8 (For Ryzen 7 8700G and Ryzen™ 5 8600G processors) • Supports x4 (For Ryzen 5 8500G processor) 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)V PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
M.2 Socket	2x M.2
Memory Specifications
Slots	4
Supported Memory	7600+(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Maximum Memory	128GB
Graphics
Graphics	1x HDMI Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz 1x DisplayPort Support DP 1.4, the maximum resolution of 4K 60Hz
Connector & Ports
HDMI	1x HDMI
RAID	Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices* Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Display Port (s)	1x DisplayPort
USB (s)	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN Port (s)	Realtek RTL8125BG 2.5Gbps LAN
Wireless Communication module	AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3
Supported Storage	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G
Audio	Audio Connectors
Internal I/O Ports	INTERNAL IO 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 4x USB 2.0 ports b 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports BACK PANEL PORTS DisplayPort 2.5G LAN USB 2.0 USB 3.2 Gen 1 5Gbps (Type-A) Wi-Fi / Bluetooth Audio connectors Flash BIOS Button Clear CMOS Button HDMI™ USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-C) USB 3.2 Gen 2x2 20Gbps (Type-C)
TPM (Trusted Platform Module )	1x TPM pin header(Support TPM 2.0)
Warranty Information
Warranty	3 Years

MSI B650M PROJECT ZERO AMD B650 Chipset AM5 mATX Motherboard

The MSI B650M PROJECT ZERO is a modern, high-performance AM5 mATX motherboard designed for builders who want clean aesthetics, strong power delivery, and the latest next-generation hardware support. Featuring the AMD B650 chipset, this board fully supports AMD Ryzen 9000, 8000, and 7000 Series processors, delivering exceptional performance for gaming, content creation, and heavy multitasking. Its compact micro-ATX form factor fits easily into smaller cases while maintaining all the essential connectivity and expansion options. Equipped with four DDR5 memory slots, the motherboard supports speeds up to 7600+ MHz (OC) and capacities up to 128GB, giving users fast and responsive system performance. For storage, it includes two PCIe 4.0 x4 M.2 slots and four SATA 6Gbps ports, providing multiple options for both ultra-fast NVMe SSDs and traditional SATA drives. Gamers and creators will appreciate the PCIe 4.0 x16 slot, ensuring top-tier graphics card compatibility. The MSI B650M PROJECT ZERO also focuses on connectivity and convenience, offering a rich I/O layout including USB 3.2 Gen2x2 Type-C, multiple USB 3.2 Gen2 and Gen1 ports, and a complete set of display outputs like HDMI 2.1 and DisplayPort 1.4, both supporting up to 4K at 60Hz. Network performance is elevated with a Realtek 2.5Gb LAN and built-in Wi-Fi 6E with Bluetooth 5.3, ensuring smooth online gameplay and fast wireless transfers. Audio is powered by the Realtek ALC897 codec, delivering crisp 7.1-channel HD sound. Additional conveniences include the Flash BIOS button, Clear CMOS button, and support for ARGB lighting to enhance your build aesthetics. Overall, this motherboard is an excellent choice for modern PC builders who want performance, connectivity, and clean cable-free design.

Features of MSI B650M PROJECT ZERO AMD B650 Chipset AM5 mATX Motherboard

Advanced Processor Support: Compatible with AMD Ryzen 9000, 8000 & 7000 Series processors for top-tier performance.
High-Speed DDR5 Memory: Supports up to 7600+ MHz (OC) and 128GB capacity for ultra-fast system responsiveness.
Dual PCIe 4.0 M.2 Slots: Enjoy rapid storage speeds for gaming, productivity, and heavy workloads.
Premium Networking: Built-in Wi-Fi 6E, Bluetooth 5.3, and 2.5Gbps LAN ensure fast and stable connectivity.
4K Display Support: HDMI 2.1 and DisplayPort 1.4 provide smooth 4K 60Hz output.
Modern Connectivity: Includes USB 3.2 Gen2x2 Type-C and multiple USB 3.2 and USB 2.0 ports.
Clean Build Layout: PROJECT ZERO design improves cable management and aesthetics.
