| Basic Information | ||
| Supported CPU | Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 | |
| Chipset | AMD B650 | |
| BIOS | ||
| Form Factor | mATX<br> 226mmx243.84mm | |
| Audio | Realtek ALC897 Codec<br> 7.1-Channel High Definition Audio | |
| Type | DDR5 | |
| Expansion Slots | ||
| PCI | 1x PCI-E x16 slot<br> Supports x16/x1<br><br> • Supports x16 (For Ryzen 7000 Series processors)<br> • Supports x8 (For Ryzen 7 8700G and Ryzen 5 8600G processors)<br> • Supports x4 (For Ryzen 5 8500G processor)<br> 1x PCI-E x1 slot<br> PCI_E1 Gen PCIe 3.0 supports up to x1 (F<br>rom Chipset)<br> PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU)<br> | |
| M.2 Socket | 2x M.2 | |
| Memory Specifications | ||
| Slots | 2 | |
| Supported Memory | 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency:<br> • 1DPC 1R Max speed up to 7800+ MHz<br> • 1DPC 2R Max speed up to 6400+ MHz<br> <br> Supports Dual-Channel mode<br> Supports non-ECC, un-buffered memory<br> Supports AMD EXPO<br> | |
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | 1x HDMI<br> Support HDMI 2.1, maximum resolution of 4K 60Hz*<br> 1x DisplayPort<br> Support DP 1.4, maximum resolution of 4K 60Hz*<br> | |
| Motherboard | ||
| Supported Storage | 2x M.2<br> M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices<br> M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices<br> 4x SATA 6G<br> • M2_2 supports PCIe 4.0 x2 speed when Ryzen 5 8500G is installed<br> | |
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices<br> Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices<br> | |
| Display Port (s) | 1x DisplayPort | |
| USB (s) | 2x USB 2.0 (Rear)<br> 4x USB 2.0 (Front)<br> 3x USB 5Gbps Type A (Rear)<br> 1x USB 5Gbps Type C (Rear)<br> 4x USB 5Gbps Type A (Front)<br> | |
| LAN Port (s) | Realtek RTL8125BG 2.5Gbps LAN | |
| Wireless Communication module | AMD Wi-Fi 6E<br> The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3 | |
| Audio | ||
| Internal I/O Ports | INTERNAL IO<br><br> 1x Power Connector(ATX_PWR)<br> 1x Power Connector(CPU_PWR)<br> 1x CPU Fan<br> 3x System Fan<br> 2x Front Panel (JFP)<br> 1x Chassis Intrusion (JCI)<br> 1x Front Audio (JAUD)<br> 2x Addressable V2 RGB LED connector (JARGB_V2)<br> 1x RGB LED connector(JRGB)<br> 4x USB 2.0 ports<br> 4x USB 5Gbps Type A ports<br> <br> BACK PANEL PORTS<br> DisplayPort<br> HDMI<br> USB 3.2 Gen 1 5Gbps (Type-A)<br> 2.5G LAN<br> Wi-Fi / Bluetooth<br> Audio connectors<br> Flash BIOS Button<br> USB 3.2 Gen 1 5Gbps (Type-C)<br> USB 3.2 Gen 1 5Gbps (Type-A)<br> USB 2.0<br> | |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Warranty Information | ||
| Warranty | 3 Years | |

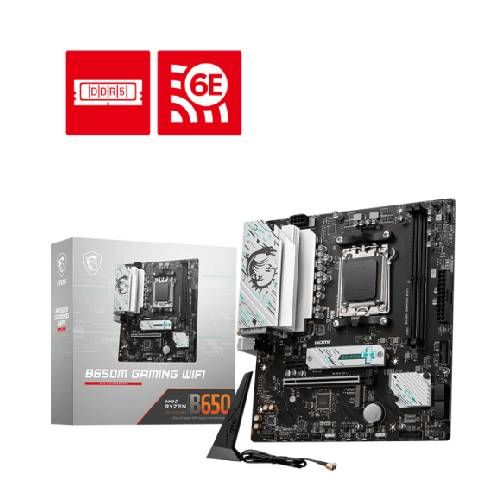

The MSI B650M GAMING WIFI is a powerful and compact mATX motherboard designed for modern gamers, creators, and performance-focused PC builders. Built on the advanced AMD B650 chipset, it supports the newest AMD Ryzen 9000, 8000, and 7000 Series desktop processors, giving you access to fast performance, efficient multitasking, and next-generation gaming capabilities. With two DDR5 memory slots supporting speeds up to 7800+ MHz (OC), the board ensures smooth responsiveness in demanding applications, whether you're gaming, editing videos, or streaming. Its PCIe 4.0 x16 slot and dual PCIe 4.0 M.2 slots provide high-speed connectivity for modern graphics cards and NVMe SSDs, reducing load times and improving overall system performance.n Connectivity is one of the motherboard’s strengths. It includes AMD Wi-Fi 6E for high-speed wireless networking across 2.4GHz, 5GHz, and 6GHz bands, along with 2.5Gbps LAN for low-latency, stable wired internet—ideal for competitive gaming. The rear I/O features multiple USB 3.2 Gen 1 and USB 2.0 ports, an HDMI 2.1 and DisplayPort for high-resolution displays, and convenient Flash BIOS Button support for easy updates. For storage, the board offers two PCIe 4.0 M.2 slots and four SATA 6Gb/s ports, along with RAID support for both NVMe and SATA drives. A 7.1-channel Realtek ALC897 audio system enhances your sound experience, while RGB headers let you customize lighting to match your setup. Compact, powerful, and built for the future, the MSI B650M GAMING WIFI is an excellent foundation for a next-generation gaming or productivity PC.
The latest price of MSI B650M GAMING WIFI AMD B650 Chipset AM5 mATX Motherboard in Bangladesh is 18,500৳ You can buy the MSI B650M GAMING WIFI AMD B650 Chipset AM5 mATX Motherboard at best price from our Website or visit any of our showrooms.
