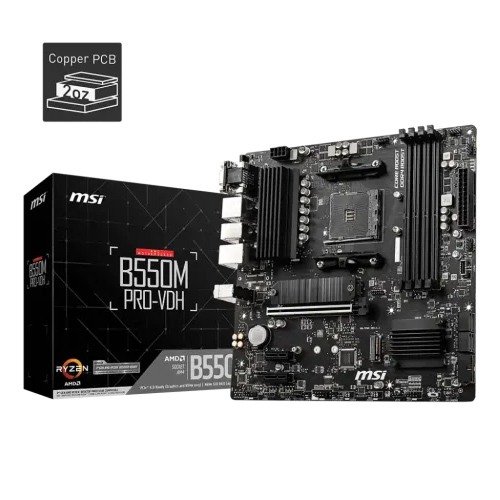

MSI B550M Pro-VDH AMD AM4 DDR4 Micro-ATX Motherboard

Stock: In Stock
Brand: MSI
Model: B550M Pro-VDH

Based on 1 reviews. - Write a review

14,800৳

Ex Tax: 14,800৳

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

Key Features

- Supports AMD Ryzen 5000 & 3000 Series Processors
- PCB with 2OZ Thickened Copper
- Supports DDR4 Memory, up to 4400(OC) MHz
- PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr

View more details

Basic Information
Supported CPU	Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors
Chipset	AMD B550
Form Factor	Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Expansion Slots
PCI	1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 2x PCIe 3.0 x1 slots
M.2 Socket	2x M.2 slots (Key M) M2_1 slot (from AMD Processor) Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices
Graphics
Graphics	1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz
Max Shared Memory	16GB
Memory
Slots	4x DDR4 memory slots
Supported Memory	Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE 1DPC 1R max speed 4400 MHZ 1DPC 2R max speed 3733 MHZ 2DPC 1R max speed 3866 MHZ 2DPC 2R max speed 3466 MHZ Supports non-ECC UDIMM memory Supports ECC UDIMM memory Supports un-buffered memory
Type	Dual-channel memory architecture
Maximum Memory	128GB
Connector & Ports
HDMI	1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz
Display Port (s)	1x DisplayPort supports a maximum resolution of 4096x2160 @60Hz
USB (s)	AMD B550 Chipset 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
LAN Port (s)	1x Realtek 8111HN Gigabit LAN controller
Supported Storage	AMD B550 Chipset 4x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 slot (from AMD Processor) Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices
Audio	Realtek ALC892 Codec 7.1-Channel High Definition Audio
Internal I/O Ports	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 3x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x Chassis Intrusion connector 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 1x Clear CMOS jumper
TPM (Trusted Platform Module )	1 x TPM module connector
Warranty Information
Warranty	03 Years Warranty

MSI B550M Pro-VDH AMD AM4 DDR4 Micro-ATX Motherboard

The MSI B550M Pro-VDH AMD AM4 Micro-ATX Motherboard is a versatile and high-performance solution for gamers, content creators, and PC enthusiasts seeking stability, expandability, and modern features in a compact design. Built on the AMD B550 chipset, it supports AMD Ryzen 5000, 4000G, and 3rd Generation Ryzen processors, ensuring compatibility with a wide range of AM4 desktop CPUs for both gaming and productivity builds. Designed in a Micro-ATX form factor (9.6 x 9.6 inches), this motherboard balances compactness with full functionality, fitting easily into smaller cases while still offering multiple expansion options. It features 1x PCIe 4.0/3.0 x16 slot for high-performance graphics cards and 2x PCIe 3.0 x1 slots for additional add-on cards, while dual M.2 slots provide support for ultra-fast NVMe SSDs, including PCIe 4.0 speeds, alongside four SATA 6Gb/s ports for traditional storage devices. Memory support is robust, with 4x DDR4 DIMM slots allowing up to 128GB of RAM. With A-XMP overclocking, memory speeds can reach 4400+ MHz, offering smooth multitasking and high responsiveness. Integrated graphics output includes HDMI 2.1, DisplayPort, and VGA, supporting up to 4K resolution at 60Hz, ideal for both gaming and professional workloads. Connectivity is modern and flexible, with USB 3.2 Gen 1 (Type-A and Type-C), USB 2.0 ports, Gigabit LAN, and built-in Intel Dual Band Wi-Fi and Bluetooth, providing stable wired and wireless networking. Audio is powered by Realtek ALC892 7.1-Channel HD, delivering clear sound for gaming and media. Additional features include RGB and RAINBOW LED headers for customization, multiple fan headers for effective cooling, a TPM module connector, and strong power delivery for stable operation. Backed by a 3-year warranty, the MSI B550M Pro-VDH delivers excellent performance, reliability, and future-ready connectivity, making it an ideal choice for gamers, PC builders, and professionals. This motherboard combines compact design, high-speed storage, advanced memory support, and modern connectivity for a powerful and flexible AM4 platform.

Features Of MSI B550M Pro-VDH AMD AM4 DDR4 Micro-ATX Motherboard

Supports AMD Ryzen 5000 & 3000 Series Processors: Compatible with AMD Ryzen 5000, 4000G, and 3rd Generation Ryzen desktop CPUs, delivering powerful performance for gaming, content creation, and multitasking.
Micro-ATX Compact Form Factor: Measures 9.6 x 9.6 inches, providing a compact yet fully functional design suitable for small to medium PC builds.
PCIe 4.0 & Lightning Gen4 x4 M.2 Slots: Features 1x PCIe 4.0/3.0 x16 slot and dual M.2 slots, including M.2 Shield Frozr for high-speed storage with improved cooling and stability.
Supports DDR4 Memory up to 4400+ MHz (OC): 4x DIMM slots supporting up to 128GB RAM with A-XMP overclocking for smooth multitasking and high system responsiveness.
Modern Connectivity Options: Includes HDMI 2.1, DisplayPort, USB 3.2 Gen 1 (Type-A & Type-C), USB 2.0, Gigabit LAN, and built-in Intel Dual Band Wi-Fi and Bluetooth for stable wired and wireless networking.
High-Quality Audio: Equipped with Realtek ALC892 7.1-Channel HD Audio codec for clear and immersive sound in games, media, and calls.
Enhanced Cooling & Customization: Multiple fan headers, RGB and RAINBOW LED connectors, TPM module support, and 2OZ thickened copper PCB design ensure stable power delivery, optimized cooling, and system durability.
