Hikvision DS-9664NI-I8 64-Channel 2U 4K NVR

Specification

Certifications
Certifications	FCC : Part 15 Subpart B, ANSI C63.4-2014 CE : EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
DVR / NVR / XVR Specification
Auxiliary Interface	Serial Interface : 1 RS-485 (full-duplex), 1 RS-232, 1 keyboard SATA : 8 SATA interfaces supporting hot-plug ESATA : 1 eSATA interface Capacity : Up to 10TB capacity for each disk Alarm In/Out : 16/4 USB Interface : Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Decoding	Decoding Format : H.265+/H.265/H.264+/H.264/MPEG4 Recording Resolution : 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled. Synchronous Playback : 16-ch Decoding Capability : 1-ch@32 MP (30 fps)/2-ch@12 MP (20fps)/4-ch@8 MP (25fps)/8-ch@4 MP (30fps)/16-ch@1080p (30fps) Dual-Stream Recording : Support Stream Type : Video, Video & Audio Audio Compression : G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM
Network	Remote Connection : 128 Network Protocol : TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS Network Interface : 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Video and Audio	IP Video Input : 64-ch Up to 12 MP resolution *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled. Incoming Bandwidth : 320 Mbps Outgoing Bandwidth : 256 Mbps Incoming Bandwidth (RAID Mode) : 200 Mbps Outgoing Bandwidth (RAID Mode) : 200 Mbps HDMI 1 Output : 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI 2 Output : 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz VGA 1 Output : 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz VGA 2 Output : 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz Video Output Mode : HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output; HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output CVBS Output : 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 Audio Output : 2-ch, RCA (Linear, 1 KΩ) Two-Way Audio : 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
ENVIRONMENTAL
Humidity	10% to 90%
Working Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Ports & Slots
Power Supply	100 to 240 VAC, 50 to 60 Hz
Physical Specification
Weight	≤ 10 kg (22 lb)
Others	Chassis : 3U chassis
Dimension	445 × 465 × 92 mm ( 17.5"× 18.3" × 3.6")
Warranty Information
Warranty	01 year warranty

Description

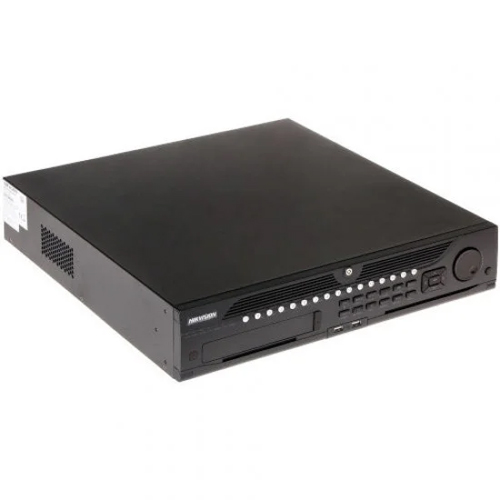

Hikvision DS-9664NI-I8 64-Channel 2U 4K NVR

Dual-OS design to ensure high reliability of system running, up to 64 channel IP cameras can be connected, 12 MP high-definition live view, 320 Mbps high incoming bandwidth ensures IP camera, TCP/IP / DHCP / hik-connect / DNS / DDNS / NTP / SADP / SMTP / NFS / iSCSI / UPnP / HTTPS, 445 x 470 x 90 mm dimension, 10Kg weight without hard disk.

What is the price of Hikvision DS-9664NI-I8 64-Channel 2U 4K NVR?

The latest price of Hikvision DS-9664NI-I8 64-Channel 2U 4K NVR in Bangladesh is 175,000৳ You can buy the Hikvision DS-9664NI-I8 64-Channel 2U 4K NVR at best price from our Website or visit any of our showrooms.
