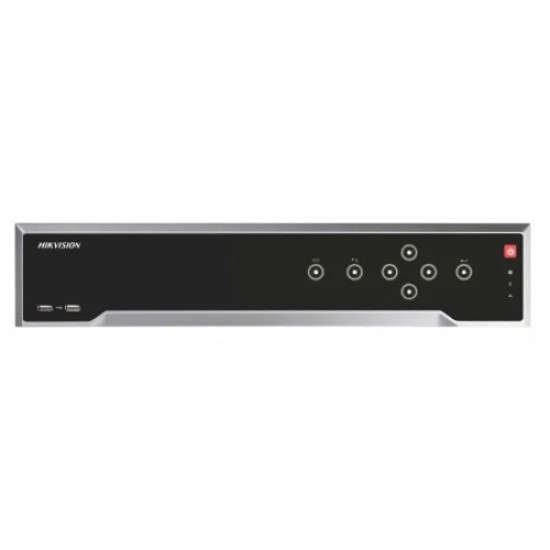

Hikvision DS-8632NI-K8 Embedded 4K NVR

Stock: In Stock
Brand: Hikvision
Model: DS-8632NI-K8
MPN: smart

Based on 0 reviews. - Write a review

81,200৳

Ex Tax: 81,200৳

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

Certifications
Certifications	Obtained Certification : CE, FCC, CB, IC, RCM, KCC, ICE-003 FCC : Part 15 Subpart B, ANSI C63.4-2014 CE : EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
DVR / NVR / XVR Specification
Auxiliary Interface	Serial Interface : RS-232, RS-485, keyboard SATA : 8 SATA interfaces ESATA : 1 eSATA interface Capacity : Up to 8 TB capacity for each disk Alarm In/Out : 16/4 USB Interface : Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Decoding	Decoding Format : H.265+/H.265/H.264+/H.264/MPEG4 Recording Resolution : 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF Synchronous Playback : 16-ch Decoding Capability : 2-ch@8 MP (25 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps) Stream Type : Video, Video & Audio Audio Compression : G.711ulaw/G.711alaw/G.722/G.726
Network	Remote Connection : 128 Network Protocol : TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS Network Interface : 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Video and Audio	IP Video Input : 32-ch Up to 8 MP resolution 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF Incoming Bandwidth : 256 Mbps Outgoing Bandwidth : 160 Mbps HDMI 1 Output : 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz HDMI 2 Output : 1920 × 1080p/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz VGA 1 Output : 1920 × 1080p/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz VGA 2 Output : 1920 × 1080p/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz Video Output Mode : HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output; HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output Audio Output : 2-ch, RCA (Linear, 1 KΩ) Two-Way Audio : 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
ENVIRONMENTAL
Humidity	10 to 90 %
Working Temperature	-10 °C to 55 °C (14 °F to 131 °F)
General
Consumption	≤ 30 W (without HDD)
Ports & Slots
Power Supply	100 to 240 VAC, 50 to 60 Hz
Physical Specification
Weight	≤ 8 kg (17.6 lb)
Dimension	445 × 470 × 94 mm (17.5"× 18.5" × 3.7")
Warranty Information
Warranty	01 year warranty

Hikvision DS-8632NI-K8 Embedded 4K NVR

Professional and Reliable Dual-OS design to ensure high reliability of system running. ANR technology to enhance the storage reliability when the network is disconnected

HD Input

H.265/ H.265+/H.264//H.264+/MPEG4 video formats.Connectable to the third-party network cameras Up to 32 IP cameras can be connected.

Recording at up to 8 MP resolution. Supports live view, storage, and playback of the connected camera at up to 8 MP resolution.

HD Output HDMI1/VGA1 and HDMI2/VGA2 independent outputs provided. HDMI1 Video output at up to 4K (3840 Ã— 2160) resolution

HD Storage Up to 8 SATA interfaces and 1 eSATA interface connectable for recording and backup. Storage space effectively saved by 50% to 70% with the use of H.264+ decoding format.

HD Transmission 2 self-adaptive 10 M/100 M/1000 Mbps network interfaces, and two working modes are configurable: multi-address

and network fault tolerance.

Various Applications

Centralized management of IP cameras, including configuration, information import/export, real-time information display, two-way audio, upgrade, etc.

Connectable to smart IP cameras from Hikvision and the recording, playing back, and backing up of VCA alarms can

be realized.
