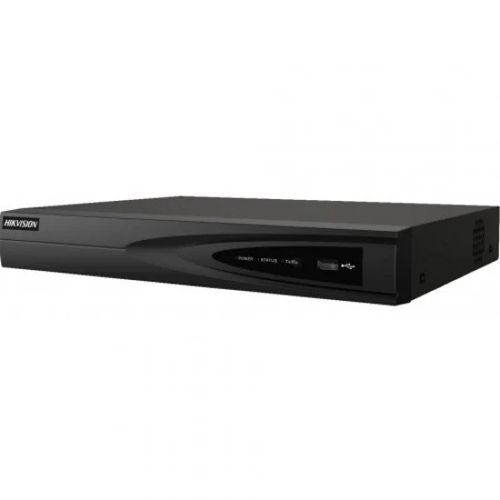

Hikvision DS-7616NI-Q1 16 Channel Network Video Recorder (NVR)

Specification

DVR / NVR / XVR Specification
Auxiliary Interface	USB : 2 × USB 2.0
Display	Interface : HDMI and VGA independent outputs (DS-7608NI-Q1 and DS-7616NI-Q1) Resolution : HDMI output resolution : 1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz VGA output resolution : 1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz Decoding Capacity : 1-ch @ 8 MP / 4-ch @ 1080p/8-ch @ 1080p
Network	nterface : 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface Ethernet Port : 1 Network Function : TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
Playback and Backup	Sync Playback : Yes ( 16-ch )H.265+/H.265/H.264/H.264+ Playback Function : live view, storage, and playback Backup Mode : USB Device/Network
Power	Power Supply : 12 VDC Power Consumption : Power : ≤ 18W Consumption (without hard disk ) : ≤ 10 W
Recording	Compression : H.265+/H.265/H.264/H.264+ Resolution : 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF Record Rate : 160 Mbps
Storage	HDD Mode : 1 SATA interface Up to 6TB capacity for each disk
Video and Audio	IP Camera Input : Up to 16 IP cameras can be connected HDMI/VGA simultaneous output (DS-7604NI-Q1) Two-Way Talk : 1-ch, RCA (2.0 Vp-p, 1 k Ω)
Physical Specification
Weight	disk) ≤ 1 kg (2.2 lb)
Dimension	315 × 240 × 48 mm (12.4" × 9.4" × 1.9")
Warranty Information
Warranty	01 year warranty

Description

Hikvision DS-7616NI-Q1 16 Channel Network Video Recorder (NVR)

It supports H.265+/H.265/H.264/H.264+ video formats. It can be Connectable to the third-party network cameras. Up to 16 IP cameras can be connected HDMI/VGA simultaneous output (DS-7604NI-Q1). Its HDMI and VGA independent outputs (DS-7608NI-Q1 and DS-7616NI-Q1).HDMI Video output at up to 4K (3840 × 2160) resolution. On the other hand, It has1 SATA interface connectable for recording and backup. H.265+ compression effectively reduces the storage space and costs by up to 75%.

FEATURES :

• Up to 16-ch IP camera inputs
• H.265+/H.265/H.264+/H.264 video formats
• Up to 1-ch @ 8MP or 5-ch @ 1080P decoding capacity
• Up to 160 Mbps incoming bandwidth
