| DVR / NVR / XVR Specification | ||
| Auxiliary Interface | Serial Interface : RS-485 (half-duplex)<br> SATA : 2 SATA interfaces<br> Capacity : Up to 10 TB capacity for each disk<br> Alarm In/Out : N/A<br> USB Interface : Front panel: 1 × USB 2.0<br> Rear panel: 1 × USB 3.0<br> | |
| Network | Remote Connection : 128<br> Total Bandwidth : 128 Mbps<br> Network Protocol : TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF<br> Network Interface : 1,<br> | |
| Recording | Video Compression : H.265 Pro+/H.265 Pro/H.265/H.264+/H.264<br> <br> Encoding Resolution : When 1080p lite mode is not enabled: 4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF When 1080p Lite mode is enabled: 4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF<br> <br> Frame Rate : Main stream: When 1080p Lite mode not is enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3 MP stream access: 3<br> MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode is enabled: 4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)<br> <br> Video Bitrate : 32 Kbps to 6 Mbps<br> Dual-Stream : Support<br> Stream Type : Video, Video & Audio<br> Audio Compression : G.711u<br> Audio Bitrate : 64 Kbps<br> | |
| Video and Audio | IP Video Input : 2-ch (up to 34-ch) Enhanced IP mode on: 8-ch (up to 40-ch), each up to 4 Mbps Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras<br> <br> Analog Video Input : 32-ch<br> BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection<br> <br> Incoming Bandwidth : Enhanced IP mode on: 160 Mbps<br> <br> HDTVI Input : 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 *: The 3 MP signal input is only available for channel 1/2/3/4.<br> <br> AHD Input : 4 MP, 1080p25, 1080p30, 720p25, 720p30<br> HDCVI Input : 1080p25, 1080p30, 720p25, 720p30<br> CVBS Input : PAL/NTSC<br> <br> HDMI Output : 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz<br> <br> VGA Output : 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz<br> CVBS Output : 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 Audio Input : 1-ch, RCA (2.0 Vp-p, 1 KΩ) Audio Output : 1-ch, RCA (Linear, 1 KΩ) Two-Way Audio : 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) Synchronous Playback : 16-ch | |
| General | ||
| Power | Power Supply : 12 VDC, 4.5 A | |
| Physical Specification | ||
| Others | Consumption : ≤ 65 W (without HDD)<br> Working Temperature : -10 °C to +55 °C (+14 °F to +131 °F)<br> Working Humidity : 10% to 90% | |
| Dimensions | 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)<br> ≤ 2 kg (4.4 lb) | |
| Warranty Information | ||
| Warranty | 01 year warranty | |

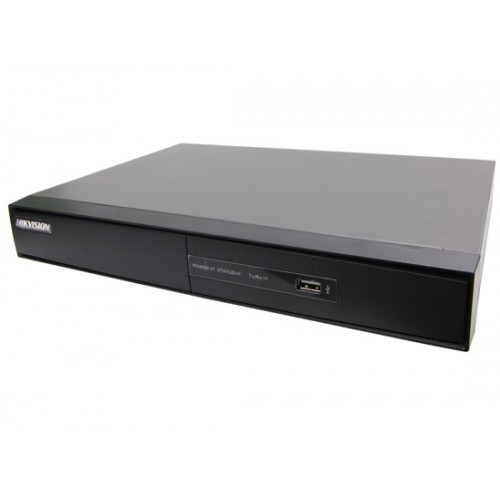

The latest price of HIKVISION DS-7232HQHI-K2 32-CH Turbo HD 1080P DVR in Bangladesh is 40,550৳ You can buy the HIKVISION DS-7232HQHI-K2 32-CH Turbo HD 1080P DVR at best price from our Website or visit any of our showrooms.
