| Recording |
| Video Compression |
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Encoding Resolution |
When 1080p lite mode not enabled: ,4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF, When 1080p Lite mode is enabled: ,4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF, |
| Frame Rate |
Main stream:,When 1080p Lite mode not enabled: ,For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N), For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps, For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N), For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N), When 1080p Lite mode enabled: 4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N), Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N), Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N) |
| Video Bit rate |
32 Kbps to 6 Mbps |
| Dual Stream |
Support |
| Stream Type |
Video, Video & Audio |
| Audio Compression |
G.711u |
| Audio Bitrate |
64 Kbps |
| Video And Audio |
| IP Video Input |
4-ch (up to 12-ch) Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras |
| Analog Video Input |
8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| HDCVI Input |
1080p25, 1080p30, 720p25, 720p30 |
| AHD Input |
4 MP, 1080p25, 1080p30, 720p25, 720p30 |
| CVBS Input |
PAL/NTSC |
| CVBS Output |
1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| VGA/HDMI Output |
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Audio Input |
1-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Audio Output |
1-ch, RCA (Linear, 1 KΩ) |
| Synchronous Playback |
8-ch |
| HDMI Output |
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Two-Way Audio |
Reuse the first audio input |
| HDTVI Input |
1080p25, 1080p30, 720p25, 720p30 |
| Network |
| Remote Connection |
64 |
| Network Protocols |
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Network Interface |
1, RJ45 10M/100M self-adaptive Ethernet interface |
| Auxiliary Interface |
| SATA |
1 SATA interface |
| Capacity |
Up to 10 TB capacity for each disk |
| Alarm In/Out |
N/A |
| USB Interface |
Rear panel: 2 × USB 2.0 |
| Serial Interface |
RS-485 (half-duplex) |
| General |
| Power Supply |
12 VDC, 1.33 A |
| Consumption |
≤ 17 W (without HDD) |
| Working Temperature |
-10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity |
10% to 90% |
| Dimension (W × D × H) |
315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch) |

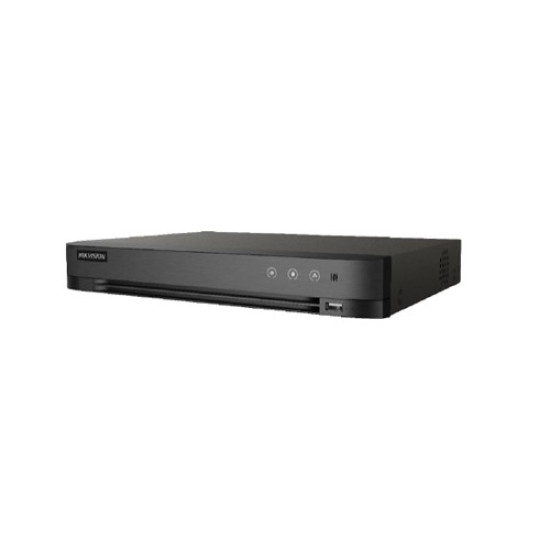

HIKVISION DS-7208HQHI-K1 8-Channel DVR – Advanced Security Recording Solution
The HIKVISION DS-7208HQHI-K1 is a high-performance 8-channel HD TVI DVR designed for modern surveillance systems that require clear video recording, flexible camera compatibility, and efficient storage management. It supports a wide range of input types, including HDTVI, AHD, HDCVI, CVBS, and IP cameras, making it an ideal choice for home, office, shops, and industrial security setups in Bangladesh. This DVR features advanced H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 video compression, significantly reducing file size while preserving crystal-clear image quality. With support for resolutions up to 4MP Lite, 3MP, and 1080p, users get high-definition capture for enhanced monitoring. Whether the 1080p Lite mode is enabled or not, the device provides stable frame rates ranging from 15fps to 30fps, ensuring smooth playback of crucial footage. The DS-7208HQHI-K1 offers dual-streaming, allowing efficient remote viewing on mobile or PC through Hik-Connect. It supports up to 12 IP channels (up to 6MP resolution), giving users the flexibility to expand their system. With one SATA interface supporting up to 10TB of storage, it offers ample recording capacity for long-term video retention. Connectivity options include 1 HDMI output, 1 VGA output, 2 USB 2.0 ports, 1 audio input, and 1 audio output, enabling easy setup and playback. The DVR supports 8-channel synchronous playback, making it simple to review multiple camera feeds simultaneously. For networking, it comes with full protocol support, including TCP/IP, DHCP, DDNS, iSCSI, HTTPS, ONVIF, and more, ensuring compatibility with modern systems. Its durable build, low power consumption (≤17W without HDD), and wide temperature tolerance make it reliable in various environments. The HIKVISION DS-7208HQHI-K1 is an excellent choice for users seeking a powerful, flexible, and efficient DVR for professional surveillance needs.
Key Features of HIKVISION DS-7208HQHI-K1 8-CH 1080P HD TVI DVR
- Advanced Video Compression: Supports H.265 Pro+, H.265 Pro, H.265, H.264+, and H.264 formats for efficient storage and high-quality recording.
- Flexible Encoding Resolution: Offers 4MP Lite, 3MP, 1080p, 720p, VGA, WD1, 4CIF, and CIF resolutions; 1080p Lite mode enhances frame compatibility.
- Smooth Frame Rates: Provides stable recording with up to 25fps/30fps depending on resolution and PAL/NTSC standards.
- Dual Streaming Support: Enables optimized live view and recording through main stream and sub-stream options.
- Wide Video Input Compatibility: Includes 8-channel analog input, HDTVI, AHD, HDCVI, CVBS, and IP camera support (up to 12 channels, 6MP).
- Crystal-Clear Output: Features HDMI and VGA outputs up to 1920×1080@60Hz for high-definition monitoring.
- Audio Integration: Comes with G.711u audio compression, 1 RCA input, 1 RCA output, and two-way audio using the first audio input.
- Large Storage Capacity: 1 SATA interface with support for up to 10TB HDD ensures long-term video retention.
- Strong Networking Options: Supports TCP/IP, DHCP, DDNS, Hik-Connect, HTTPS, ONVIF, and more, making remote access seamless.
- High Remote Access Capability: Allows up to 64 remote connections at once for multi-user monitoring.
