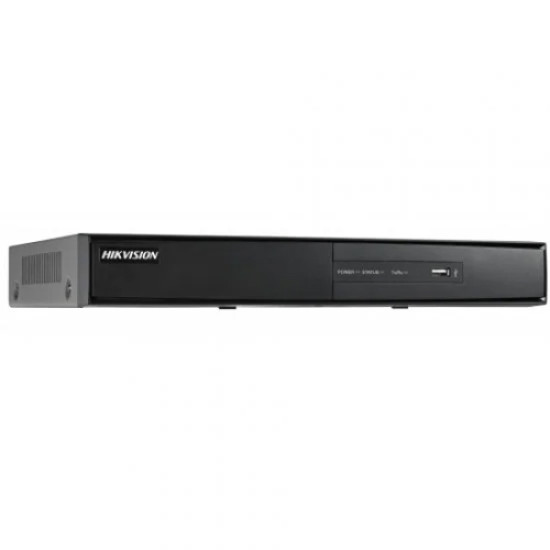

HIKVISION DS-7204HQHI-K1 4-CH Turbo HD 1080P DVR

Specification

DVR / NVR / XVR Specification
Auxiliary Interface	SATA : 1 SATA interface Capacity : Up to 10 TB capacity for each disk Alarm In/Out : N/A USB Interface : 2 × USB 2.0 Serial Interface : RS-485 (half-duplex)
Network	Remote Connections : 32 Network Protocols : TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF Network Interface : 1, RJ45 10M/100M self-adaptive Ethernet interface
Recording	Video Compression : H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 Encoding Resolution : When 1080p lite mode is not enabled: ,4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF,When 1080p Lite mode is enabled: ,4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF, Frame Rate : Main stream:,When 1080p Lite mode not enabled: ,For 4 MP stream access:,4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) ,For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps,For 1080p stream access: ,1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),When 1080p Lite mode enabled: ,4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),Sub-stream: ,WD1/4CIF@12fps; CIF@25fps (P)/30fps (N),Sub-stream: ,WD1/4CIF@12fps; CIF@25fps (P)/30fps (N), Video Bit Rate : 32 Kbps to 6 Mbps Dual Stream : Support Stream Type : Video, Video & Audio Audio Compression : G.711u Audio Bit Rate : 64 Kbps
Video and Audio	IP Video Input : 2-ch (up to 6-ch) Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras Analog Video Input : 4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection AHD Input : 4 MP, 1080p25, 1080p30, 720p25, 720p30 HDCVI Input : 1080p25, 1080p30, 720p25, 720p30 CVBS Input : PAL/NTSC Audio Input : 1-ch, RCA (2.0 Vp-p, 1 KΩ) Audio Output : 1-ch, RCA (Linear, 1 KΩ) Two-Way Audio : 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) Synchronous Playback : 4-ch HDTVI Input : 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25,*: The 3 MP signal input is only available for channel 1 of DS-7204HQHI-K1, for channel 1/2 of DS-7208HQHI-K1, and for channel 1/2/3/4 of DS-7216HQHI-K1., VGA/HDMI Output : 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz CVBS Output : 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
General
Power	Power Supply : 12 VDC
Physical Specification
Others	Working Temperature : -10 °C to +55 °C (+14 °F to +131 °F) Working Humidity : 10% to 90% Weights (Without HDD) : ≤ 1.16 kg (2.6 lb) Consumption (Without HDD) : ≤ 6 W
Dimensions	315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
Warranty Information
Warranty	01 year warranty

Description

HIKVISION DS-7204HQHI-K1 4-CH Turbo HD 1080P DVR

HIKVISION DS-7204HQHI-K1 is a 4 channels and 1 HDD 1U Turbo HD 1080P DVR. It supports Efficient H.265 pro+ compression technology. It features Encoding ability up to 1080p @ 15 fps. It supports 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP). Up to 6 network cameras can be connected and Transmit both HDTVI video and power over the same coaxial cable. Support access by EZVIZ Cloud P2P.

FEATURES:

• 4 channels and 1 HDD 1U DVR
• Efficient H.265 pro+ compression technology
• Encoding ability up to 1080p @ 15 fps
• 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
• Up to 6 network cameras can be connected

What is the price of HIKVISION DS-7204HQHI-K1 4-CH Turbo HD 1080P DVR?

The latest price of HIKVISION DS-7204HQHI-K1 4-CH Turbo HD 1080P DVR in Bangladesh is 8,400৳ You can buy the HIKVISION DS-7204HQHI-K1 4-CH Turbo HD 1080P DVR at best price from our Website or visit any of our showrooms.
