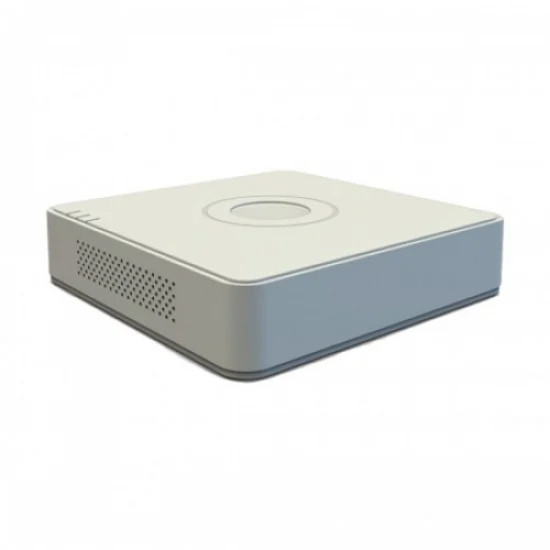

Hikvision DS-7108HQHI-K1 08 Channel HD 1080p Turbo HD DVR

Specification

DVR / NVR / XVR Specification
Auxiliary Interface	SATA : 1 SATA interface Capacity : Up to 6 TB capacity for each disk Alarm In/Out : N/A USB Interface : Real panel: 2 × USB 2.0
Network	Total Bandwidth : 96 Mbps Remote Connection : 64 Network Protocol : TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF Network Interface : 1, RJ45 10M/100M self-adaptive Ethernet interface
Recording	Video Compression : H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 Encoding Resolution : When 1080p Lite mode is not enabled: 4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode is enabled: 4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF Frame Rate : Main stream: When 1080p Lite mode is not enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode is enabled: 4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N) Video Bitrate : 32 Kbps to 6 Mbps Dual-Stream : Support Stream Type : Video, Video & Audio Audio Compression : G.711u Audio Bitrate : 64 Kbps
Video and Audio	IP Video Input : 2-ch (up to 10-ch) Enhanced IP mode on: 4-ch (up to 12-ch), each up to 4 Mbps Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras Incoming Bandwidth : 48 Mbps Analog Video Input : 8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection HDTVI Input : 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60 *: The 3 MP signal input is only available for channel 1 of DS-7104HQHI-K1. AHD Input : 4 MP, 1080p25, 1080p30, 720p25, 720p30 HDCVI Input : 4 MP, 1080p25, 1080p30, 720p25, 720p30 CVBS Input : Support VGA Output : 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI Output : 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz Audio Input : 1-ch, RCA (2.0 Vp-p, 1 KΩ) 8-ch via coaxial cable Audio Output : 1-ch, RCA (Linear, 1 KΩ) Two-Way Audio : 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) Synchronous Playback : 8-ch
General
Power	Power Supply : 12 VDC, 1.33 A
Physical Specification
Others	Consumption : ≤ 12 W Working Temperature : -10 °C to +55 °C (+14 °F to +131 °F) Working Humidity : 10% to 90%
Dimensions	200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch) ≤ 1 kg (2.2 lb)
Warranty Information
Warranty	01 year warranty

Description

Hikvision DS-7108HQHI-K1 08 Channel HD 1080p Turbo HD DVR

Hikvision DS-7108HQHI-K1 08 Channel Support H.265 Pro+/H.265 Pro/H.265 video compression. Support HDTVI/AHD/CVI/CVBS/IP video input. Max 6/12/24 IP cameras input (up to 6 MP). Max. 800 m for 1080p and 1200 m for 720p HDTVI signal transmission. Up to 6TB capacity per HDD.

FEATURES:

• 8 channels and 1 HDD mini size DVR
• Efficient H.265 pro+ compression technology
• Encoding ability up to 1080p @ 15 fps
• 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
• Up to 12 network cameras can be connected

What is the price of Hikvision DS-7108HQHI-K1 08 Channel HD 1080p Turbo HD DVR?

The latest price of Hikvision DS-7108HQHI-K1 08 Channel HD 1080p Turbo HD DVR in Bangladesh is 10,050৳ You can buy the Hikvision DS-7108HQHI-K1 08 Channel HD 1080p Turbo HD DVR at best price from our Website or visit any of our showrooms.
