Hikvision DS-3E0326P-E/M(B) 24 Port Fast Ethernet Unmanaged POE Switch

specification

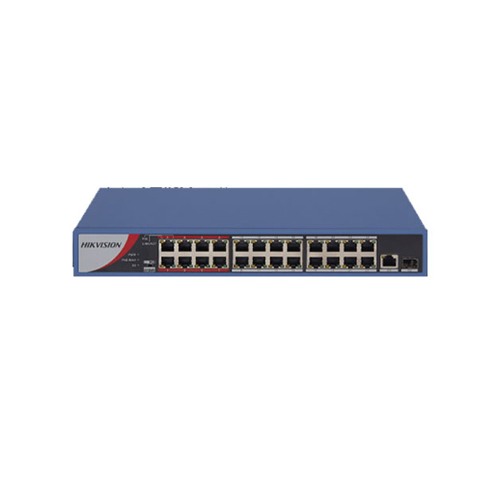

Hikvision DS-3E0326P-E/M(B) 24 Port Fast Ethernet Unmanaged POE Switch

Hikvision DS-3E0326P-E/M(B) is a versatile 24-port Fast Ethernet unmanaged PoE switch, designed to provide robust connectivity and power solutions for a variety of network applications. This switch is particularly ideal for environments requiring reliable connections for multiple devices, such as IP cameras, wireless access points, and VoIP phones.
Equipped with 24 PoE ports, each capable of delivering up to 30 W of power, the DS-3E0326P-E/M(B) supports a total PoE power budget of 230 W. This allows for the simultaneous powering of numerous devices without the need for additional power sources, streamlining installation and reducing cable clutter. Additionally, the switch features one gigabit RJ45 port and one gigabit fiber optical port, providing high-speed connectivity options for data-intensive applications.
The switch adheres to IEEE networking standards, including IEEE 802.3, IEEE 802.3u, and IEEE 802.3x, ensuring compatibility with a wide range of devices. With a MAC address table capacity of 4,000 entries and an internal cache of 2.75 Mbits, it efficiently manages network traffic, enhancing overall performance. The switching capacity of 8.8 Gbps and a packet forwarding rate of 6.547 million packets per second (Mpps) ensure smooth data transmission across the network.
Designed for durability, the DS-3E0326P-E/M(B) operates within a temperature range of -10 °C to 55 °C (14 °F to 131 °F) and can withstand storage temperatures of -40 °C to 85 °C (-40 °F to 185 °F). Its compact dimensions (335 mm × 44.5 mm × 226 mm) make it easy to install in various settings, whether desk-mounted or wall-mounted.
With its combination of advanced features, ease of use, and robust performance, the Hikvision DS-3E0326P-E/M(B) is an excellent choice for enhancing your network capabilities, providing both power and data connectivity in a single, efficient package.
