Network Parameters
|
|
Ports
|
8 × 10/100 Mbps PoE port,2 × 10/100 Mbps RJ45 port
|
|
MAC Address Table
|
2 K
|
|
Switching Capacity
|
1.6 Gbps
|
|
Packet Forwarding Rate
|
1.19 Mpps
|
|
Internal Cache
|
768 Kbits
|
|
PoE Power Supply
|
|
PoE Power Pin
|
End-span: 1/2(-), 3/6(+)
|
|
PoE Port
|
PoE: Ports 1 to 8
|
|
PoE Power Budget
|
60 W
|
|
General
|
|
Shell
|
Metal material, fan-free design
|
|
Net Weight
|
0.29 kg (0.65 lb)
|
|
Gross Weight
|
0.84 kg (1.85 lb)
|
|
Dimensions (W × H × D)
|
170.00 mm × 27.60 mm × 93.10 mm (6.69'' × 1.09'' × 3.67'')
|
|
Operating Temperature
|
0 °C to 40 °C (32 °F to 104 °F)
|
|
Storage Temperature
|
-40 °C to 85 °C (-40 °F to 185 °F)
|
|
Operating Humidity
|
5% to 95% (no condensation)
|
|
Relative Humidity
|
5% to 95% (no condensation)
|
|
Power Supply
|
48 V DC, 1.35 A
|
|
Max. Power Consumption
|
65 W
|
|
Power Consumption in Idle
|
2.8 W
|
|
Installation Mode
|
Desk-Mounted,Wall-Mounted
|
|
Surge Protection
|
2 kV
|
|
Approval
|
|
EMC
|
CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3:
2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
|
|
Safety
|
CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
|
|
Chemistry
|
CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
|

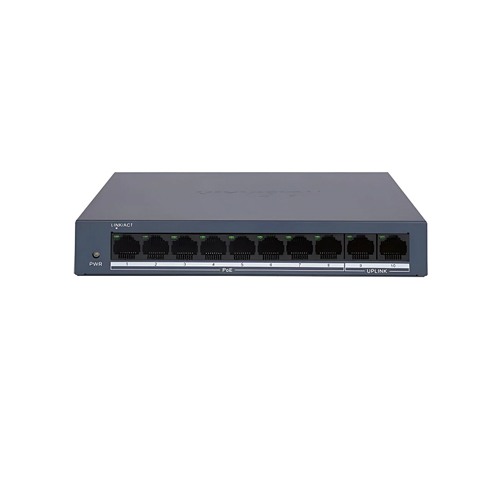

Hikvision DS-3E0110MP-E/M 8 Port Fast Ethernet Unmanaged POE Switch
Hikvision DS-3E0110MP-E/M is an advanced 8-port Fast Ethernet unmanaged PoE switch that combines efficiency, flexibility, and robust performance for your networking needs. Designed for both home and small to medium-sized business environments, this switch offers an impressive array of features that streamline network connectivity and power management.
Equipped with eight 10/100 Mbps PoE ports and two additional 10/100 Mbps RJ45 ports, the DS-3E0110MP-E/M provides ample connectivity for a variety of devices, including IP cameras, wireless access points, and VoIP phones. The switch supports a PoE power budget of 60 W, enabling you to power multiple devices simultaneously, all while maintaining a sleek and compact design.
With a switching capacity of 1.6 Gbps and a packet forwarding rate of 1.19 million packets per second (Mpps), this switch ensures rapid data transfer and efficient handling of network traffic. Its internal cache of 768 Kbits enhances performance, making it a reliable choice for demanding applications.
Constructed with a sturdy metal shell and a fan-free design, the DS-3E0110MP-E/M operates quietly, making it suitable for various environments without adding noise pollution. It is designed for easy installation, supporting both desk-mounted and wall-mounted configurations to fit seamlessly into your workspace.
The switch is built to withstand a range of operating conditions, with an operating temperature range of 0 °C to 40 °C (32 °F to 104 °F) and a storage temperature range of -40 °C to 85 °C (-40 °F to 185 °F). Additionally, it features surge protection up to 2 kV, ensuring the safety of connected devices.
With its combination of advanced features, durability, and ease of use, the Hikvision DS-3E0110MP-E/M is the perfect solution for anyone looking to enhance their network infrastructure.
