Specification
| Key Features |
| Video Compression |
H.265;H.264;MJPEG |
| Generel information |
| Audio Bitrate |
32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC) |
| Audio Compression |
G.711,G.722.1,G.726,MP2L2,PCM,AAC-LC |
| Image Sensor |
[Bullet channel]: 1/3" Progressive Scan CMOS; [PTZ channel]: 1/2.8" progressive scan CMOS |
| Min. Illumination |
[Bullet channel]: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light; [PTZ channel]: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR |
| Operating Conditions |
-30℃ to 65℃ (-22°F to 149°F) ;humidity lower than 90%RH |
| Power |
12VDC, PoE+ |
| Power Consumption |
Max. 24 W, including max. 2.6 W for heater and max. 11 W for supplement light |
| Shutter Speed |
1 s to 1/30,000 s |
| Video Bitrate |
32 kbps to 16384 kbps |
| Physical Information |
| Dimension |
Ø 166 mm × 375 mm (Ø 6.5" × 14.7") |
| Weight |
Approx. 2.4 kg (13.2 lb.) |
| Audio and Video |
| Audio Input |
1 alarm output |
| Audio Output |
1 audio output, line level, impedance: 600 Ω |

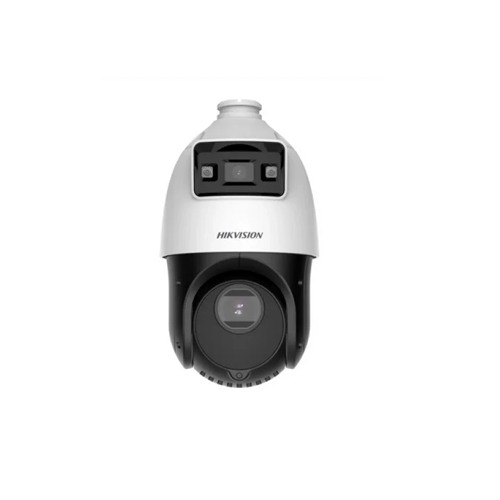

Hikvision DS-2SE4C425MWG-E 4 MP TandemVu 25× IR Network Speed PTZ Dome Cemara
Hikvision DS-2SE4C425MWG-E is a state-of-the-art 4 MP TandemVu 25× IR Network Speed PTZ Dome Camera designed for comprehensive outdoor surveillance. This advanced camera features a dual-lens system, combining a PTZ channel with a bullet channel, allowing it to capture expansive areas while maintaining high detail. With a maximum resolution of 1920 x 1080, it ensures clear and sharp images, making it suitable for various security applications.
Equipped with a 25x optical zoom and a 4.8 to 120 mm lens, the PTZ channel provides exceptional flexibility for monitoring distant subjects, while the bullet channel features a 2.8 mm lens for broader coverage. The camera excels in low-light conditions, with a minimum illumination of 0.0005 Lux for the bullet channel and 0.005 Lux for the PTZ channel in color mode, ensuring reliable performance even in darkness. Additionally, it features IR illumination for night vision, with a range of up to 100 meters.
The Hikvision DS-2SE4C425MWG-E is built to withstand harsh environmental conditions, operating effectively in temperatures ranging from -30°C to 65°C and humidity levels below 90%. Its robust design includes IP66 protection, ensuring durability against dust and water ingress.
With advanced features such as Wide Dynamic Range (WDR), Digital Noise Reduction (DNR), and privacy masking, this camera enhances image quality and security. It supports multiple video compression formats, including H.265 and H.264, optimizing bandwidth usage without compromising quality. The camera also includes audio capabilities, allowing for two-way communication.
Overall, the Hikvision DS-2SE4C425MWG-E is an ideal solution for those seeking a reliable, high-performance surveillance camera that combines versatility, durability, and advanced imaging technology.
