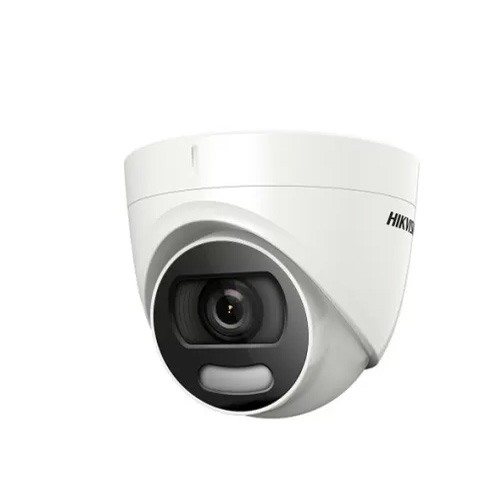

HikVision DS-2CE71D0T-PIRL 2 MP PIR Turret CC Camera

HikVision DS-2CE71D0T-PIRL 2 MP PIR Turret CC Camera

The HikVision DS-2CE71D0T-PIRL 2 MP PIR Turret CC Camera stands as a sophisticated and reliable surveillance solution, combining cutting-edge technology with a robust design. With dimensions of Ø 109.8 mm × 89.75 mm (Φ 4.32″ × 3.53″), this turret camera delivers comprehensive coverage and discreet monitoring capabilities, making it an ideal choice for a variety of security applications. Designed to operate in diverse environments, the camera thrives in temperature extremes from -40 °C to 60 °C (-40 °F to 140 °F) with a humidity tolerance of 90% or less (non-condensing). This ensures consistent performance in challenging weather conditions, making it suitable for both indoor and outdoor installations. The camera's versatile pan, tilt, and rotation capabilities offer a complete 360° view horizontally (pan), 0° to 75° tilt for vertical adjustment, and a full 360° rotation. This adaptability ensures optimal positioning and coverage for varied surveillance scenarios. Powered by a 12 VDC ±25% power supply, the camera is energy-efficient, consuming a maximum of 4 W. Weighing 310 g (0.68 lb.), it is lightweight yet durable, simplifying installation and enhancing overall system flexibility. Equipped with a 2.0-megapixel progressive scan CMOS image sensor, the camera delivers high-resolution images with an electronic shutter speed ranging from PAL: 1/25 s to 1/50,000 s, and NTSC: 1/30 s to 1/50,000 s. The infrared (IR) capabilities extend up to 20m, providing clear and detailed surveillance during low-light or nighttime conditions. Featuring a 2.8 mm, 3.6 mm fixed focal lens, the camera offers versatile viewing angles. The M12 mount type facilitates easy lens customization, catering to specific surveillance needs. In terms of video performance, the camera supports a frame rate of PAL: 1080p@25fps and NTSC: 1080p@30fps, delivering high-definition video output. The switchable HD analog output ensures compatibility with various surveillance systems. Backed by a 01-year warranty, the HikVision DS-2CE71D0T-PIRL 2 MP PIR Turret CC Camera represents a reliable and advanced solution for comprehensive security monitoring, providing peace of mind for users seeking effective and dependable surveillance capabilities.

HikVision DS-2CE71D0T-PIRL 2 MP PIR Turret CC Camera Features

• Dimensions and Construction: The camera boasts a compact design with dimensions of Ø 109.8 mm × 89.75 mm (Ø 4.32″ × 3.53″). Its sturdy build ensures durability in various environments, making it suitable for both indoor and outdoor use.
• Operating Conditions: The camera is designed to operate in a wide temperature range, from -40 °C to 60 °C (-40 °F to 140 °F), with humidity tolerance up to 90% (non-condensation). This ensures reliable performance in diverse weather conditions.
• Pan/Tilt/Rotation: The camera provides versatile coverage with pan capability from 0° to 360°, tilt from 0° to 75°, and a full rotation range of 0° to 360°. This flexibility allows users to precisely adjust the camera's field of view.
• Power Supply and Consumption: The camera operates on a 12 VDC power supply with a ±25% tolerance. With a maximum power consumption of 4 W, it offers energy efficiency without compromising performance.
• Weight: Weighing 310 g (0.68 lb.), the camera is lightweight and easy to install, ensuring convenient deployment in a variety of surveillance setups.
• Electronic Shutter Speed: The camera features an electronic shutter speed that adapts to different lighting conditions. For PAL, it ranges from 1/25 s to 1/50,000 s, and for NTSC, it ranges from 1/30 s to 1/50,000 s.
• Image Sensor: Equipped with a 2.0-megapixel progressive scan CMOS image sensor, the camera captures high-resolution images for detailed surveillance.
• Infrared (IR) Distance and Minimum Illumination: The camera offers an IR distance of 20m, providing clear visibility in low-light or complete darkness. The minimum illumination in color is 0.01 Lux @ (F1.2, AGC ON), and it switches to 0 Lux with IR for effective nighttime monitoring.
• Lens Details: The camera features a fixed focal lens with options of 2.8 mm or 3.6 mm, offering flexibility in choosing the appropriate field of view. The lens type is M12.
• Video Features: The camera incorporates an IR cut filter for accurate day/night functionality. It supports a frame rate of PAL: 1080p@25fps and NTSC: 1080p@30fps, delivering smooth and clear video footage. The resolution is 1920 (H) × 1080 (V), and the video output is through 1 HD analog output.
• Warranty Information: The camera is backed by a 1-year warranty, providing users with confidence in the reliability and performance of the product.

In summary, the HikVision DS-2CE71D0T-PIRL 2 MP PIR Turret CC Camera offers a comprehensive set of features, including robust construction, flexible pan/tilt/rotation capabilities, efficient power management, high-resolution imaging, and reliable day/night functionality, making it a versatile choice for surveillance applications.
